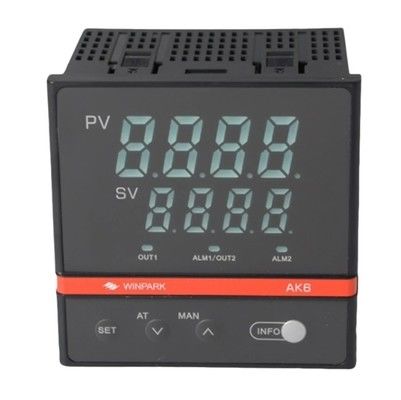

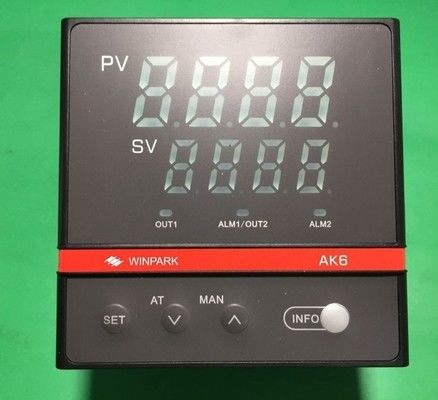

Winpark AK6-AKL800-C322R AK6 Series Intelligent Temperature Controller with LED Display

Winpark AK6-AKL800-C322R AK6 Series Intelligent Temperature Controller with LED Display

Product Introduction

The Winpark AK6-AKL800-C322R is an intelligent temperature controller from the AK6 Series, designed for precise temperature regulation in industrial applications. Featuring an easy-to-read LED display, this controller combines cost-effectiveness with high performance, boasting a sleek design by renowned design firms. It offers reliable control accuracy and strong anti-interference capabilities, making it suitable for diverse industries such as extrusion, packaging, rubber, biological engineering, and chemical processing.

Product Features

Compact & Versatile Design:

Available in multiple standard sizes (48×48mm, 48×96mm, 96×48mm, 72×72mm, 96×96mm) to fit various instrument panels.

Wide Range of Input Signals:

Supports K, E, J, N, W3-25, W5-26 thermocouples, PT100, and CU50 resistance temperature detectors.

Stable Power Supply:

Operates on a universal 85~260VAC input, ensuring compatibility with global power systems.

Flexible Output Options:

Main outputs: Relay, logic level, analog signal (4-20mA/0-5V), thyristor phase shift/zero-crossing trigger, 30A relay, thyristor direct drive, isolated analog output.

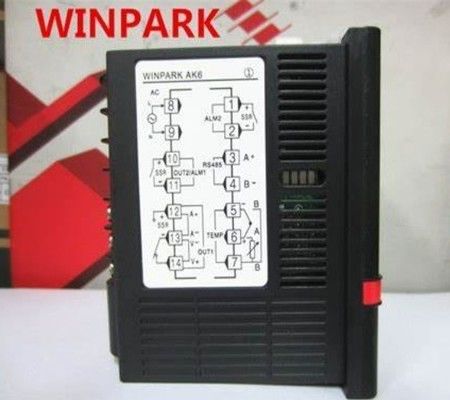

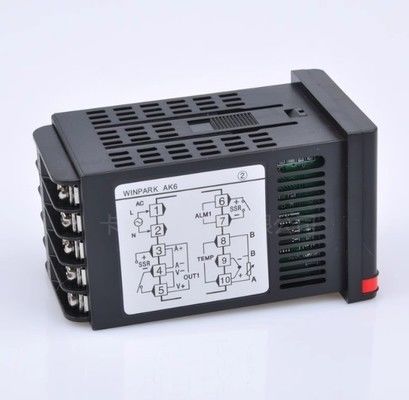

Alarm outputs: Configurable with 0–2 relays, logic levels, or a combination (see wiring diagram for details).

High Accuracy & Anti-Interference:

Precise temperature control with robust anti-interference design for stable operation in harsh industrial environments.

International Certifications:

Complies with CE, CCC, and ISO9001 standards, ensuring quality and safety.
