Name: Honeywell Auto Recycle Pressuretrol with 10-150 psi Pressure Range SPDT Snap-Acting Switch and Stainless Steel Diaphragm
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: L404F1102/U
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

Honeywell Auto Recycle Pressuretrol with 10-150 psi Pressure Range SPDT Snap-Acting Switch and Stainless Steel Diaphragm

Honeywell Recycle Pressuretrol

Auto Recycle Pressuretrol

Brand Name:

Honeywell

Certification:

Model Number:

L404F1102/U

Request A Quote

Honeywell Auto Recycle Pressuretrol with 10-150 psi Pressure Range SPDT Snap-Acting Switch and Stainless Steel Diaphragm

Product Details

Package Dimensions:

‎ 12 X 12 X 6 Inches; 1 Pounds

Item Model Number ‏:

L404F1102/U

Manufacturer:

Honeywell

Country Of Origin:

United States

Highlight:

Honeywell Recycle Pressuretrol

Auto Recycle Pressuretrol

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell GSS Series EN50041 and EN50047 Standards Safety Switch with Positive Opening Normally Closed Contacts and UL CSA CE SIL3 Certification

Get Best Price

Honeywell Model LC Digital Force Indicator with 50,000 lb Range Stainless Steel Diaphragm and Peak Capture Feature

Get Best Price

Dwyer Series 2000 Industrial Pressure Gauge with ±2% Accuracy, IP67 Enclosure Rating, and 4" Dial Face

Get Best Price

Dwyer AtmosphereGuard RHP Humidity/Temperature Transmitter with Dual-Parameter Sensing, Wide Power Input Range, and User-Friendly LCD Display

Get Best Price

Contact Now

Product Description

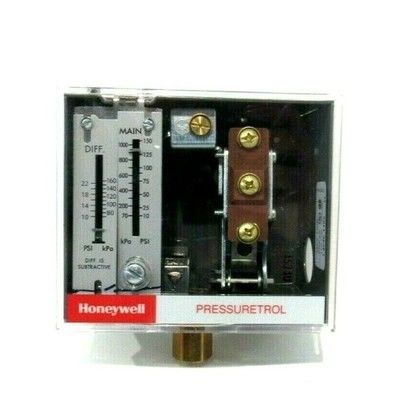

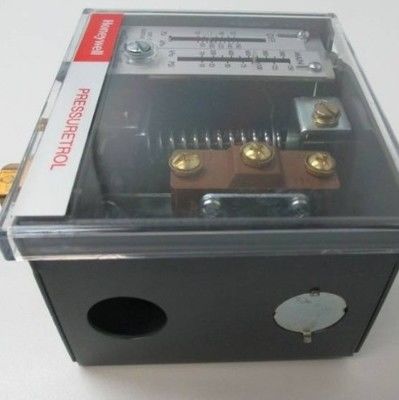

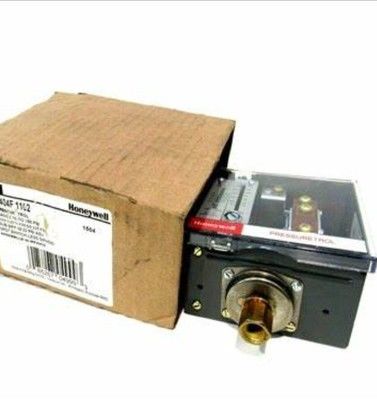

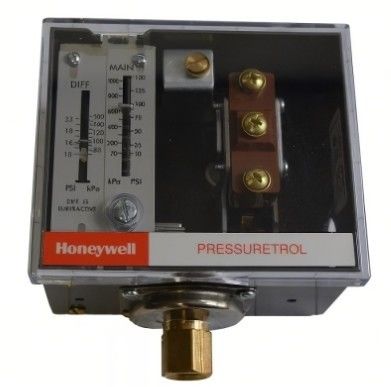

Honeywell L404F1102/U Auto Recycle Pressuretrol

The Honeywell L404F1102/U Auto Recycle Pressuretrol is a robust pressure control device designed for precise monitoring and regulation of pressure systems. With an operating temperature range of -35°F to 150°F and a pressure range of 10-150 psi, it suits applications involving steam, air, non-combustible gases, or non-corrosive fluids. Featuring snap-acting switching and adjustable differentials, this pressuretrol ensures reliable circuit control in industrial and commercial setups, combining durability with easy installation and operation.

Product Features

Versatile Media Compatibility: Suitable for steam, air, non-combustible gases, and fluids non-corrosive to the stainless steel pressure-sensing diaphragm.
Precise Pressure Control: Adjustable pressure range: 10-150 psi (69-1034 kPa) with a maximum sustained pressure of 225 psi (1151 kPa). Subtractive differential pressure range: 10-22 psi (60-152 kPa), configurable via top-case screws.
Reliable Switching Action: SPDT snap-acting switch opens or closes circuits on pressure rise, with auto-recycle functionality for continuous operation.
Wide Environmental Adaptability: Operates in temperatures from -35°F to 150°F (-37°C to 66°C), suitable for harsh or varied climates.
Easy Installation & Mounting: 1/4-inch NPT internal pipe thread or surface mounting through the case base. Ground screw terminal and screw-type electrical connections for simple wiring.
Safety & Certification: Underwriters Laboratories (UL) Listed (File No. MP466, Guide No. MBPR). CSA Certified (File No. LR1620, Guide No. 400-E-O).

Product Specifications

Application	Provide control of steam, air, non-combustible gases or non-corrosive fluids
Dimensions	4-31/32 in. high x 4-1/2 in. wide x 2-3/4 in. deep (126 mm high x 114 mm wide x 70 mm deep)
Mounting	1/4 in. NPT internal thread or surface mount through back of case
Approvals	Underwriters Laboratories Inc. Listed: File No. MP466, Guide No. MBPR CSA Certified: File No. LR1620, Guide No. 400-E-O Swiss RE: Acceptable
Electrical Connections	Screw terminals
Contact Ratings	120 Vac Switch Contact: 8.0 AFL, 48.0 ALR, 10.0 A resistive 240 Vac Switch Contact: 5.1 AFL, 30.6 ALR, 5.0 A resistive
Operating Temperature Range	-35°F to +150°F (-37°C to +66°C)
Sensor Element	Stainless Steel diaphragm
Operating Range	10 to 150 psi; 225 psi - Maximum Sustained (69 to 1034 kPa; 1151 kPa - Maximum Sustained)
Differential Pressure Range	10 to 22 psi (60 to 152 kPa)
Differential Type	Subtractive
Switch Operation	Auto recycle
Switching Action	SPDT snap action, make R-W, break R-B on pressure rise
Pipe Connection	Main or High Pressure: 1/4 in. NPT internal thread
