KMC-700 Red Oil Differential Pressure Gauge for Aquaculture

KMC-700 Red Oil Differential Pressure Gauge for Aquaculture

Product Introduction

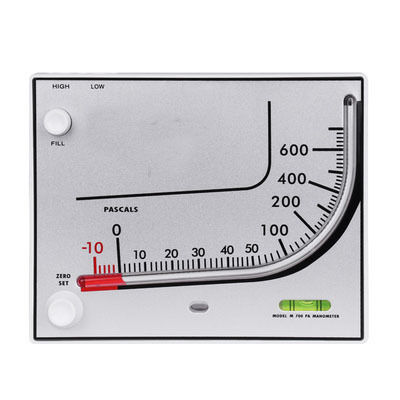

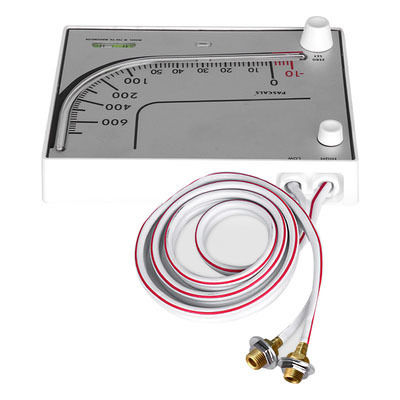

The KMC-700 Red Oil Differential Pressure Gauge is a specialized instrument designed for precise pressure measurement in aquaculture systems, clean rooms, pharmaceutical facilities, and blower applications. Featuring a rugged aluminum frosted panel to resist aging and scale degradation, the gauge uses 30MM fine volatile red oil for clear visibility and leak-free operation. Its upgraded PVC two-color tubing enhances readability, while the compact 190×150×32MM design allows easy installation in tight spaces. With ±3% accuracy, it efficiently monitors positive pressure, negative pressure (vacuum), and differential pressure in critical environments.

Product Features

Specialized Application:

Designed for aquaculture, clean rooms, pharmaceutical plants, and blower pressure monitoring.

Measures positive pressure, negative pressure, and differential pressure.

Accuracy & Durability:

±3% measurement accuracy for reliable pressure readings.

Aluminum frosted panel prevents scale fading and extends service life.

User-Friendly Design:

30MM fine volatile red oil for clear, immediate pressure indication.

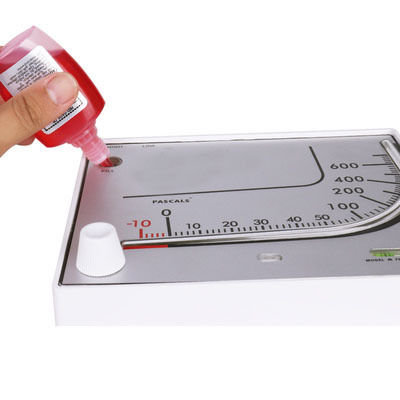

Twist-to-use mechanism eliminates oil leakage risks.

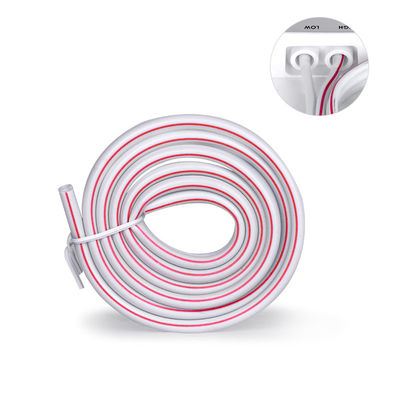

Upgraded PVC two-color tubing for easy visual differentiation of pressure levels.

Easy Calibration & Installation:

Zero adjustment knob for quick calibration.

Wall-mountable design with level bubble for precise horizontal alignment.

Compact Dimensions:

190×150×32MM size suitable for space-constrained environments.

Technical Specs at a Glance
