Product Introduction

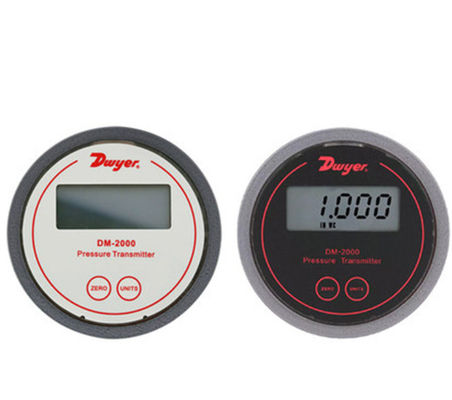

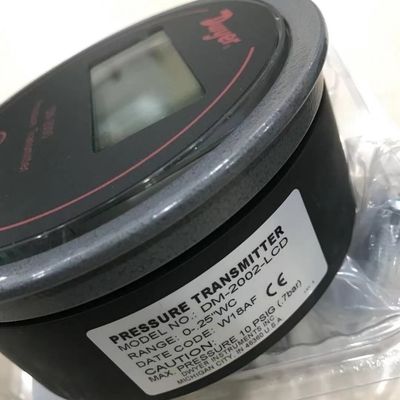

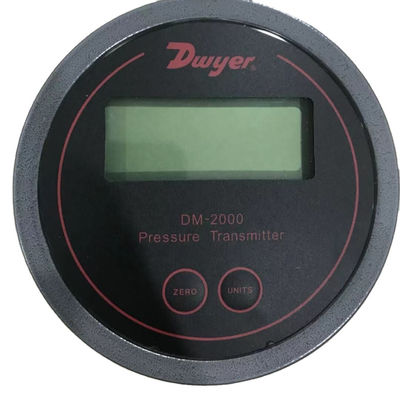

DM-2000 series differential pressure transmitter with digital display is used to monitor the differential pressure of air or other compatible gases, output standard 4-20mA. It is the same size as the 2000 series Magnehelic differential pressure gauge mounting hole, which is easy to replace and upgrade. There are many ranges to choose from, and special ranges can also be customized.

FRP molded pressure joints and housings are used for easy and simple installation. Numeric keys to calibrate zero and span. Optional three-and-a-half LCD digital display for on-site indication, according to different ranges, there are 4 to 6 engineering units for selection.

Technical Specs at a Glance

Service: Air and non-combustible, compatible gases.
Wetted Materials: Consult Factory.
Accuracy: ±1% FS at 70°F.
Stability: ±1% FS/yr.
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Pressure Limits: 10 psig (0.69 bar).
Thermal Effect: ±0.055% F.S./°F (0.099% F.S./°C).
Power Requirements: 10 to 35 VDC (2 wire).
Output Signal: 4 to 20 mA.
Zero and Span Adjustments: Digital push-button zero and span.
Loop Resistance: DC: 0 to 1250 Ω maximum.
Current Consumption: DC: 38 mA maximum.
Electrical Connections: Screw-type terminal block.
Display: 3.5 digit LCD, 0.7" height.
Process Connections: 1/8" I.D. tubing.
Mounting Orientation: Vertical.
Weight: 4.8 oz (136 g).
