Name: Dwyer MS Series Differential Pressure Transmitter with LCD Display
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: MS-111
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

Dwyer MS Series Differential Pressure Transmitter with LCD Display

Dwyer MS differential pressure transmitter

pressure transmitter with LCD display

precision differential pressure sensor

Brand Name:

Dwyer

Certification:

Model Number:

MS-111

Request A Quote

Dwyer MS Series Differential Pressure Transmitter with LCD Display

Product Details

Customized Support:

OEM, ODM

Wetted Materials:

Consult Factory

Stability:

±1% F.S./year.

Display (optional):

4 Digit LCD.

Shipping Term:

DHL/TNT/FEDEX

Highlight:

20mA Digital Pressure Gauge, Digital Pressure Gauge CCC, Digital Magnehelic Gauge CCC

Highlight:

Dwyer MS differential pressure transmitter

pressure transmitter with LCD display

precision differential pressure sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Get Best Price

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

Get Best Price

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

Get Best Price

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

Get Best Price

Contact Now

Product Description

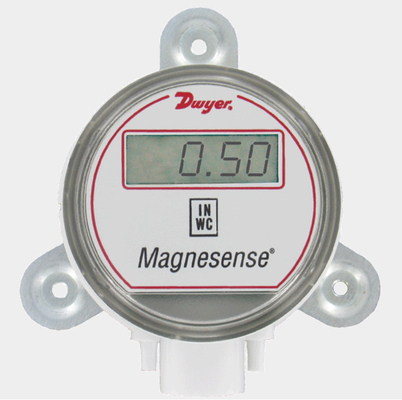

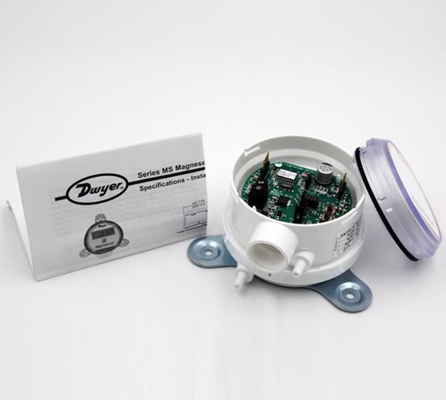

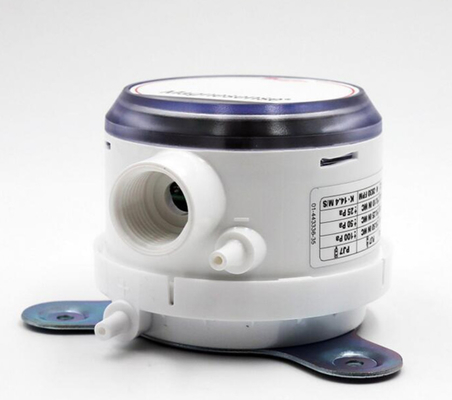

Dwyer MS Series Differential Pressure Transmitter with LCD Display

Key Highlights

20mA Digital Pressure Gauge Digital Pressure Gauge CCC Digital Magnehelic Gauge CCC

Attribute	Value
Customized Support	OEM, ODM
Wetted Materials	Consult Factory
Stability	±1% F.S./year
Display (optional)	4 Digit LCD
Shipping Term	DHL/TNT/FEDEX

Product Overview

The Dwyer MS Series Magnesense Differential Pressure Transmitter is a versatile solution for precise monitoring of micro pressure, differential pressure, vacuum, air velocity, and volume flow. Leveraging advanced magnetic induction technology, it ensures exceptional stability and reliability across diverse applications.

Key Features

Flexible Measurement Capabilities

Monitors differential pressure, vacuum, air velocity, and volume flow
Square root output for velocity/flow calculations when paired with pitot tubes

Field Customization

Selectable metric/imperial units (Pa, in w.c., etc.) via onboard settings

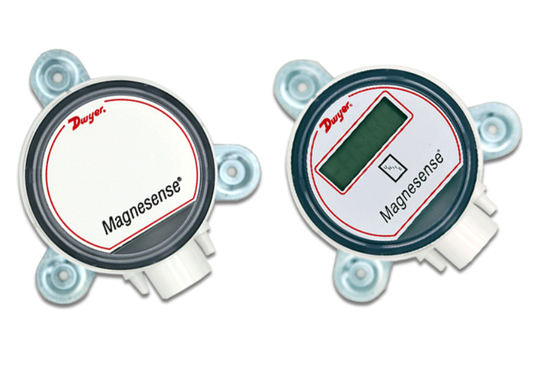

Optional 4-digit LCD display for real-time readings
Adjustable output signal damping (0.5-15 sec) for stable measurements

Precision & Stability

±1% FS accuracy for key ranges (0.25"-25" w.c.), ±2% for others
±1% FS/year long-term stability for reliable performance

Dual Output Options

4-20 mA (2-wire) and 0-5/10 VDC (3-wire) for system integration
Loop resistance: 0-1250 Ω (current), min. 1 kΩ (voltage)

Robust Design

NEMA 4X (IP66) enclosure for protection against dust and water
Pressure limits: 1 psi operation, 10 psi burst; temperature range: 0-150°F (-18-66°C)

Easy Installation

Wall mounting with vertical diaphragm orientation
European-style terminal blocks for quick wiring (16-26 AWG)
3/16" (5 mm) ID tubing connections for pressure ports

Technical Specifications

Parameter	Details
Model	MS Series (e.g., MS-111)
Output Signals	4-20 mA (2-wire), 0-5/10 VDC (3-wire)
Accuracy	±1% FS (selected ranges), ±2% for 0.1" w.c. and bidirectional ranges
Stability	±1% FS/year
Power Supply	10-35 VDC (2-wire), 17-36 VDC/21.6-33 VAC (3-wire)
Process Media	Air and non-combustible gases
Enclosure Rating	NEMA 4X (IP66)
Weight	8.0 oz (230 g)
