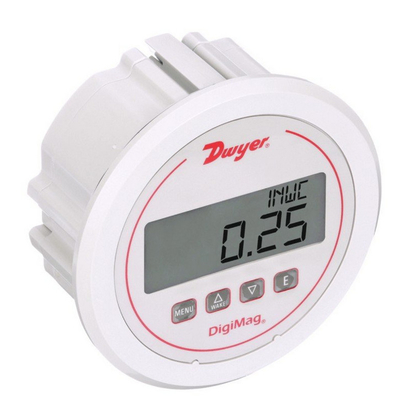

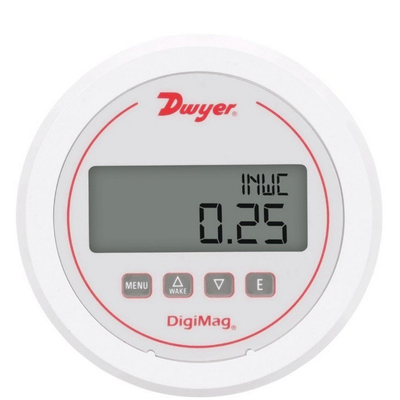

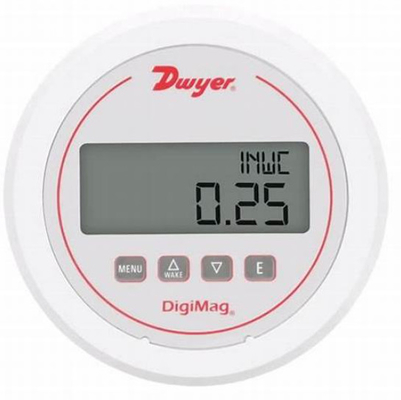

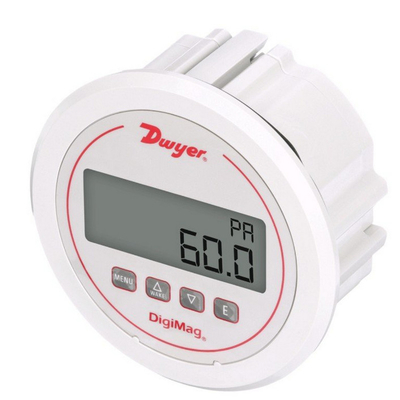

Name: Dwyer DM-1102 Digital Differential Pressure Gauge NEMA 4X IP66
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: DM-1102
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

Dwyer DM-1102 Digital Differential Pressure Gauge NEMA 4X IP66

Dwyer DM-1102 digital pressure gauge

NEMA 4X differential pressure sensor

IP66 industrial pressure gauge

Brand Name:

DWYER

Certification:

Model Number:

DM-1102

Request A Quote

Product Details

Current Consumption:

5 MA Maximum

Electrical Connections:

Removable Terminal Block For 16 To 26 AWG

Electrical Entry:

Cable Gland For 0.114 To 0.250" (2.9 To 6.4 Mm) Diameter Cable

Enclosure Rating:

NEMA 4X (IP66)

Accuracy:

±1% FS Including Linearity

Temperature Limits:

0 To 140°F (-18 To 60°C)

Highlight:

Dwyer DM-1102 digital pressure gauge

NEMA 4X differential pressure sensor

IP66 industrial pressure gauge

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Get Best Price

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

Get Best Price

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

Get Best Price

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

Get Best Price

Contact Now

Product Description

Dwyer DM-1102 Digital Differential Pressure Gauge NEMA 4X IP66

Product Attributes

Attribute	Value
Current Consumption	5 MA Maximum
Electrical Connections	Removable Terminal Block For 16 To 26 AWG
Electrical Entry	Cable Gland For 0.114 To 0.250" (2.9 To 6.4 Mm) Diameter Cable
Enclosure Rating	NEMA 4X (IP66)
Accuracy	±1% FS Including Linearity
Temperature Limits	0 To 140°F (-18 To 60°C)

Product Description

Dwyer DM-1102 DigiMag Digital Differential Pressure Gauge

The Dwyer DM-1102 is a precision digital differential pressure gauge from the DM-1000 series, designed for monitoring air and non-combustible gas pressures in critical environments like hospitals, clean rooms, and temporary facilities. With ±1% FS accuracy and a 4-digit LCD display, it replaces analog gauges with digital reliability, offering selectable Imperial/Metric units and field-programmable settings for pressure, air velocity, or flow. Powered by a 9V battery or 9-24 VDC, it balances portability with versatile deployment.

Product Features

Accuracy & Stability:

±1% FS accuracy (includes linearity) for precise measurements.
±1% FS/year long-term stability for consistent performance.

Display & Units:

4-digit LCD (0.60"H digits) with real-time readings in in w.c., kPa, mBar, etc.
No unit conversion needed; switch between metrics via button controls.

Field Programmability:

Configure for pressure, air velocity, or flow (with K-factor input for pitot tubes).
Set filter maintenance alerts via display flashing at pre-defined thresholds.

Power Versatility:

9V battery (ideal for wireless setups) or 9-24 VDC (for permanent installations).
Low power consumption (5 mA max.) extends battery life in field use.

Durable Design:

Glass-filled plastic housing with NEMA 4X (IP66) rating for dust/water protection.
Operating temp: 0-140°F (-18-60°C) suitable for diverse environments.

Technical Specs at a Glance

Service	Air and non-combustible, compatible gases
Wetted Materials	Consult factory
Housing Materials	Glass filled plastic
Accuracy	±1% FS including linearity
Temperature Limits	0 to 140°F (-18 to 60°C)
Long Term Stability	±1% FS per year
Display	4-digit LCD (Digits: 0.60"H x 0.33"W)
Power Requirements	9V battery

Available Models

Model	Description
DM-1102	DigiMag® differential digital pressure gage, range 0-0.25" w.c.
DM-1103	DigiMag® differential digital pressure gage, range 0-0.5" w.c.
DM-1104	DigiMag® differential digital pressure gage, range 0-1" w.c.
DM-1105	DigiMag® differential digital pressure gage, range 0-2" w.c.
DM-1107	DigiMag® differential digital pressure gage, range 0-5" w.c.
DM-1108	DigiMag® differential digital pressure gage, range 0-10" w.c.
DM-1109	DigiMag® differential digital pressure gage, range 0-15" w.c.
DM-1110	DigiMag® differential digital pressure gage, range 0-25" w.c.
DM-1111	DigiMag® differential digital pressure gage, range 0-50" w.c.
DM-1112	DigiMag® differential digital pressure gage, range 0-100" w.c.
DM-1122	DigiMag® differential digital pressure gage, range 0.25-0-0.25" w.c.
DM-1123	DigiMag® differential digital pressure gage, range 0.5-0-0.5" w.c.
DM-1124	DigiMag® differential digital pressure gage, range 1-0-1" w.c.
DM-1125	DigiMag® differential digital pressure gage, range 2-0-2" w.c.
DM-1127	DigiMag® differential digital pressure gage, range 5-0-5" w.c.
DM-1128	DigiMag® differential digital pressure gage, range 10-0-10" w.c.
DM-1202	DigiMag® differential digital flow gage, range 0-0.25" w.c.
DM-1203	DigiMag® differential digital flow gage, range 0-0.5" w.c.
DM-1204	DigiMag® differential digital flow gage, range 0-1" w.c.
DM-1205	DigiMag® differential digital flow gage, range 0-2" w.c.
DM-1207	DigiMag® differential digital flow gage, range 0-5" w.c.
DM-1208	DigiMag® differential digital flow gage, range 0-10" w.c.
DM-1209	DigiMag® differential digital flow gage, range 0-15" w.c.
DM-1210	DigiMag® differential digital flow gage, range 0-25" w.c.
DM-1211	DigiMag® differential digital flow gage, range 0-50" w.c.
