Name: Dwyer DM-2000 Digital Differential Pressure Transmitter 4-20mA
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: DM-2000
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Dwyer DM-2000 Digital Differential Pressure Transmitter 4-20mA

Dwyer DM-2000 pressure transmitter

digital differential pressure sensor

4-20mA pressure transmitter

Brand Name:

Dwyer

Certification:

Model Number:

DM-2000

Request A Quote

Product Details

Brand Name:

Dwyer

Accuracy:

±1% F.S. At 70°F.

Pressure Range:

0-1250pa

Power Supply:

10-35VDC

Display:

LCD

Output:

4-20mA

Highlight:

Dwyer DM-2000 pressure transmitter

digital differential pressure sensor

4-20mA pressure transmitter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Dwyer SafeTherm TTE-104 Explosion-Proof RTD Temperature Transmitter

Get Best Price

Dwyer LCT216 Digital Timer Tachometer Counter Industrial Multifunction

Get Best Price

UT35A UT32A Temperature Controller with Color LCD Display

Get Best Price

Kromschroder Tightness Control Unit 220-240V AC for Gas Burner Systems

Get Best Price

86--17719566736

Contact Now

Product Description

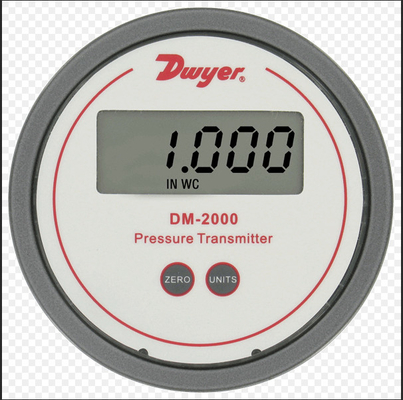

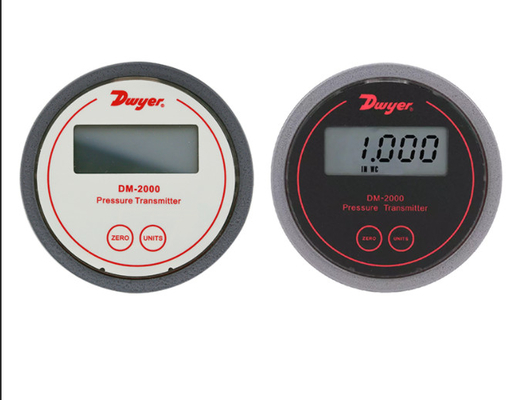

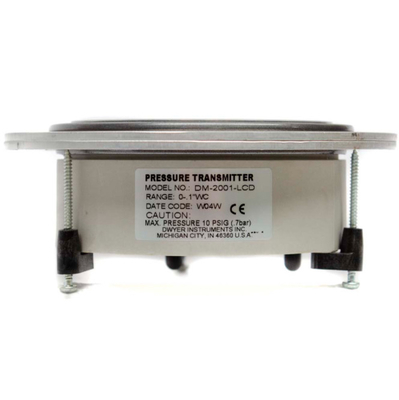

Dwyer DM-2000 Series Digital Differential Pressure Transmitter

Product Overview

The Dwyer DM-2000 Series Digital Differential Pressure Transmitter is engineered to measure pressure differences in air and non-combustible gases, outputting a standard 4-20 mA signal for seamless integration with industrial control systems.

Key Attributes

Attribute	Value
Brand Name	Dwyer
Accuracy	±1% F.S. At 70°F
Pressure Range	0-1250pa
Power Supply	10-35VDC
Display	LCD
Output	4-20mA

Product Features

Precision Measurement: ±1% FS accuracy at 70°F with ±1% FS/year long-term stability. Responds quickly to pressure changes for real-time alerts.
Signal Output & Compatibility: 4-20 mA output (2-wire) compatible with building automation systems. Same mounting dimensions as Magnehelic® gauges for drop-in replacements.
User-Friendly Design: Digital push-button zero/span calibration eliminates potentiometer adjustments. Optional 3.5-digit LCD with field-selectable engineering units.
Durable Construction: Glass-filled plastic housing with 10 psig pressure limit (0.69 bar). Operating temperature: 20-120°F (-6.67-48.9°C).

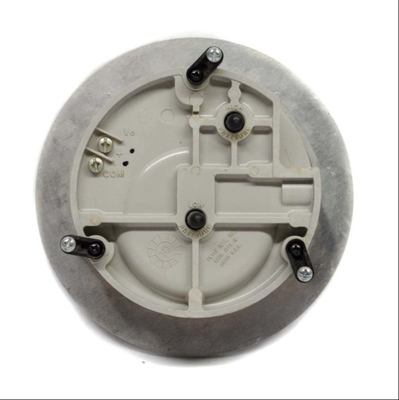

Installation Flexibility: Vertical mounting with 1/8" ID tubing connections. Tamper-proof button configuration prevents accidental setting changes.

Technical Specifications

Model	DM-2000
Pressure Range	0-1250 Pa
Accuracy	±1% FS at 70°F (21°C)
Output Signal	4-20 mA (2-wire)
Power Supply	10-35 VDC
Current Consumption	38 mA max
Display (Optional)	3.5-digit LCD, 0.7" height
Process Connections	1/8" ID tubing
Enclosure Material	Glass-filled plastic
Weight	4.8 oz (136 g)
