Name: Dwyer DM-2000 Differential Pressure Transmitter 4-20 mA Output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: DM-2012-LCD
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Dwyer DM-2000 Differential Pressure Transmitter 4-20 mA Output

Dwyer DM-2000 pressure transmitter

4-20 mA differential pressure sensor

precision pressure transmitter 4-20 mA

Brand Name:

Dwyer

Certification:

Model Number:

DM-2012-LCD

Request A Quote

Dwyer DM-2000 Differential Pressure Transmitter 4-20 mA Output

Product Details

Warranty:

1 Year

Customized Support:

OEM, ODM

Certification:

IECEE, CCC, ISO

Accuracy:

±1% F.S. At 70°F.

Connection Location:

Screw-type Terminal Bloc

Output Signal:

4 To 20 MA.

Highlight:

Dwyer DM-2000 pressure transmitter

4-20 mA differential pressure sensor

precision pressure transmitter 4-20 mA

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Dwyer SafeTherm TTE-104 Explosion-Proof RTD Temperature Transmitter

Get Best Price

Dwyer LCT216 Digital Timer Tachometer Counter Industrial Multifunction

Get Best Price

UT35A UT32A Temperature Controller with Color LCD Display

Get Best Price

Kromschroder Tightness Control Unit 220-240V AC for Gas Burner Systems

Get Best Price

86--17719566736

Contact Now

Product Description

Dwyer Series DM-2000 Differential Pressure Transmitter

Product Specifications

Attribute	Value
Warranty	1 Year
Customized Support	OEM, ODM
Certification	IECEE, CCC, ISO
Accuracy	±1% F.S. At 70°F
Connection Location	Screw-type Terminal Block
Output Signal	4 To 20 MA

Product Overview

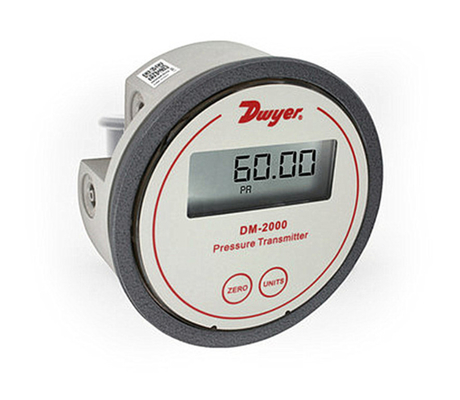

The Dwyer DM-2000 Series Differential Pressure Transmitter is a high-precision instrument designed to measure pressure differences in air and non-combustible gases, outputting a standard 4-20 mA signal for seamless integration with industrial control systems.

Key Features

Accuracy & Stability: ±1% FS accuracy at 70°F (21°C) with ±1% FS/year long-term stability. Thermal effect: ±0.055% FS/°F (0.099% FS/°C) for consistent readings across temperatures.
Signal Output & Compatibility: 4-20 mA output (2-wire) with loop resistance up to 1250 Ω. Direct replacement for Magnehelic® gauges, reducing installation time.
User-Friendly Design: Digital push-button zero/span calibration eliminates manual potentiometer adjustments. Optional 3.5-digit LCD (0.7" height) for real-time local readings in 4-6 engineering units.
Durable Construction: Glass-filled plastic housing with 10 psig (0.69 bar) pressure limit. Operating temperature: 20-120°F (-6.67-48.9°C) for reliable performance in industrial environments.
Flexible Installation: 1/8" ID tubing connections for quick pressure port setup. Vertical mounting orientation with integral bracket for easy integration.

Technical Specifications

Parameter	Details
Model Range Examples	DM-2002: 0-0.25" w.c. / DM-2012: ±0.25" w.c. / DM-2007: 0-5" w.c.
Accuracy	±1% FS at 70°F (21°C)
Output Signal	4-20 mA (2-wire)
Power Supply	10-35 VDC
Display (Optional)	3.5-digit LCD, 0.7" height
Process Connections	1/8" ID tubing
Enclosure Material	Glass-filled plastic
Weight	4.8 oz (136 g)
Agency Approvals	CE certified
