Name: Winpark AK6 Series LED Temperature Controller with Relay Output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: AK6-AKL800-C322R
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

Winpark AK6 Series LED Temperature Controller with Relay Output

LED temperature controller with relay

AK6 series temperature controller

precision pressure sensor controller

Brand Name:

Winpark

Certification:

Model Number:

AK6-AKL800-C322R

Request A Quote

Winpark AK6 Series LED Temperature Controller with Relay Output

Product Details

Model NO.:

AK6

Certification:

CCC, ISO9001, CE

Display Type:

LED

Customized:

Non-Customized

Highlight:

AK6-AKL800-C322R Intelligent Temperature Controller, Winpark Intelligent Temperature Controller, AK6 Series Intelligent Temperature Controller

Highlight:

LED temperature controller with relay

AK6 series temperature controller

precision pressure sensor controller

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Get Best Price

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

Get Best Price

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

Get Best Price

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

Get Best Price

Contact Now

Product Description

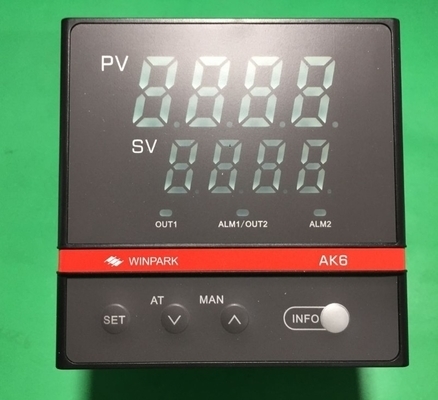

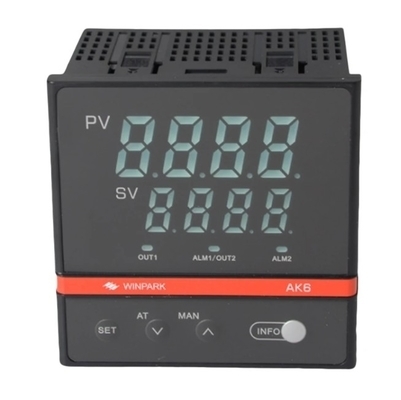

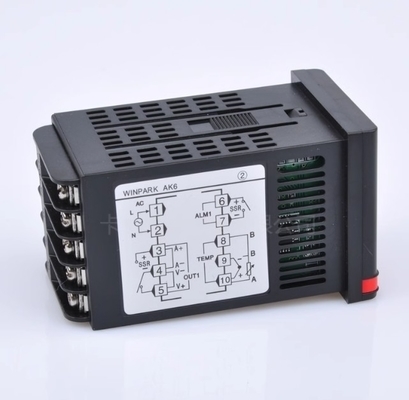

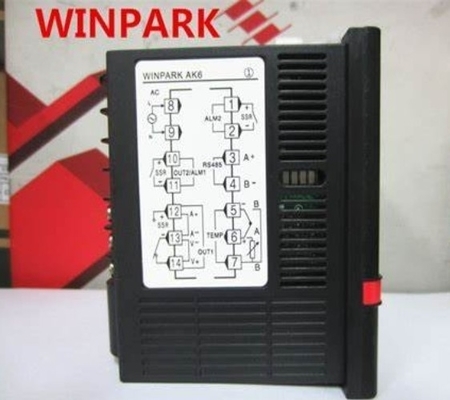

Winpark AK6 Series LED Temperature Controller with Relay Output

Product Attributes

Attribute	Value
Model NO.	AK6
Certification	CCC, ISO9001, CE
Display Type	LED
Customized	Non-Customized
Highlight	AK6-AKL800-C322R intelligent temperature controller, Winpark intelligent temperature controller, AK6 Series intelligent temperature controller

Product Description

Winpark AK6 Series Temperature Controllers

The Winpark AK6 Series Temperature Controllers are versatile, user-friendly instruments designed to meet diverse industrial temperature control needs. With a sleek, compact design, multiple input/output options, and strong anti-interference capabilities, these controllers are widely used in extrusion, packaging, rubber processing, biotech, and chemical industries.

Core Features

Flexible Output Options:

Main Output: Relay, logic level, analog (4-20mA/0-10V), thyristor phase-shift/zero-crossing triggers, 30A relay, or isolated analog output.
Alarm Output: Configurable as 1-2 relays, 1-2 logic levels, or combinations (e.g., 1 logic level + 1 relay) for versatile alerting.

User-Centric Design:

Sleek appearance by renowned design firms, with intuitive operation via front-panel buttons.
Compact sizes (48×48mm to 96×96mm) fit standard control panels, saving space.

Industrial Reliability:

Strong anti-interference ability to withstand electrical noise in factory environments.
Precise control ensures stable temperature regulation, critical for quality-critical processes.

Applications

Extrusion & Plastics: Controls barrel and die temperatures in plastic extrusion lines.
Packaging Machinery: Regulates heat-sealing temperatures for consistent seal quality.
Rubber Processing: Maintains curing temperatures in vulcanization presses.
Biological Engineering: Stabilizes incubator or reactor temperatures for cell culture.
Chemical Industry: Controls heating/cooling in reaction vessels and distillation columns.

Technical Specifications

Parameter	Detail
Model	AK6 Series
Certifications	CCC, ISO9001, CE
Display Type	LED (clear, high-visibility for process values and setpoints)
Dimensions	Multiple sizes: 48×48mm, 48×96mm, 96×48mm, 72×72mm, 96×96mm
Input Signals	Thermocouples (K, E, J, N, W3-25, W5-26); RTDs (PT100, CU50)
Power Supply	85-260V AC (wide voltage range for global compatibility)
