Name: Honeywell ProCycle P150T Pressure Controller for Steam and Air
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: L404F1102/U
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Honeywell ProCycle P150T Pressure Controller for Steam and Air

Honeywell ProCycle P150T pressure controller

steam air pressure controller

precision pressure sensor for steam

Brand Name:

Honeywell

Certification:

Model Number:

L404F1102/U

Request A Quote

Honeywell ProCycle P150T Pressure Controller for Steam and Air

Product Details

Package Dimensions:

‎ 12 X 12 X 6 Inches; 1 Pounds

Item Model Number ‏:

L404F1102/U

Manufacturer:

Honeywell

Country Of Origin:

United States

Highlight:

Honeywell ProCycle P150T pressure controller

steam air pressure controller

precision pressure sensor for steam

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Dwyer SafeTherm TTE-104 Explosion-Proof RTD Temperature Transmitter

Get Best Price

Dwyer LCT216 Digital Timer Tachometer Counter Industrial Multifunction

Get Best Price

UT35A UT32A Temperature Controller with Color LCD Display

Get Best Price

Kromschroder Tightness Control Unit 220-240V AC for Gas Burner Systems

Get Best Price

86--17719566736

Contact Now

Product Description

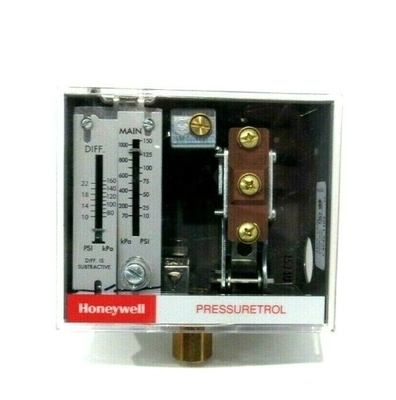

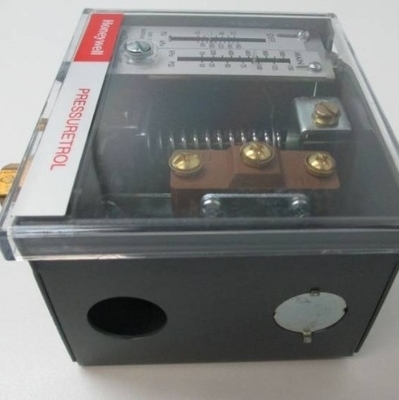

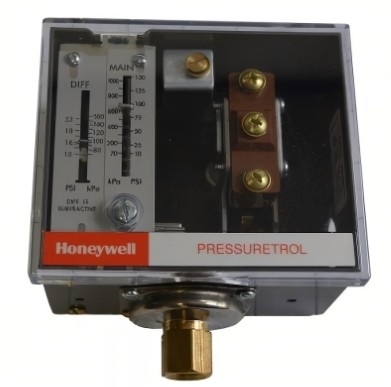

Honeywell ProCycle Pressure Controller P150T

Package Dimensions	12 X 12 X 6 Inches; 1 Pounds
Item Model Number	L404F1102/U
Manufacturer	Honeywell
Country Of Origin	United States

Product Overview

The Honeywell ProCycle Pressure Controller P150T is an advanced auto-recycle pressure and temperature control device designed for precise regulation of steam, air, noncombustible gases, and non-corrosive fluids. Built with Honeywell's renowned reliability, it ensures stable operation across diverse industrial and commercial applications.

Key Features

Versatile compatibility with steam, air, noncombustible gases, and non-corrosive fluids (safe for stainless steel sensing element)
Snap-acting switching mechanism for rapid circuit opening/closing on pressure rise
Adjustable differentials (10-22 psi) via easy-to-access top-mounted screws
Flexible mounting options: 1/4 inch -18 NPT internal pipe threads or surface mounting
Ground screw terminal for enhanced electrical safety
Certified by UL, CSA, and CE, meeting global safety standards

Technical Specifications

Application: Control of steam, air, noncombustible gases, or non-corrosive fluids

Operating Temperature Range: -35°F to 150°F (-37°C to 66°C)

Operating Pressure Range: 10 to 150 psi (69 to 1034 kPa)

Maximum Sustained Pressure: 225 psi (1551 kPa)

Differential Pressure Range: 10 to 22 psi (60 to 152 kPa) (subtractive type)

Dimensions: 4-31/32 in. high x 4-1/2 in. wide x 2-3/4 in. deep (126 mm x 114 mm x 70 mm)

Electrical Connections: Screw terminals

Contact Ratings: 120 Vac (8.0 AFL, 48.0 ALR, 10.0 A resistive); 240 Vac (5.1 AFL, 30.6 ALR, 5.0 A resistive)

Sensor Element: Stainless steel diaphragm

Approvals: UL Listed (File No. MP466), CSA Certified (File No. LR1620), CE, Swiss RE Acceptable
