Testo 550 Digital Refrigerant Manifold Kit with Bluetooth Connectivity 60 Refrigerant Profiles and Rugged Design

Testo 550 refrigerant manifold kit

digital Bluetooth refrigerant gauge

precision pressure sensor kit

Brand Name:

Testo

Certification:

Model Number:

550

Request A Quote

Testo 550 Digital Refrigerant Manifold Kit with Bluetooth Connectivity 60 Refrigerant Profiles and Rugged Design

Product Details

Order Number:

0563 1550

Operating Temperature:

-4° To 122 °F / -20 To +50 °C

Storage Temperature:

-4° To 140 °F / -20 To +60 °C

Battery Life:

Approx. 250h

Weight:

85.50 Oz. / 2424 G

Size:

7.87 X 4.29 X 2.48 In. / 200 X 109 X 63 Mm

Highlight:

Testo 550 refrigerant manifold kit

digital Bluetooth refrigerant gauge

precision pressure sensor kit

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell GSS Series EN50041 and EN50047 Standards Safety Switch with Positive Opening Normally Closed Contacts and UL CSA CE SIL3 Certification

Get Best Price

Honeywell Model LC Digital Force Indicator with 50,000 lb Range Stainless Steel Diaphragm and Peak Capture Feature

Get Best Price

Dwyer Series 2000 Industrial Pressure Gauge with ±2% Accuracy, IP67 Enclosure Rating, and 4" Dial Face

Get Best Price

Dwyer AtmosphereGuard RHP Humidity/Temperature Transmitter with Dual-Parameter Sensing, Wide Power Input Range, and User-Friendly LCD Display

Get Best Price

Contact Now

Product Description

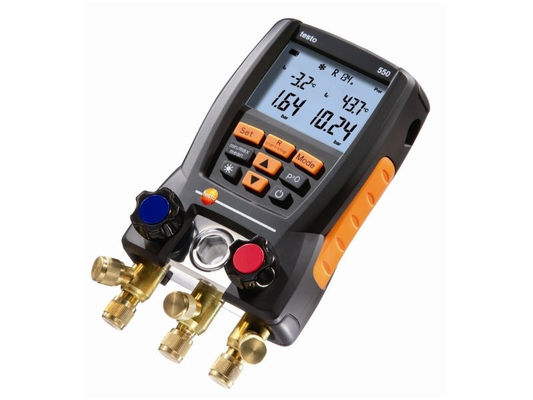

Testo 550 Digital Refrigerant Manifold Kit with Bluetooth

The Testo 550 Digital Refrigerant Manifold Kit with Bluetooth is a robust, versatile tool designed for professionals working on refrigeration and air conditioning systems. Combining high-precision pressure and temperature measurements with smart connectivity, it simplifies tasks from leak testing to superheat/subcooling calculations. Equipped with a rugged housing, 60 refrigerant profiles, and seamless integration with mobile apps, it streamlines data documentation and report generation, making it an essential instrument for efficient on-site service and maintenance.

Key Features

Bluetooth Connectivity: Enables wireless data transfer to smartphones or tablets within a 65-foot range, supporting live monitoring, report generation, and direct emailing of reports and invoices via the app.
Comprehensive Measurement Capabilities: Measures high-side and low-side pressures, temperatures (via two included NTC clamp probes), and automatically calculates saturation, evaporation, superheat, and subcooling values.
60 Refrigerant Profiles: Pre-loaded with 60 common refrigerant profiles, with the ability to download new ones via the app, ensuring compatibility with a wide range of systems.
Leak Test Functionality: Simplifies leak detection with dedicated features for pressure drop monitoring, enhancing diagnostic efficiency.
Rugged Design: Features a metal frame around the display for impact protection, housed in a durable casing. Registration extends the warranty to an additional year, ensuring long-term reliability.
User-Friendly Interface: Large 2-line backlit display and simplified menu structure for easy operation, even in low-light environments.
Integration with MeasureQuick App: Supports live data feed integration, enhancing diagnostic capabilities with advanced analysis tools.

Technical Specifications

Temperature
Measuring range	-58° to 302 °F / -50 to +150 °C
Accuracy	±0.9 °F / ±0.5 °C
Resolution	0.1 °F / 0.1 °C
Probe connection	2 x plug-in (NTC)
Pressure Measurement
Measuring range	-15 to 870 psi / -1 to 60 bar
Accuracy	±0.5 % Fs
Resolution	0.14 psi / 0.01 bar
Probe connection	3 x 7/16" - UNF
Overload rel. (high pressure)	943 psi / 65 bar
Vacuum
Measuring range	-15 to 0 psi (indication) / -1 to 0 bar
General Technical Data
Weight	85.50 oz. / 2424 g
Dimensions	7.87 x 4.29 x 2.48 in. / 200 x 109 x 63 mm
Operating temperature	-4° to 122 °F / -20 to +50 °C
Protection class	IP42
System requirements	requires iOS 12.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour	Black
Battery life	approx. 250h (display light off, Bluetooth off)
Storage temperature	-4° to 140 °F / -20 to +60 °C

Supported Refrigerants

Pre-loaded refrigerants: R114; R12; R123; R1233zd; R1234yf; R1234ze; R124; R125; R13; R134a; R22; R23; R290; R32; R401A; R401B; R402A; R402B; R404A; R407A; R407C; R407F; R407H; R408A; R409A; R410A; R414B; R416A; R420A; R421A; R421B; R422B; R422C; R422D; R424A; R427A; R434A; R437A; R438A; R442A; R444B; R448A; R449A; R450A; R452A; R452B; R453a; R454A; R454B; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (H₂O); R744 (CO₂)

Available for update via App: R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; Ra11A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22
