Name: Testo 510i Smart Differential Pressure Probe for HVAC Systems
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 549i, 510i, 410i
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Testo 510i Smart Differential Pressure Probe for HVAC Systems

Testo 510i HVAC pressure probe

smart differential pressure sensor

HVAC system pressure measurement tool

Brand Name:

Testo

Certification:

Model Number:

549i, 510i, 410i

Request A Quote

Testo 510i Smart Differential Pressure Probe for HVAC Systems

Product Details

Warranty:

1 Year

Customized Support:

OEM, ODM

Operating Temperature:

-20 To +50 °C

Storage Temperature:

-20 To +60 °C

Battery Life:

250 H (without Illumination, Without Bluetooth)

Dimensions:

200 X 109 X 63 Mm

Highlight:

Testo 510i HVAC pressure probe

smart differential pressure sensor

HVAC system pressure measurement tool

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Dwyer SafeTherm TTE-104 Explosion-Proof RTD Temperature Transmitter

Get Best Price

Dwyer LCT216 Digital Timer Tachometer Counter Industrial Multifunction

Get Best Price

UT35A UT32A Temperature Controller with Color LCD Display

Get Best Price

Kromschroder Tightness Control Unit 220-240V AC for Gas Burner Systems

Get Best Price

86--17719566736

Contact Now

Product Description

Testo 510i Smart Differential Pressure Probe

Product Overview

The Testo 510i Smart Differential Pressure Probe is a compact, high-precision instrument designed for accurate low-pressure measurements in various systems. Its wireless connectivity to smartphones or tablets via the testo Smart Probes App enables seamless operation, making it ideal for tasks such as measuring static pressure in ventilation systems, pressure drops across filters and coils, and manifold pressure.

Key Attributes

Attribute	Value
Warranty	1 Year
Customized Support	OEM, ODM
Operating Temperature	-20 To +50 °C
Storage Temperature	-20 To +60 °C
Battery Life	250 H (without Illumination, Without Bluetooth)
Dimensions	200 X 109 X 63 Mm

Product Features

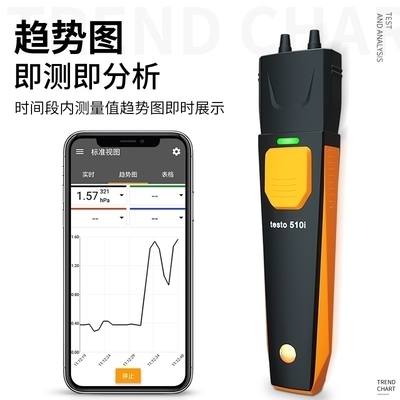

Wireless Smartphone Operation: Connects to the testo Smart Probes App for remote reading, data recording, and report generation.
Comprehensive Measurement: Measures differential pressure, static pressure, air flow, and volume flow with air density and temperature compensation.
Hands-Free Convenience: Magnetic back allows attachment to metal surfaces for hands-free operation.
Data Management: App presents data in diagrams or tables with export to PDF or Excel.
Compact Design: Pocket-sized for easy use in tight spaces like ducts and equipment enclosures.

Technical Specifications

Pressure Measurement
Measuring range	-15 to +870 psi / -1 to +60 bar
Accuracy	±0.5 % of full-scale value
Resolution	0.01 psi / 0.01 bar
Probe connection	7/16 in. - UNF
Overload rel. (high pressure)	+943 psi / +65 bar
General Technical Data
Weight	5.52 oz. / 156.6 g
Dimensions	5 x 1 x 1 in. / 125 x 32 x 31 mm
Operating temperature	-4° to 122 °F / -20 to +50 °C
Housing	Plastic
Product color	black/orange
Battery type	3 x AAA
Battery life	150 h
Pressure media	CFC, HFC, HCFC, N, H₂O, CO₂
System requirements	iOS 8.3+ or Android 4.3+ with Bluetooth 4.0
Storage temperature	-4° to 140 °F / -20 to +60 °C
