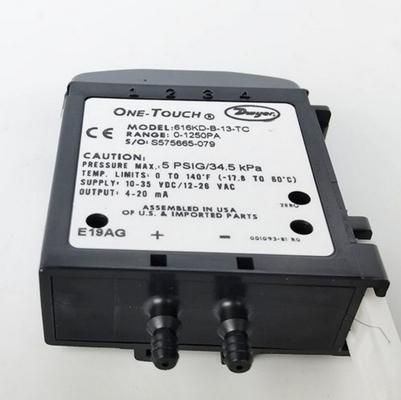

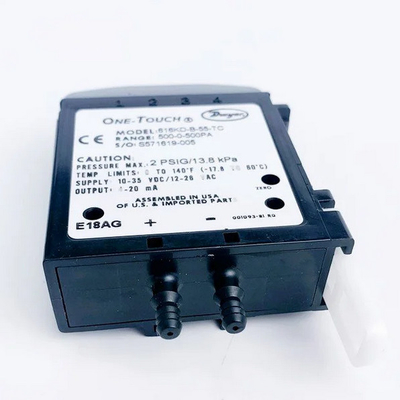

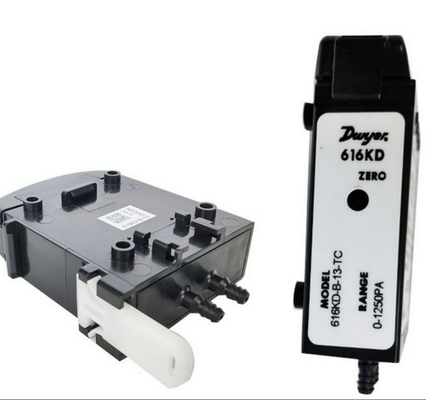

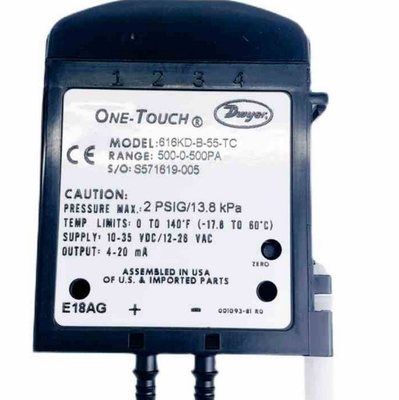

Dwyer 616KD-B-06 Pressure Transmitter 4-20mA Output ±1% FS Accuracy

The Dwyer 616KD-B-06 is a high-performance differential pressure transmitter designed for simplicity and reliability in measuring air and compatible non-combustible gases.

• One-Touch® Calibration: A single push button calibrates both zero and span, eliminating cumbersome manual adjustments and reducing installation/maintenance time. No external reference sources or calibration devices are needed.
• Cost-Effective & Compact: Small form factor makes it suitable for space-constrained OEM applications; designed to balance performance and affordability without compromising reliability.
• Wide Application Flexibility: Available with optional 1/8" NPT process connections (compatible with metal barbed or compression fittings), supporting diverse installation needs for air, duct, or gas pressure measurement.
• Stable Performance: Offers ±1% FS accuracy (616KD-B model) and ±1% FS/year stability, ensuring consistent readings over time. Temperature compensation (20 to 122°F/-6.67 to 50°C) minimizes errors from ambient temperature fluctuations.
• NIST Calibration: Optional NIST-traceable calibration (via product configurator) provides metrological assurance for critical applications requiring compliance with standards.
