Name: SICK GTB6-N1211 Photoelectric Proximity Sensor NPN 10-30V DC
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GTB6-N1211
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

SICK GTB6-N1211 Photoelectric Proximity Sensor NPN 10-30V DC

SICK GTB6-N1211 photoelectric sensor

NPN proximity sensor 10-30V DC

photoelectric proximity sensor industrial

Brand Name:

SICK

Certification:

Model Number:

GTB6-N1211

Request A Quote

Product Details

Brand Name:

SICK

Model:

GTB6-N1211

Device Type:

Photoelectric Sensors

Functional Principle:

Photoelectric Proximity Sensor

Supply Voltage UB:

10 V DC ... 30 V DC

Type:

NPN

Highlight:

SICK GTB6-N1211 photoelectric sensor

NPN proximity sensor 10-30V DC

photoelectric proximity sensor industrial

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Deltabar PMD55B - differential pressure transmitter

Get Best Price

Honeywell 24CE Series Miniature housing IEC945-5-1, EN60947-5-1. Metal housing. lP66. CE. Silver contacts

Get Best Price

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Get Best Price

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

Get Best Price

Contact Now

Product Description

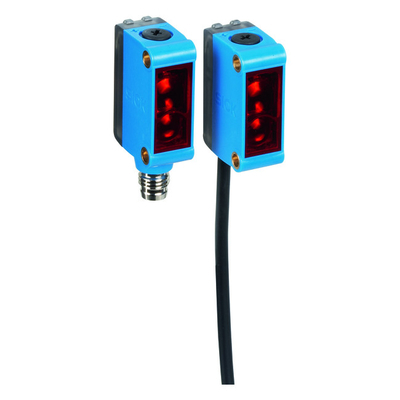

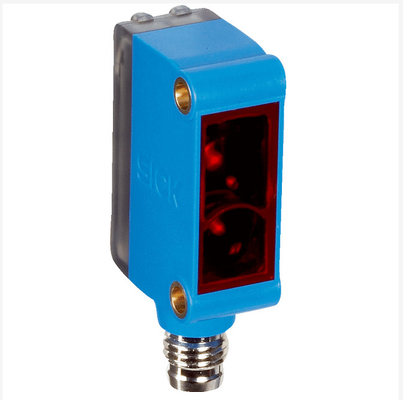

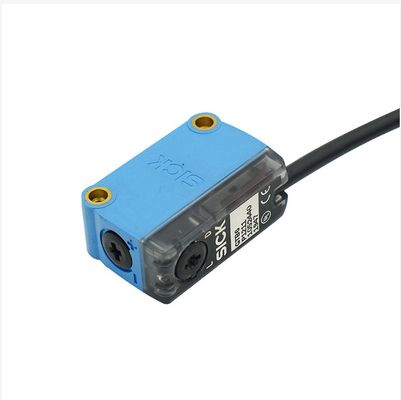

SICK GTB6-N1211 Photoelectric Proximity Sensor NPN 10-30V DC

Product Specifications

Attribute	Value
Brand Name	SICK
Model	GTB6-N1211
Device Type	Photoelectric Sensors
Functional Principle	Photoelectric Proximity Sensor
Supply Voltage UB	10 V DC ... 30 V DC
Type	NPN

Product Overview

The SICK GTB6-N1211 is a compact photoelectric proximity sensor designed for precise object detection in diverse industrial and commercial applications. Utilizing background suppression technology, it ensures reliable sensing regardless of target surface color or reflectivity, making it ideal for scenarios such as crop position detection, product counting, and safety protection.

With a rugged IP67-rated housing and wide operating temperature range (-25°C to +55°C), it performs consistently in harsh environments, while its small form factor (12mm x 31.5mm x 21mm) enables installation in space-constrained locations.

Key Features

Background Suppression Technology: Eliminates interference from background surfaces, ensuring detection depends only on target distance (not color or reflectivity). Reliable for detecting dark targets against bright backgrounds or vice versa.
Flexible Sensing Range: Operates within 35mm to 140mm (standard range), with a maximum adjustable range of 5mm to 250mm, adapting to varied object sizes and distances.
Compact & Durable Design: IP67-rated enclosure resists dust and water, suitable for wet or dusty industrial environments. Lightweight (60g) and small dimensions facilitate installation in tight spaces.
User-Friendly Indicators: Green LED indicates power supply activation; yellow LED shows light receiving status, simplifying setup and troubleshooting.

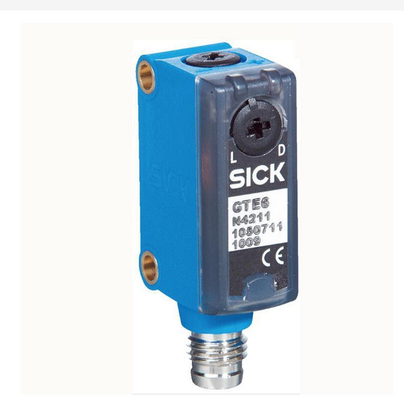

Adjustable Settings: Equipped with a sensitivity potentiometer (+ for longer distance, - for shorter) and light/dark switch (L=light-on, D=dark-on), allowing customization for specific application needs.
Wide Compatibility: 10-30V DC power supply, 30mA power consumption, and reverse-polarity/short-circuit protection ensure safe integration with industrial control systems.

Technical Specifications

Additional technical specifications available upon request. Please contact our technical support team for detailed documentation.
