Name: KOSO EP800 Electro-Pneumatic Positioner 4-20mA DC Input
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: EPA804
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

KOSO EP800 Electro-Pneumatic Positioner 4-20mA DC Input

KOSO EP800 electro-pneumatic positioner

4-20mA DC input positioner

precision pressure sensor positioner

Brand Name:

Koso

Certification:

Model Number:

EPA804

Request A Quote

KOSO EP800 Electro-Pneumatic Positioner 4-20mA DC Input

Product Details

Brand:

EPA804

Type:

EPA804

Origina:

Japan

Packaging:

Wooden Case

Output:

4-20ma

Highlight:

KOSO EP800 electro-pneumatic positioner

4-20mA DC input positioner

precision pressure sensor positioner

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Dwyer SafeTherm TTE-104 Explosion-Proof RTD Temperature Transmitter

Get Best Price

Dwyer LCT216 Digital Timer Tachometer Counter Industrial Multifunction

Get Best Price

UT35A UT32A Temperature Controller with Color LCD Display

Get Best Price

Kromschroder Tightness Control Unit 220-240V AC for Gas Burner Systems

Get Best Price

86--17719566736

Contact Now

Product Description

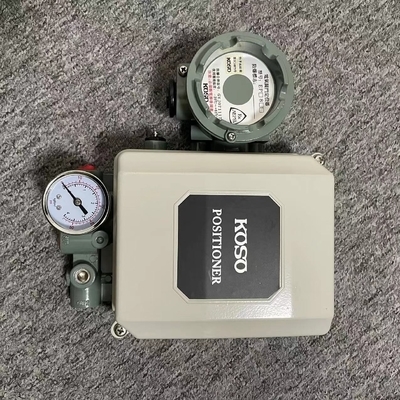

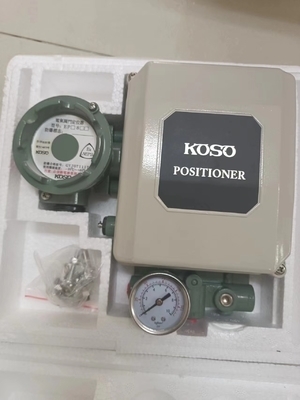

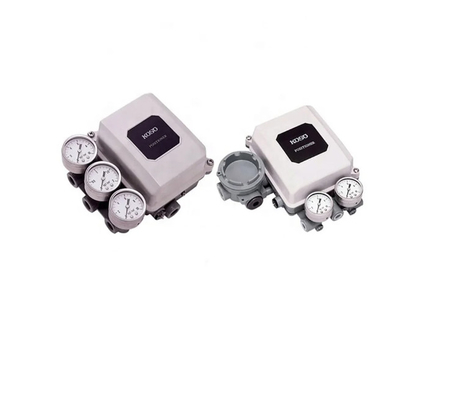

KOSO EP800 Series Electro-Pneumatic Positioners

Product Overview

Attribute	Value
Brand	EPA804
Type	EPA804
Origin	Japan
Packaging	Wooden Case
Output	4-20ma

Product Description

The KOSO EP800 series electro-pneumatic positioners are designed for precise control of pneumatic actuators, converting 4-20mA DC input signals into output air pressure to position control valves accurately. These positioners receive feedback from the actuator's stroke, enabling precise positioning according to the control signal.

Key Features

Precise Positioning: Achieves accurate control with a dead zone less than 0.4% of full stroke and backdrop less than 1% for full travel.
Versatile Input: Supports standard 4-20mA DC signals and split ranges (4-12mA DC, 12-20mA DC, 10-50mA DC for specific models).
Wide Application: Suitable for both straight stroke (12-100mm) and angular stroke (0-90°) actuators.
Flexible Output: Linear output characteristics (configurable to fast open or equal percentage).
Robust Construction: Aluminum alloy housing available in flameproof and normal types, withstanding temperatures from -40°C to 80°C.

Technical Specifications

Series & Models:

EP800 Series

Straight stroke: EPA801/811/821, EPB801/811/821, EPL801/811, EPC801/811/821

Angular stroke: EPA804/814/824, EPC804/814/824

Electrical Specifications:

Input Signal: 4-20mA DC standard (split ranges available)

Input Impedance: 250Ω (4-20mA), 100Ω (10-50mA)

Mechanical Specifications:

Stroke: 12-100mm (straight), 0-90° (angular)

Air Supply: 0.14-0.50MPa

Air Consumption: 5NL/min @ 0.4MPa

Environmental Ratings:

Temperature: -40°C to 80°C (normal), -20°C to 60°C (flameproof)

Humidity: ≤90% RH

Housing: Aluminum alloy

Weight: 3.5kg
