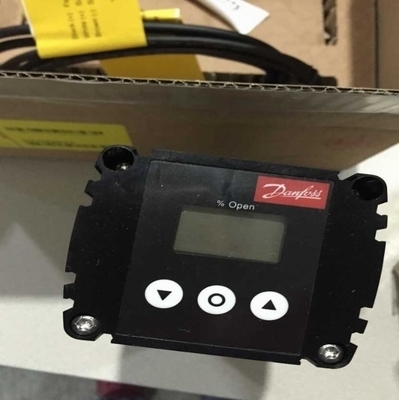

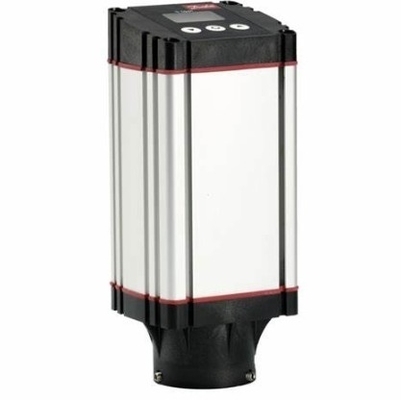

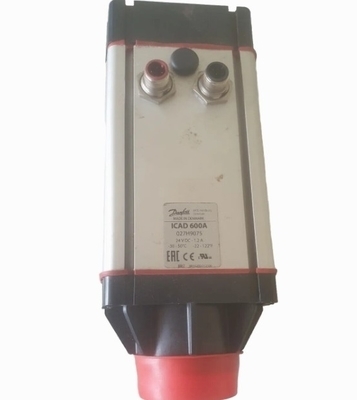

Name: Danfoss ICAD 600A Actuator with LCD Display
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 027H9075
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Danfoss ICAD 600A Actuator with LCD Display

Danfoss ICAD 600A actuator

actuator with LCD display

precision pressure sensor actuator

Brand Name:

DANFOSS

Certification:

Model Number:

027H9075

Request A Quote

Danfoss ICAD 600A Actuator with LCD Display

Product Details

Net Weight:

1.384 Kilogram

Output:

5 V

Digital Outputs (DO) [pc:

Display Type:

LCD

Highlight:

ICM 32 DANFOSS Actuator, ICM 25 DANFOSS Actuator, ICAD 600A 027H9075 DANFOSS Actuator

Highlight:

Danfoss ICAD 600A actuator

actuator with LCD display

precision pressure sensor actuator

Payment & Shipping Terms

Dwyer SafeTherm TTE-104 Explosion-Proof RTD Temperature Transmitter

Get Best Price

Dwyer LCT216 Digital Timer Tachometer Counter Industrial Multifunction

Get Best Price

UT35A UT32A Temperature Controller with Color LCD Display

Get Best Price

Kromschroder Tightness Control Unit 220-240V AC for Gas Burner Systems

Get Best Price

86--17719566736

Contact Now

Product Description

Danfoss ICAD 600A Actuator

Key Specifications

Attribute	Value
Net Weight	1.384 Kilogram
Output	5 V
Digital Outputs (DO)	1 pc
Display Type	LCD

Compatible Models

ICM 32 DANFOSS Actuator

ICM 25 DANFOSS Actuator

ICAD 600A 027H9075 DANFOSS Actuator

Technical Specifications

Ambient temperature range [°C] -30 °C to 50 °C

Ambient temperature range [°F] -22 °F to 122 °F

Analog input current opt. [mA] 4 mA to 20 mA

Analog input Volt opt. [V] d.c 2 V to 10 V

Analog output options [mA] 4 mA to 20 mA

Approvals CE, CRN, EAC, LLC CDC TYSK, UL, UKCA

Cable length 1.5 m (60 in)

Control cable size 7 x 0.25 mm² (7 x ~24 AWG)

Digital Output-Ext supply [V] d.c 5 V to 24 V

Digital Output-Load [Ohm] 50

Digital Output-Max Load [mA] 50 mA

Digital outputs (DO) [pc] 3 pc

Enclosure rating IP IP67

Function Digital output

WEEE and batteries Not in scope

Load Analog input Current [Ohm] 200
