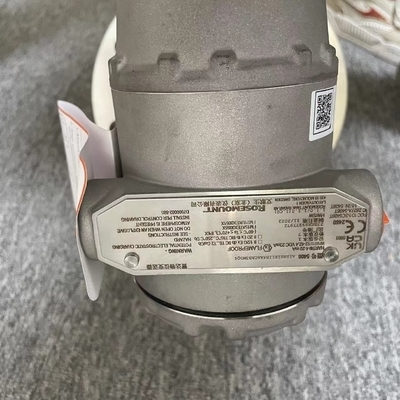

Rosemount 5408 Radar Level Transmitter Non-Contacting 150m Range

The Rosemount 5408 Non-Contacting Radar Level Transmitter is an advanced device that utilizes enhanced technology and Human Centered Design to deliver accurate and reliable measurements on both liquid and solid materials. It employs two-wire FMCW technology, which deploys a continuous echo to maximize radar signal strength, ensuring robust and reliable measurement.

Designed with ease-of-use in mind, it features an intuitive software interface that guides operators through installation, commissioning, proof-testing, and maintenance. Equipped with powerful onboard diagnostics, it proactively monitors transmitter health and alerts users to potential issues. Safety certified to IEC 61508 for SIL 2 applications, the Rosemount 5408 reduces the cost of risk, increases efficiency, and protects people and the environment.

• High Accuracy: ±0.08 in. (±2 mm) standard accuracy and ±0.04 in. (±1 mm) ultra accuracy
• Low Voltage Operation: 12V dc lift-off voltage for versatile power supply scenarios
• Power Loss Immunity: Maintains consistent performance during unstable power conditions
• Innovative Seal Design: PTFE seal eliminates o-rings, enhancing reliability
• SIL 2 Certified: Model available for safety-critical applications
• Solids Measurement: Unique algorithm for accurate solid material measurement
• Advanced Diagnostics: Signal Quality Metrics alert for antenna coating or build-up
• Smart Meter Verification: Automatic diagnostic tool with pass/fail reporting
• Proof Test Package: Built-in wizards for step-by-step testing guidance
• Specialized Antennas: Options include process seal and Tri Clamp connections
• Hygienic Compliance: 3-A certified for strict cleanliness requirements
