Name: Dwyer MSX-W10-PA-COM-LCD Differential Pressure Transmitter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: MSX-W10-PA-COM-LCD
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Dwyer MSX-W10-PA-COM-LCD Differential Pressure Transmitter

Dwyer differential pressure transmitter

MSX-W10-PA-COM-LCD pressure sensor

precision differential pressure transducer

Brand Name:

Dwyer

Certification:

Model Number:

MSX-W10-PA-COM-LCD

Request A Quote

Product Details

Product Type:

Differential Pressure Transmitter

Service:

Air And Non-combustible, Compatible Gases.

Accuracy:

±1% FSO

Temperature Limits:

-4 To 158°F (-20 To 70°C)

Pressure Limits:

Ranges 0 And 1: 3.6 Psi (24.8 KPa) Max Operation, 6 Psi (41.3 KPa) Burst; Ranges 2, 3 And 4: 6 Psi (41.3 KPa) Max Operation, 6 Psi (41.3 KPa) Burst

Power Requirements:

10-36 VDC (2-wire), 17-36 VDC Or Isolated 21.6-33 VAC (3-wire).

Highlight:

Dwyer differential pressure transmitter

MSX-W10-PA-COM-LCD pressure sensor

precision differential pressure transducer

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Dwyer SafeTherm TTE-104 Explosion-Proof RTD Temperature Transmitter

Get Best Price

Dwyer LCT216 Digital Timer Tachometer Counter Industrial Multifunction

Get Best Price

UT35A UT32A Temperature Controller with Color LCD Display

Get Best Price

Kromschroder Tightness Control Unit 220-240V AC for Gas Burner Systems

Get Best Price

86--17719566736

Contact Now

Product Description

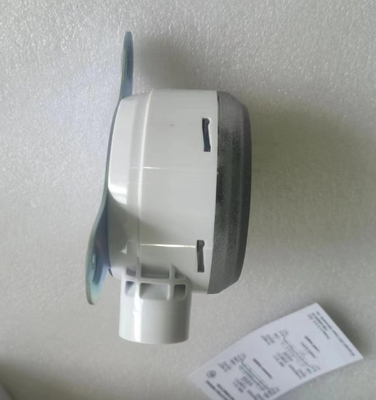

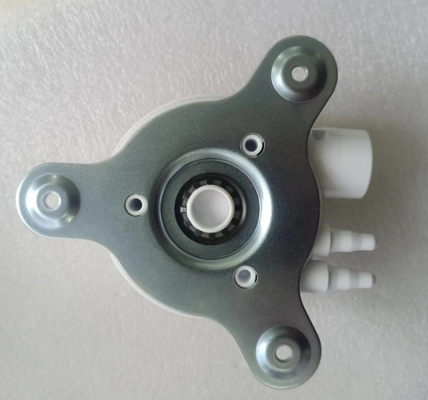

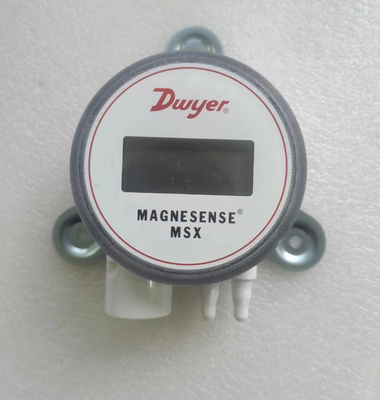

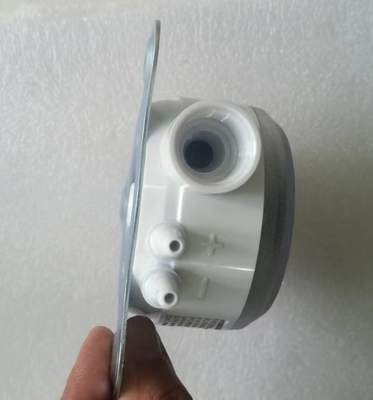

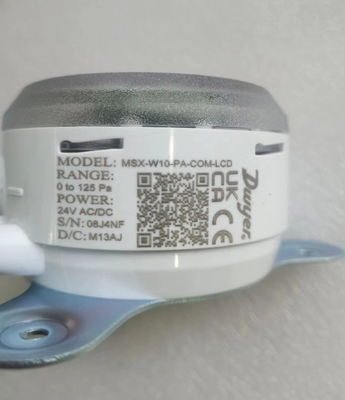

Dwyer MSX-W10-PA-COM-LCD Differential Pressure Transmitter

Product Overview

The Dwyer MSX-W10-PA-COM-LCD is a versatile differential pressure transmitter designed for monitoring differential pressure, air velocity, and volumetric flow in industrial and commercial environments. Part of the comprehensive MSX series, this model offers precise measurements for optimal system performance.

Technical Specifications

Attribute	Value
Product Type	Differential Pressure Transmitter
Service	Air and non-combustible, compatible gases
Accuracy	±1% FSO
Temperature Limits	-4 to 158°F (-20 to 70°C)
Pressure Limits	Ranges 0 and 1: 3.6 psi (24.8 kPa) max operation, 6 psi (41.3 kPa) burst; Ranges 2, 3 and 4: 6 psi (41.3 kPa) max operation, 6 psi (41.3 kPa) burst
Power Requirements	10-36 VDC (2-wire), 17-36 VDC or isolated 21.6-33 VAC (3-wire)

Key Features

Multi-parameter monitoring of differential pressure, air velocity, and volumetric flow
Integrated LCD display for real-time measurement visualization
Communication capability for system integration
High accuracy (±1% FSO) for reliable measurements
Wide operating temperature range (-4 to 158°F/-20 to 70°C)
Versatile power options for different installation requirements

Product Applications
