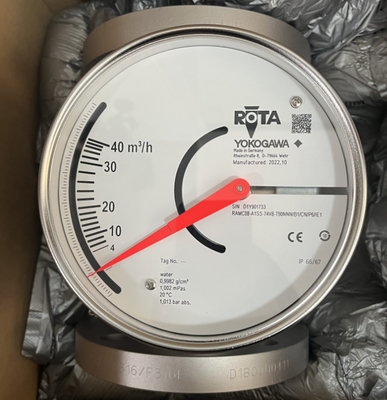

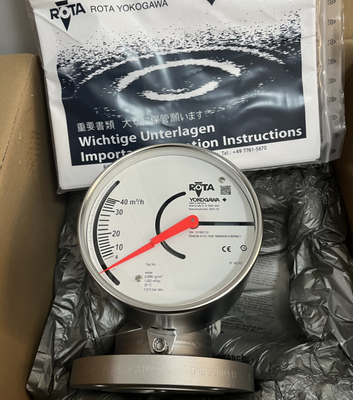

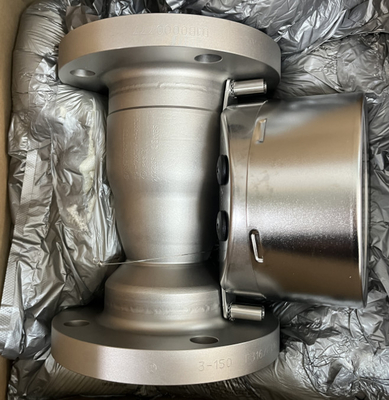

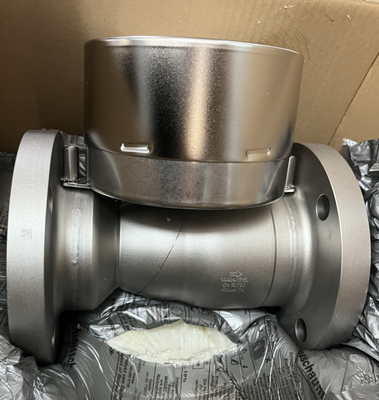

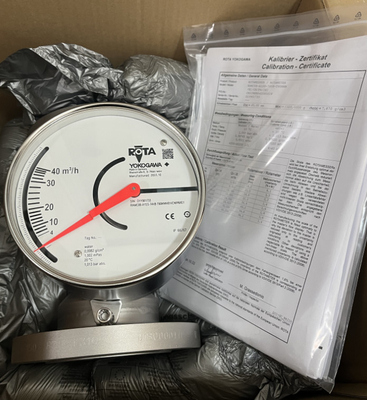

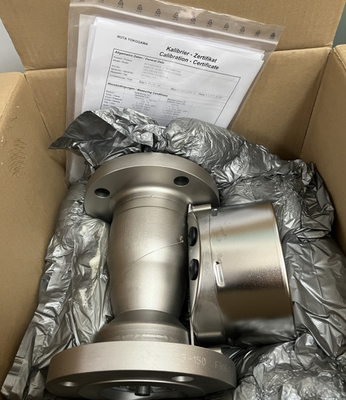

Yokogawa RAMC08 Rotameter Stainless Steel Flow Meter IP66

The Yokogawa Rotameter RAMC08-A1SS-74V8-T90NNN/B1/P6/IE1 is a 100% original metal short-stroke rotameter from the RAMC series. This flow measurement device operates on the variable area principle, featuring a float that moves within a tapered tube to indicate flow rate. Designed for industrial applications, it combines durability, accuracy, and versatility.

• Easy Installation: Simple to install with low costs and high robustness for long service life
• Energy Efficient: Mechanical operation requires no power supply and features low pressure loss
• Versatile Connections: Compatible with all common process connections
• Durable Construction: Wetted parts made of stainless steel or PTFE for corrosion resistance
• Wide Flow Range: 0.0025-130 m³/h for water, 0.075-1400 m³/h for air at standard conditions
• High Accuracy: ±1.6% measuring accuracy according to VDI/VDE 3513 sheet 2
• Float Damping: Prevents float bouncing in gas applications
• Optional Heat Tracing: Available for viscous fluids that may solidify at low temperatures
• Durable Indicator: Stainless steel or aluminum construction with IP66/67 protection
• Advanced Transmitter: Microprocessor-controlled with multiple display options and field calibration
• Hazardous Area Rated: Suitable for use in potentially explosive environments
• SIL Compliance: FMEDA report available for Safety Integrity Level applications
• Communication Options: Standard HART 5/7 or Profibus PA for system integration

This Yokogawa rotameter is ideal for various industrial flow measurement applications requiring reliable performance, including chemical processing, water treatment, oil & gas, and other process industries where accurate flow monitoring is essential.
