Name: Danfoss EMP 2 Precision Pressure Transmitter 084G2109 4-20mA
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 084G2109
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Danfoss EMP 2 Precision Pressure Transmitter 084G2109 4-20mA

Danfoss EMP 2 pressure transmitter

4-20mA precision pressure sensor

084G2109 industrial pressure transmitter

Brand Name:

Danfoss

Certification:

Model Number:

084G2109

Request A Quote

Product Details

Warranty:

1 Year

Standard Or Nonstandard:

Standard

Material:

Cast Iron

After-sales Service Provided:

Online Support

Usage:

Oil

Power:

Hydraulic

Highlight:

Danfoss EMP 2 pressure transmitter

4-20mA precision pressure sensor

084G2109 industrial pressure transmitter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Dwyer SafeTherm TTE-104 Explosion-Proof RTD Temperature Transmitter

Get Best Price

Dwyer LCT216 Digital Timer Tachometer Counter Industrial Multifunction

Get Best Price

UT35A UT32A Temperature Controller with Color LCD Display

Get Best Price

Kromschroder Tightness Control Unit 220-240V AC for Gas Burner Systems

Get Best Price

86--17719566736

Contact Now

Product Description

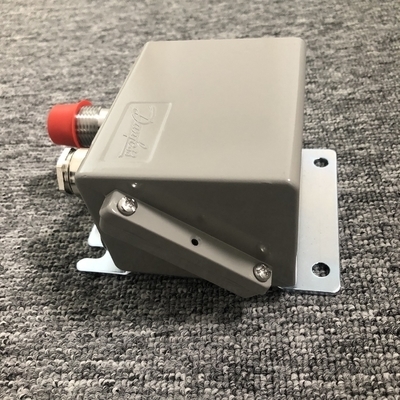

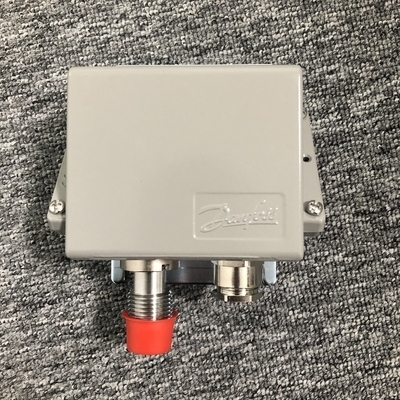

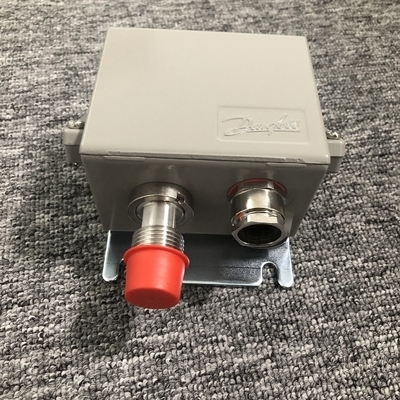

Original Danfoss Precision Pressure Transmitter EMP 2 (Model: 084G2109)

Product Specifications

Warranty 1 Year

Standard Or Nonstandard Standard

Material Cast Iron

After-sales Service Online Support

Usage Oil

Power Hydraulic

Product Overview

The Original Danfoss EMP 2 is a high-precision pressure transmitter designed for monitoring and control in marine and industrial applications. It delivers reliable pressure measurements even under harsh environmental conditions. Part of Danfoss' flexible pressure transmitter lineup, it offers absolute or gauge (relative) pressure versions with zero and span adjustment, and a 4-20 mA output signal.

Key Features

High Precision Measurement: Excellent accuracy with low zero and full-scale thermal drift (<0.06% of full scale/°C) and minimal voltage dependence

Wide Operating Range: -10 to 70°C operating temperature, 0 - 400 bar measuring range with vacuum capability

Flexible Pressure Connections: Standard connections include G ¼, G ½A, and G 3/8 A for easy integration

Adjustable Settings: Zero adjustment (-5 to 20% of range) and span adjustment (5% of range) for precise calibration

Explosion Protection: Suitable for ATEX Zone 2 hazardous areas

Marine Compliance: Meets all relevant marine approvals and classification society requirements

Robust Construction: IP67 rated enclosure resistant to vibration (4g acceleration) and shock (500g for 1 ms)

Pulse-Snubber Option: Special versions handle cavitation, liquid hammer, and pressure peaks

Broad Media Compatibility: Works with water, fuel, oil, lubricants, refrigerants, and natural gas

Electrical Reliability: 12-32 VDC power supply with load resistance up to 410 Ω (24 VDC)

Compact Design: Lightweight (approximately 1 kg) for easy installation in space-constrained environments

Technical Specifications

Output Signal: 4-20 mA

Viscosity Tolerance: Liquid viscosity < 100 dt

Response Time: <4 ms (standard); <35 ms (with pulse snubber)

Zero Thermal Drift: <0.06% of full scale/°C

Storage Temperature: -50 to 70°C

Pressure Connection Types: G ¼, G ½A (standard), G 3/8 A (manometer)

Protection Rating: IP67

Certifications: ATEX Zone 2, marine approvals, EN 60770, EN 61000 series standards
