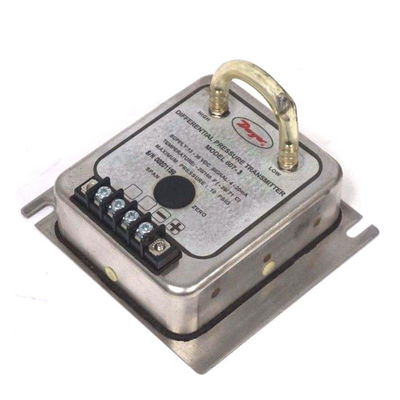

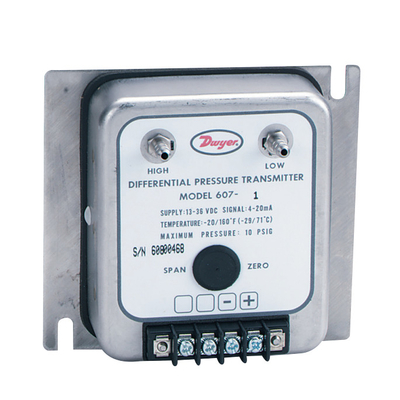

Dwyer 607 Differential Pressure Transmitter 4-20mA Output

The Dwyer Series 607 Differential Pressure Transmitter is a precision instrument designed to convert positive, negative (vacuum), or differential pressures of clean, dry air and other non-conductive, non-corrosive gases into a standard two-wire 4-20 mA DC output signal. Manufactured in the USA, it offers exceptional stability and durability for industrial and commercial applications.

• Low-Range Precision: Measures pressures from 0-0.10" W.C. to 0-25" W.C. (including bidirectional ranges like ±0.10" W.C. to ±5.0" W.C.)
• Stable Performance: Variable capacitance transducer with micro-machined silicon diaphragm ensures minimal drift
• Durable Construction: 300 Series stainless steel housing with NEMA 2 rating
• Overpressure Resistance: Withstands pressure up to 10 psig (0.69 bar)
• Fast Response: Maximum response time of 250 ms
• Flexible Power Supply: Operates on 12-36 VDC
• CE Certified: Complies with European safety and performance regulations

• Service Compatibility: Clean, dry air and non-conductive, non-corrosive gases
• Output Signal: 4-20 mA DC, two-wire system
• Electrical Connections: Screw terminals (cable diameter 6-14 mm recommended)
• Weight: 1.04 lb (472 g)
• Customization: Supports OEM and ODM services
