Name: Rosemount 2088 Absolute Gauge Pressure Transmitter 4-20mA HART
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 2088G3S22D2M5E3T1Q8HR5
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Rosemount 2088 Absolute Gauge Pressure Transmitter 4-20mA HART

Rosemount 2088 pressure transmitter 4-20mA

HART absolute gauge pressure sensor

precision pressure transmitter 4-20mA output

Brand Name:

Rosemount

Certification:

Model Number:

2088G3S22D2M5E3T1Q8HR5

Request A Quote

Rosemount 2088 Absolute Gauge Pressure Transmitter 4-20mA HART

Product Details

Warranty:

1 Year

Output Signal:

4-20mA+HART

Pressure Ranges:

–14.7 To 800 Psi (–1.01 To 55.2 Bar)

Process Connection:

M20 X 1.5 Male

Service:

Liquid, Gas, And Vapor Applications

Power Supply:

10.5–42.4 Vdc

Highlight:

Rosemount 2088 pressure transmitter 4-20mA

HART absolute gauge pressure sensor

precision pressure transmitter 4-20mA output

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Dwyer SafeTherm TTE-104 Explosion-Proof RTD Temperature Transmitter

Get Best Price

Dwyer LCT216 Digital Timer Tachometer Counter Industrial Multifunction

Get Best Price

UT35A UT32A Temperature Controller with Color LCD Display

Get Best Price

Kromschroder Tightness Control Unit 220-240V AC for Gas Burner Systems

Get Best Price

86--17719566736

Contact Now

Product Description

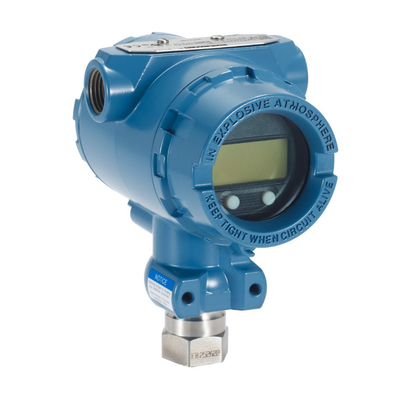

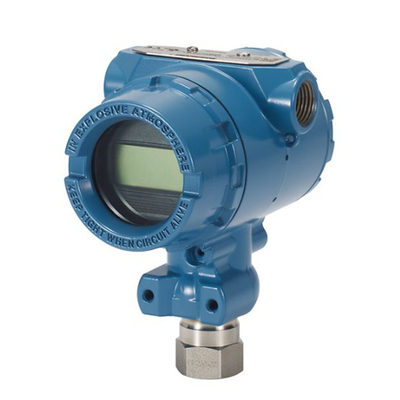

Rosemount 2088 Absolute and Gauge Pressure Transmitter

Product Introduction

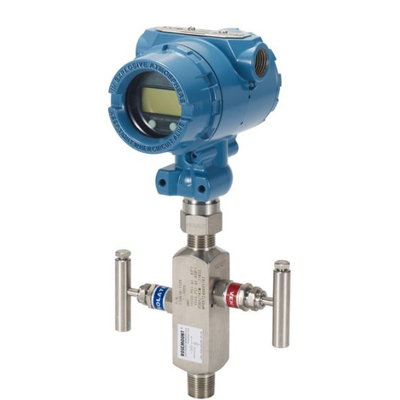

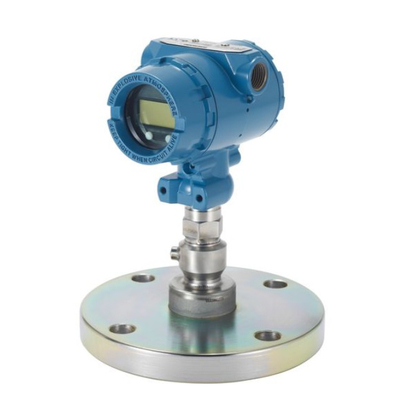

With the Rosemount 2088 Gage and Absolute Pressure Transmitter, you can maintain efficiency with a quick and easy-to-install solution. This transmitter features a Local Operator Interface (LOI) with intuitive menus and built-in configuration buttons, enabling on-the-spot commissioning without complex tools. Available with manifolds and remote seals for versatile installation.

Key Features

High accuracy option with 0.065% performance
Lightweight, compact design for cost-effective installation
Protocols include 4-20 mA HART® and 1-5 Vdc HART Low Power
Absolute and gauge pressure ranges up to 4,000 psi (276 bar)
50:1 rangeability for versatile applications

Technical Specifications

Warranty	1 Year
Customized Support	OEM, ODM
Brand Name	Emerson
Model Number	2088G3S22D2M5E3T1Q8HR5
Output Signal	4-20mA+HART
Measurement Type	Gauge
Pressure Ranges	-14.7 to 800 psi (-1.01 to 55.2 bar)
Process Connection	M20 x 1.5 male
Service	Liquid, gas, and vapor applications
Power Supply	10.5-42.4 Vdc
Indication	Optional two-line LOI/LCD display
Ambient Temperature	-40 to 185 °F (-40 to 85 °C)
Humidity	0-100% relative humidity
