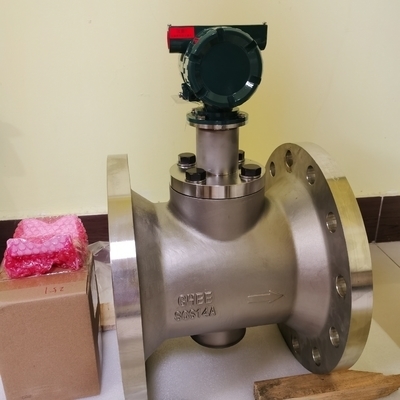

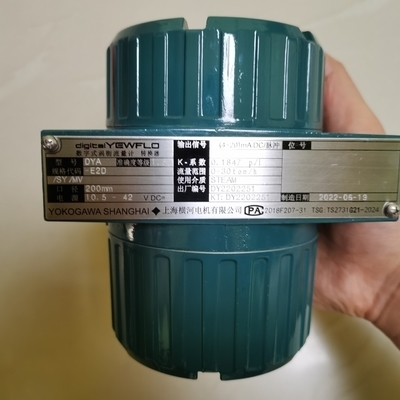

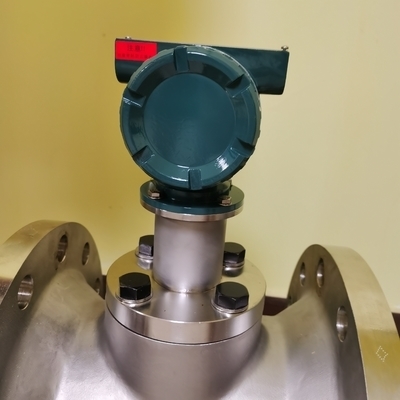

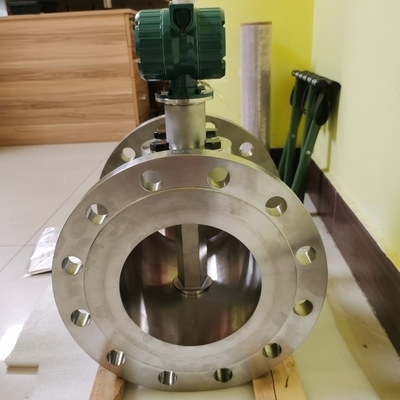

Name: YOKOGAWA Digital YEWFLO Vortex Flowmeter With FOUNDATION Fieldbus
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: DYA-E2D
Price: 499.00 USD
Availability: InStock

Home > Products > Vortex Flow Meter >

YOKOGAWA Digital YEWFLO Vortex Flowmeter With FOUNDATION Fieldbus

YOKOGAWA vortex flowmeter FOUNDATION Fieldbus

digital YEWFLO flowmeter precision sensor

vortex flowmeter industrial pressure measurement

Brand Name:

YOKOGAWA

Certification:

Model Number:

DYA-E2D

Request A Quote

YOKOGAWA Digital YEWFLO Vortex Flowmeter With FOUNDATION Fieldbus

Product Details

Type:

Variable Area Water Flowmeters

Temperature Range:

-196°C To +450°C

Caliber:

200 Mm

Power Supply:

10.5-42VDC

Flow Range:

0-30 Ton/h

Medium:

Steam

Highlight:

YOKOGAWA vortex flowmeter FOUNDATION Fieldbus

digital YEWFLO flowmeter precision sensor

vortex flowmeter industrial pressure measurement

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

steam vortex flow meter/compressed air flow meter/ with 4~20mA output

Get Best Price

Battery Powered Vortex Liquid Butane Flow Meter with protection grade IP68

Get Best Price

KVF Series Vortex Flowmeter Vortex Meter Vortex Flow Meter with keywords natural gas flow meter

Get Best Price

Digital vortex target flow meter with Power supply 24VDC and 3*1.2V battery or AC90 ~260V power adapter

Get Best Price

Contact Now

Product Description

YOKOGAWA Digital YEWFLO Vortex Flowmeter With FOUNDATION Fieldbus

Product Specifications

Attribute	Value
Type	Variable Area Water Flowmeters
Temperature Range	-196°C To +450°C
Caliber	200 Mm
Power Supply	10.5-42VDC
Flow Range	0-30 Ton/h
Medium	Steam

Product Overview

The YOKOGAWA digitalYEWFLO Vortex Flowmeter (Models: DY Vortex Flowmeter, DYA Vortex Flow Converter) with FOUNDATION Fieldbus Communication is part of the OpreX Field Instruments family under the OpreX Measurement category. This high-performance flow measurement solution is designed for liquids, gases, and steam, combining a field-proven sensor and body assembly (with over 450,000 units installed worldwide) with advanced digital technology including Yokogawa's proprietary Spectral Signal Processing (SSP).

Key Features

Multi-Fluid Compatibility: Measures flow rates of liquids, gases, saturated steam, and superheated steam (avoids multi-phase or adhesive fluids), adapting to diverse industrial processes.
SSP Technology: Yokogawa's exclusive Spectral Signal Processing enhances vibration resistance and enables advanced self-diagnosis, ensuring reliable measurements in dynamic environments.
No Moving Parts: Simple, robust structure with no moving components reduces wear and maintenance needs, improving durability and longevity.
Zero Adjustment Not Required: Sensor detects frequency directly, with zero output at zero flow, eliminating the need for manual zero calibration.
Broad Communication Support: Compatible with FOUNDATION Fieldbus, HART 7/5, and BRAIN protocols, facilitating real-time data transmission and remote control.
Explosion Protection: Certified for multiple explosion protection standards (TIIS Ex d, FM Ex d/Ex ia, ATEX Ex db/Ex ia, CSA Ex d/Ex ia, IECEx Ex db/Ex ia), ensuring safety in hazardous areas.

Reduced Bore Type Enhancements

The Reduced Bore Type integrates the flowmeter with a concentric reducer, offering unique advantages for low-flow and variable-flow applications:

Simplified Installation: Eliminates the need for separate reducers, expanders, or short pipes for straight pipe length, reducing connection points by up to 70% and lowering leakage risk.
Extended Low-Flow Measurement: Expands the lower measurement limit by 2-3 times compared to standard types, enabling accurate low-flow detection without downsizing the main pipe.
Cost and Safety Benefits: Reduces installation costs, minimizes fluid leakage risks, and eliminates the need to stop processes for flow range adjustments.

Two Reducer Options:

/R1: Detector bore size reduced by 1 size from the flange piping.
/R2: Detector bore size reduced by 2 sizes, ideal for ultra-low flow rates.

Technical Specifications

Process Temperature: Standard Type: -29 to 250°C; High-Temperature Version: up to 450°C.

Process Pressure: -0.1 MPa to flange rating (varies by model).

Diameters:

Standard Type: Wafer (15-100 mm), Flange (15-400 mm)
Reduced Bore Type: Flange (25-200 mm) with /R1 or /R2 reducers

Accuracy:

Liquids: ±0.75% of reading (depends on Reynolds number)
Gases/Steam: ±1.0% of reading (depends on flow velocity)

Applications

Standard Type: Ideal for wide flow ranges in boilers, chemical processing, and utility systems.
Reduced Bore Type: Suitable for steam supply lines, seasonal flow-variable systems, and low-flow processes in textiles, food, and building materials manufacturing.
Multi-Variable Combination: Enables direct mass flow measurement of saturated steam, even at low flow rates.
