Name: Emerson Rosemount 3051TG HART Gauge Pressure Transmitter with 4-20 mA Output, 0.5% FS Accuracy, and SIL 2/3 Certification
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 3051TG3A2B21AB4
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

Emerson Rosemount 3051TG HART Gauge Pressure Transmitter with 4-20 mA Output, 0.5% FS Accuracy, and SIL 2/3 Certification

HART pressure transmitter 4-20mA

Rosemount 3051TG pressure sensor

industrial pressure transmitter HART

Brand Name:

Rosemount

Certification:

Model Number:

3051TG3A2B21AB4

Request A Quote

Emerson Rosemount 3051TG HART Gauge Pressure Transmitter with 4-20 mA Output, 0.5% FS Accuracy, and SIL 2/3 Certification

Product Details

Model:

3051T¹- In-Line Pressure Transmitter

Pressure Type:

G - Gage

Transmitter Output:

4-20 MA

Operate Temperature:

-20~80°C

Pressure Range:

1-600bar

Accuracy:

0.5%FS; 1%FS

Highlight:

HART pressure transmitter 4-20mA

Rosemount 3051TG pressure sensor

industrial pressure transmitter HART

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell GSS Series EN50041 and EN50047 Standards Safety Switch with Positive Opening Normally Closed Contacts and UL CSA CE SIL3 Certification

Get Best Price

Honeywell Model LC Digital Force Indicator with 50,000 lb Range Stainless Steel Diaphragm and Peak Capture Feature

Get Best Price

Dwyer Series 2000 Industrial Pressure Gauge with ±2% Accuracy, IP67 Enclosure Rating, and 4" Dial Face

Get Best Price

Dwyer AtmosphereGuard RHP Humidity/Temperature Transmitter with Dual-Parameter Sensing, Wide Power Input Range, and User-Friendly LCD Display

Get Best Price

Contact Now

Product Description

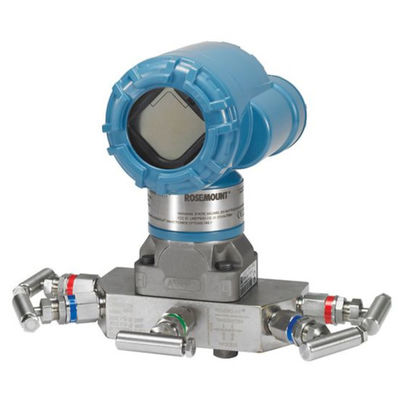

Emerson Rosemount 3051TG HART 4-20 mA Pressure Transmitter

The Emerson Rosemount 3051TG is an in-line pressure transmitter designed for precise gauge pressure measurement, serving as an industry standard for reliable performance in industrial applications. Combining proven sensor and electronics technologies with a single isolator design, it offers absolute and gauge pressure measurements from 0.3 to 10,000 psi (with extended ranges up to 20,000 psi for specific configurations).

Key Features

High Accuracy and Rangeability: Accuracy of 0.5% FS and 1% FS, with rangedown up to 150:1, ensuring precise measurements across wide pressure spectrum (1-600 bar for 3051TG3A2B21AB4 model)
Flexible Communication: Supports 4-20 mA with HART protocol, WirelessHART®, FOUNDATION fieldbus, PROFIBUS, and low-power 1-5 Vdc HART for versatile integration
Robust Construction: 316L stainless steel and Hastelloy C process isolation diaphragms with silicon oil or inert oil filling fluids for media compatibility
Advanced Diagnostics: Includes basic diagnostics and Loop Integrity monitoring; optional Power Advisory (Option Code DA0) for proactive electrical loop integrity detection
Safety Certifications: SIL 2/3 certified to IEC 61508 with NSF, NACE®, and hazardous location ratings for safety-critical environments
User-Friendly Setup: Local Operator Interface (Option Code M4) with straightforward menus and built-in configuration buttons
Wide Operating Range: Functions in temperatures from -20 to 80°C, with maximum working pressures of 16MPa, 25MPa, or 40MPa

Applications

Chemical processing, oil and gas, and power generation
High-pressure systems (up to 40MPa) with corrosive or inert media
Safety-critical applications (SIL 2/3 compliant) and environments with extreme temperatures
Integration with pumps, valves, and pipelines where direct in-line mounting simplifies installation
