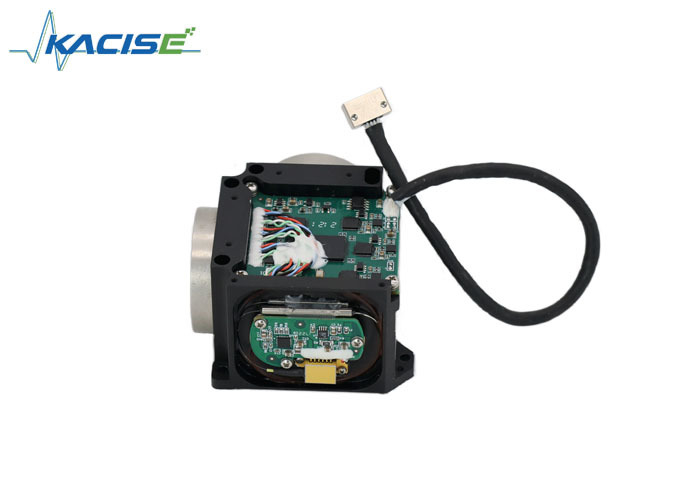

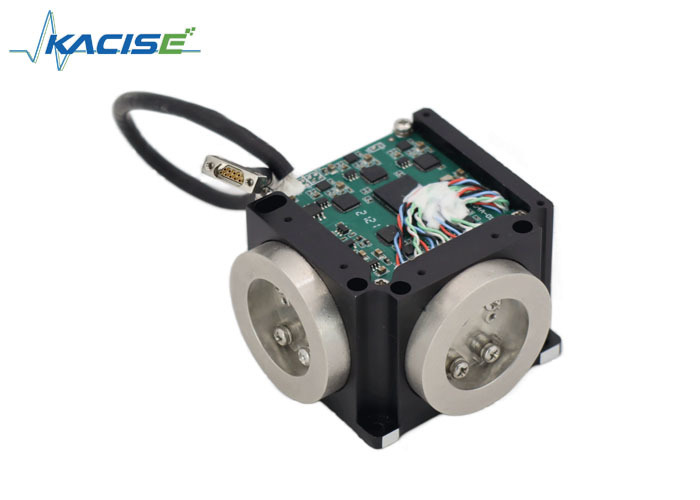

KSGYR312F Three Axis Fiber Optic Gyroscope

Product Overview

The KSGYR312F is an inertial angle rate sensor based on the optical Sagnac effect, designed to measure rotational angular velocity along three sensitive axes. Utilizing digital closed-loop detection technology, it precisely extracts optical path differences caused by external angular velocity, providing real-time angular velocity signal detection.

Key Attributes

Attribute	Value
Supply voltage	+5V
Dimensions	71.5×68×45mm
Start time	≤3s
Bias (100s smooth, fix temperature)	≤0.1°/h
Power dissipation (full temperature)	<4W
Weight	<320g

Product Features

Accurately measures angular velocity of moving objects
All-solid-state design with no rotating or friction parts
Extended operational lifespan
Instantaneous startup capability
Simple, robust structure
Simultaneous three-axis angular velocity measurement

Applications

Photoelectric elevator systems
Flight control platforms
Strapdown inertial navigation
Optical and photographic instruments
Platform stabilizers
Inertial measurement instruments

Technical Specifications

Power Supply Parameters

Supply voltage

+5V

Performance Characteristics

Dimensions	71.5×68×45mm
Start time	≤3s
Bias (100s smooth, fix temperature)	≤0.1°/h
Bias stability (100s smooth -45°C~+70°C)	≤0.5°/h
Bias repeatability	≤0.1°/h
Random walk	≤0.01°/h1/2
Scale factor non-linearity	≤20ppm
Scale factor repeatability	≤10ppm
Dynamic range	±500°/s
Power dissipation (full temperature)	<4W
Weight	<320g

Environmental Specifications

Operate temperature	-45°C～+70°C
Storage temperature	-50°C～+80°C
