Name: KSINS004C Fiber Optic Inertial Navigation System 18-32VDC <20W
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSINS004C
Price: 5,000.00 USD
Availability: InStock

Home > products > Water Quality Sensor >

KSINS004C Fiber Optic Inertial Navigation System 18-32VDC <20W

Fiber Optic Inertial Navigation System 18-32VDC

Fiber Optic Accelerometer Sensor <20W

Inertial Navigation System with warranty

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KSINS004C

Request A Quote

Product Details

Power Voltage:

18~32VDC

Power:

<20W

Position Accuracy:

<0.05%D；<0.5nmile/h

Attitude Accuracy:

<0.02°

Heading Accuracy:

<2mil

Highlight:

Fiber Optic Inertial Navigation System 18-32VDC

Fiber Optic Accelerometer Sensor <20W

Inertial Navigation System with warranty

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

KFDO310 Online Fluorescence Dissolved Oxygen Sensor no electrolytes no polarization no need to consume oxygen

Get Best Price

KFDO310 Online Fluorescence Dissolved Oxygen Sensor no electrolytes no polarization no need to consume oxygen

Get Best Price

PPM RS485 fishpound electrode Optical Dissolved Oxygen Sensor

Get Best Price

RS485 output Dissolved Oxygen Sensor Water Quality Sensor IP68 Grade For Shrimp Farm

Get Best Price

86--17719566736

Contact Now

Product Description

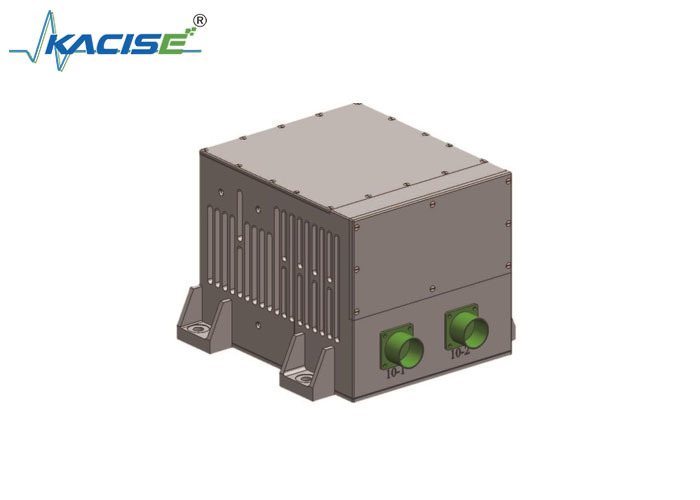

KSINS004C Fiber Optic Strapdown Inertial Navigation System

Key Specifications

Attribute	Value
Power Voltage	18~32VDC
Power	<20W
Position Accuracy	<0.05%D; <0.5nmile/h
Attitude Accuracy	<0.02°
Heading accuracy	<2mil

Product Overview

The KSINS004C fiber optic gyro strapdown navigation system is built on a universal fiber optic inertial navigation platform. Designed with adaptability in mind, this system can be easily modified to meet specific user requirements while maintaining short development cycles, high maturity, and excellent reliability.

Key Features

Utilizes domestic fiber optic gyroscope and quartz flexible accelerometer technology
Type 70 fiber optic gyroscope with bias stability better than 0.05°/h (1σ)
Accelerometer bias stability better than 50µg (1σ)
Supports both static and dynamic base alignment methods with optional self-alignment or transfer alignment
Capable of integrated navigation with external systems including satellite navigation, speedometers, odometers, and altimeters

Applications

Land navigation systems
Marine navigation
Unmanned aerial vehicles (UAVs)

Technical Specifications

Power Supply Parameters

Power Voltage	18~32VDC
Power	<20W

Navigation Performance

Position Accuracy	<0.05%D; <0.5nmile/h
Attitude Accuracy	<0.02°
Heading accuracy	<2mil
Circular Error Probable (CEP)	<0.1m
Velocity Accuracy	<1m/s
Alignment Time	<5min

Gyroscope Specifications

Bias stability	≤ 0.03°/h; ≤ 100μg
Bias repeatability	≤ 0.03°/h; ≤ 50μg
Scale factor temperature sensitivity	30ppm; 50ppm
Random walk	≤ 0.002°/√h

Accelerometer Specifications

Bias stability	≤ 100μg
Bias repeatability	≤ 50μg
Scale factor repeatability	50ppm
Scale factor temperature sensitivity	50ppm

Environmental Specifications

Operating temperature	-40~+65°C
Random vibration	GJB150.16A-2009.C.3
Shock	30g, 11ms

Physical Specifications

Output Interfaces	RS-422/RS-232 × 2; Ethernet; Built-in satellite receiver (optional); Odometer interface; Altimeter interface; Speedometer interface
Dimensions	190×150×140mm
Weight	<4kg
