Product Description

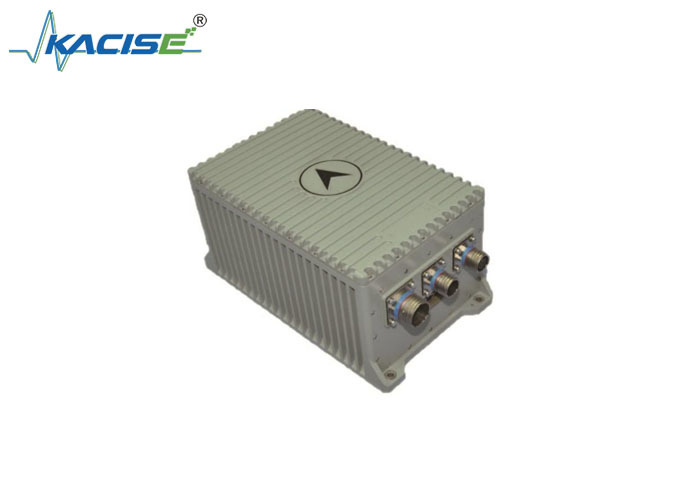

KSINS003C Type Optical Fiber Strapdown Inertial Navigation System

Product Overview

The KSINS003C fiber optic gyroscope strapdown navigation system is built on a universal fiber optic inertial navigation platform. Designed with adaptability in mind, it offers short development cycles, high maturity, and excellent reliability. All components including gyroscopes, accelerometers, and circuits are sourced from existing, proven shelf products.

Key Specifications

Attribute	Value
Power Voltage	18~32VDC
Power Consumption	<20W
Position Accuracy	<0.05%D; <0.5nmile/h
Attitude Accuracy	<0.02°
Heading Accuracy	<1mil

Key Features

Utilizes domestic fiber optic gyroscope and quartz flexible accelerometer
Type 90 fiber optic gyroscope bias stability better than 0.01°/h (1σ)
Accelerometer bias stability better than 50µg (1σ)
Compatible with both static and dynamic base alignment methods
Supports integration with external navigation systems (GPS, speedometers, altimeters, etc.)

Applications

Land navigation systems
Marine navigation
Unmanned aerial vehicles (UAVs)

Technical Specifications

Power Supply Parameters
Power Voltage	18~32VDC
Power Consumption	<20W
Navigation Performance
Position Accuracy	<0.05%D; <0.5nmile/h
Attitude Accuracy	<0.02°
Heading Accuracy	<1mil
Circular Error Probable (CEP)	<0.1m
Velocity Accuracy	<1m/s
Alignment Time	<5min
Gyroscope Specifications
Bias stability	≤ 0.01°/h; ≤ 100μg
Bias repeatability	≤ 0.01°/h; ≤ 50μg
Scale factor temperature sensitivity	30ppm; 50ppm
Random walk	≤ 0.001°/√h
Accelerometer Specifications
Bias stability	≤ 100μg
Bias repeatability	≤ 50μg
Scale factor repeatability	50ppm
Scale factor temperature sensitivity	50ppm
Environmental Specifications
Operating temperature	-40~+65°C
Random vibration	GJB150.16A-2009.C.3
Shock resistance	30g, 11ms
Physical Specifications
Output interfaces	RS-422/RS-232 × 2; Ethernet; Built-in satellite receiver; Odometer; Altimeter; Speedometer
Dimensions	230×150×140mm
Weight	<6kg
