Name: KSINS001C Laser Strapdown Inertial Navigation System 18-32VDC
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSINS001C
Price: 5,000.00 USD
Availability: InStock

Home > products > Water Quality Sensor >

KSINS001C Laser Strapdown Inertial Navigation System 18-32VDC

Laser Strapdown Inertial Navigation System

Inertial Navigation System 18-32VDC

Water Quality Sensor with warranty

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KSINS001C

Request A Quote

Product Details

Power Voltage:

18~32VDC

Power:

<40W

Position Accuracy:

<0.05%D；<0.5nmile/h

Attitude Accuracy:

<0.02°

Heading Accuracy:

<0.3mil

Highlight:

Laser Strapdown Inertial Navigation System

Inertial Navigation System 18-32VDC

Water Quality Sensor with warranty

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

KFDO310 Online Fluorescence Dissolved Oxygen Sensor no electrolytes no polarization no need to consume oxygen

Get Best Price

KFDO310 Online Fluorescence Dissolved Oxygen Sensor no electrolytes no polarization no need to consume oxygen

Get Best Price

PPM RS485 fishpound electrode Optical Dissolved Oxygen Sensor

Get Best Price

RS485 output Dissolved Oxygen Sensor Water Quality Sensor IP68 Grade For Shrimp Farm

Get Best Price

86--17719566736

Contact Now

Product Description

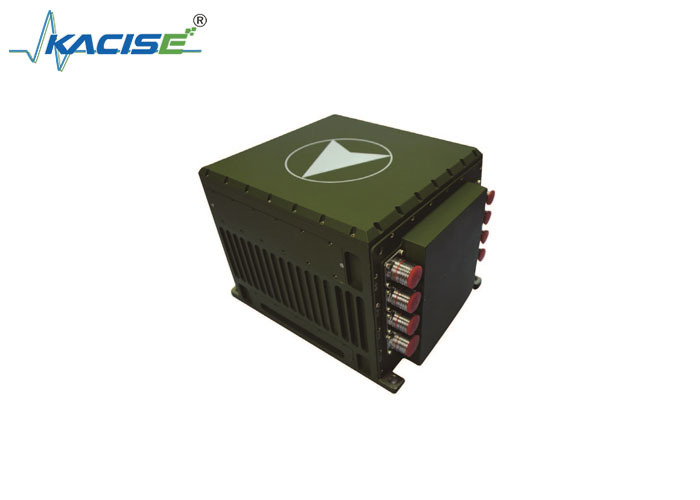

KSINS001C Laser Strapdown Inertial Navigation System

Key Specifications

Attribute	Value
Power Voltage	18~32VDC
Power	<40W
Position Accuracy	<0.05%D; <0.5nmile/h
Attitude Accuracy	<0.02°
Heading accuracy	<0.3mil

Product Overview

The KSINS001C inertial navigation system is a standard high-precision laser strapdown inertial navigation system, featuring small size, light weight, high precision and good reliability. It can meet the needs of long-term autonomous navigation in complex environments.

Key Features

15kg-class lightweight high-precision laser strapdown product, 40% lighter than traditional products
Utilizes domestically produced high-precision spatial three-axis laser gyroscopes and quartz flexible accelerometers
Gyroscope bias stability better than 0.001°/h (1σ)
Accelerometer bias stability better than 30μg (1σ)
Supports static and dynamic base alignment with multiple alignment options
Capable of fusing with satellite, odometer, altimeter and star sensor data for integrated navigation

Applications

• Land Use

• Marine Navigation

• Unmanned Aerial Vehicles

Technical Specifications

Power Supply Parameters
Power Voltage	18~32VDC
Power	<40W
Product Performance
Position Accuracy	<0.05%D; <0.5nmile/h
Attitude Accuracy	<0.02°
Heading accuracy	<0.3mil
Circular Error Probable (CEP)	<0.1m
Velocity Accuracy	<0.6m/s
Alignment Time	<5min
Gyroscope Specifications
Bias stability	≤ 0.001°/h; ≤ 30μg
Bias repeatability	≤ 0.001°/h
Scale factor temperature sensitivity	5ppm; 50ppm; 50ppm
Random walk	≤ 0.0005°/√h
Accelerometer Specifications
Bias stability	≤ 30μg
Bias repeatability	≤ 30μg
Scale factor repeatability	50ppm
Scale factor temperature sensitivity	50ppm
Environmental Specifications
Operating temperature	-40~+65°C
Random vibration	GJB150.16A-2009.C.3
Shock	30g,11ms
Interfaces
Output	RS-422 × 2; RS-232 × 1; Ethernet interface; CAN bus interface; Odometer interface × 1; Altimeter interface; Speedometer interface
Physical Specifications
Size	300×250×220mm
Weight	<15kg
