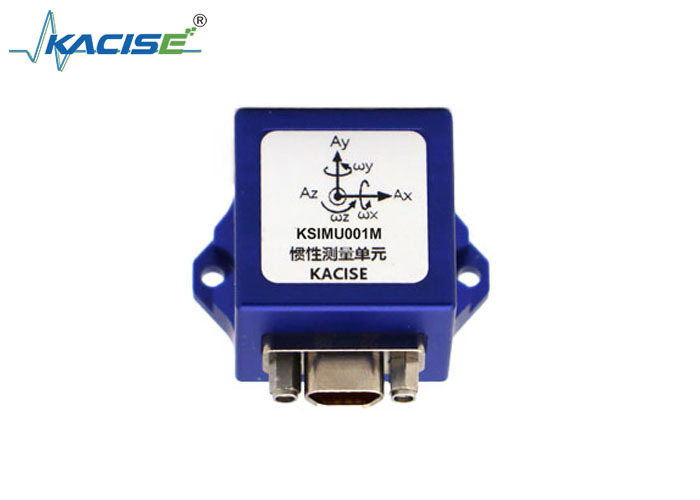

Name: KSIMU001M Digital Inertial Measurement Unit 5V DC ±200°/s
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSIMU001M
Price: 478.00 USD
Availability: InStock

Home > products > Accelerometer Sensor >

KSIMU001M Digital Inertial Measurement Unit 5V DC ±200°/s

Digital Inertial Measurement Unit 5V DC

IMU sensor ±200°/s range

Accelerometer sensor with 5V power

Place of Origin:

CHINA

Brand Name:

kacise

Certification:

Model Number:

KSIMU001M

Request A Quote

Product Details

Supply Voltage:

5V DC±5%

Power Consumption:

≤0.5W @5V DC

Full Scale:

±200(optional)°/s

Bias:

≤±0.1°/s

Bias Stability:

≤10°/s

Highlight:

Digital Inertial Measurement Unit 5V DC

IMU sensor ±200°/s range

Accelerometer sensor with 5V power

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

KSIMU005M Three Axis Quartz IMU MEMS Accelerometer Sensor

Get Best Price

KSINS010C Laser Inertial Navigation System 0.5nmile/h Accuracy

Get Best Price

Quartz acceleration sensors for microgravity measurement devices with Threshold ≤1 (μg) and Resolution ≤1 (μg)

Get Best Price

Quartz accelerometers for vibration detection with Bias ≤5mg and Bias One-month Composite Repeatability ≤30(μg)

Get Best Price

86--17719566736

Contact Now

Product Description

KSIMU001M Universal Digital Inertial Measurement Unit

Key Specifications

Attribute	Value
Supply voltage	5V DC±5%
Power consumption	≤0.5W @5V DC
Full Scale	±200(optional)°/s
Bias	≤±0.1°/s
Bias stability	≤10°/s

Product Overview

The KSIMU001M Inertial Measurement Unit is a high-performance, cost-effective solution for navigation, control, and dynamic measurement applications. Featuring a sealed design, this unit delivers precise angular velocity and acceleration measurements even in demanding environments.

Key Features

Low cost, compact design
Wide operating temperature range (-40°C to +85°C)
Broad power input compatibility with digital output
Robust construction for enhanced reliability
Fast startup capability
Low power consumption

Applications

Automotive electronics
Aircraft guidance and control systems
Attitude reference systems
Platform stabilization
Robotics and antenna stabilization

Technical Specifications

Power Supply Parameters
Supply voltage	5V DC±5%
Power consumption	≤0.5W @5V DC
Physical Characteristics
Size	Ф39.5×22mm, Ф39.5×28.5mm, 26.5×26.5×23.5mm
Weight	≤100g
Performance Parameters
Heading	±180°
Roll	±180°
Pitch	±90°
Pitch Accuracy	0.3°
Environmental Specifications
Operating temperature	-40°C～+70°C
Storage temperature	-55°C～+85°C
Vibration	6 g @ 20～2000 Hz
Shock	8000 g, 0.5 ms, 1/2 Sine
