Name: Honeywell Model 811FM Two-wire Pressure Transducer with 4 mA to 20 mA Output and 0.25% Accuracy（Part Number：060-1042-03-03）
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Model 811FM
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

Honeywell Model 811FM Two-wire Pressure Transducer with 4 mA to 20 mA Output and 0.25% Accuracy（Part Number：060-1042-03-03）

Two-wire Pressure Transducer

4 mA to 20 mA output Pressure Transducer

0.25% accuracy Pressure Transducer

Brand Name:

Honeywell

Model Number:

Model 811FM

Request A Quote

Product Details

Highlight:

Two-wire Pressure Transducer

4 mA to 20 mA output Pressure Transducer

0.25% accuracy Pressure Transducer

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,T/T,D/P,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell 434/435/437 Series Wing Union Hammer Union Pressure Transducer（Part Number：060-F827-02/060-P187-04）

Get Best Price

Honeywell Model 437 Precision Pressure Sensor with 9 Vdc to 28 Vdc Supply Voltage Stainless Steel Assembly and Inconel X-750 Wetted Diaphragm（Part Number：BP437）

Get Best Price

Honeywell Model S（Part Number ：060-1542-01G/060-1542-02G/060-1542-13G/060-1542-15G)

Get Best Price

Honeywell Model TJE Mid（Part Number ：060-0741-08TJD）

Get Best Price

86--17719566736

Contact Now

Product Description

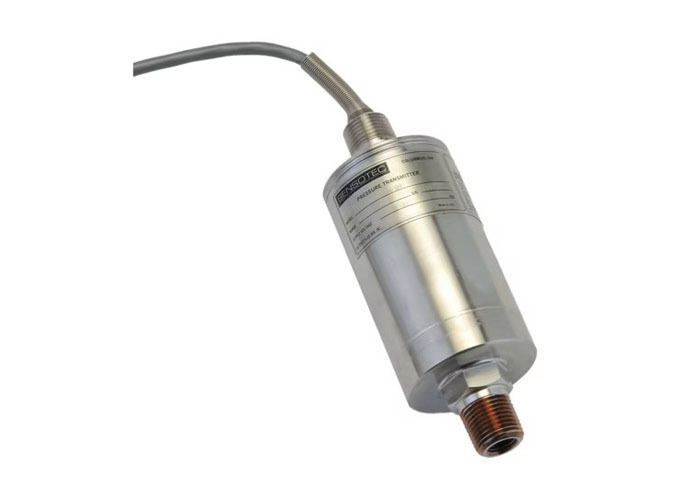

Honeywell Model 811FM PRESSURE TRANSDUCERS(Part Number:060-1042-03-03)

Two-wire. Gage/absolute pressure transmitter. psig/a to 10,000 psig/a. 4 mA to 20 mA output. 0.25% accuracy. True gage design hermetic. Honeywell Model 811FM Two-wire Pressure Transducer with 4 mA to 20 mA Output and 0.25% Accuracy（Part Number：060-1042-03-03） 0

The Model 811FM is a two-wire transmitter featuring welded stainless steel diaphragms suitable for use with liquid, gas or corrosive vapors. Manufactured from 17-4 PH stainless steel wetted material for ranges up to 2,000 psi or 15-5 PH stainless steel for ranges 2,000 psi and greater. This model features a hermetically-sealed, stainless steel case requiring no adjustment. These transducers are corrosion and shock resistant with reverse polarity protection. The 4 mA to 20 mA output enables long cable runs with high signal-to-noise ratio. Includes dual pipe thread pressure fitting for easy bulkhead mounting.

Key Features

2 psig/a to 10000 psig/a range
Bulkhead mounting
All welded, stainless steel, "true gage or absolute" design
Explosion proof
0.25% accuracy

Specifications

Industry	Energy
Manufacturing	Utilities
