High Purity Water pH Sensor with Digital Communication and Pt1000 Temperature Compensation

Pt1000 pH Sensor

SENCOM4.0 Water Quality Sensor

SA11 Adapter PH8EHP Sensor

Request A Quote

High Purity Water pH Sensor with Digital Communication and Pt1000 Temperature Compensation

Product Details

Measuring Temperature:

0 To 50℃

Measuring Pressure:

Atmospheric Pressure

Temperature Compensation Sensor:

Pt1000

Weight:

Approx. 0.4 Kg

Digital Communication Function:

Support SENCOM4.0 (Variopin Connector And SA11 Adapter Connected)

Highlight:

Pt1000 pH Sensor

SENCOM4.0 Water Quality Sensor

SA11 Adapter PH8EHP Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KWS-850 Multi-parameter Water Quality Sensor with RS-485(Modbus/RTU) Output, Automatic Cleaning, and ±0.1pH Accuracy for Wastewater Treatment

Get Best Price

Portable Conductivity Meter SC92 with IP67 Waterproof, Wide Measuring Range, and Large Backlit Display

Get Best Price

KSM-150B Wall Mounted Residual Chlorine Meter with Non-Membrane Sensor and 4-20mA Output

Get Best Price

Video

KWS-850 Online Multi-Parameter Water Quality Sensor with RS-485 Modbus/RTU, Automatic Cleaning, and ±0.1pH Accuracy

Get Best Price

Contact Now

Product Description

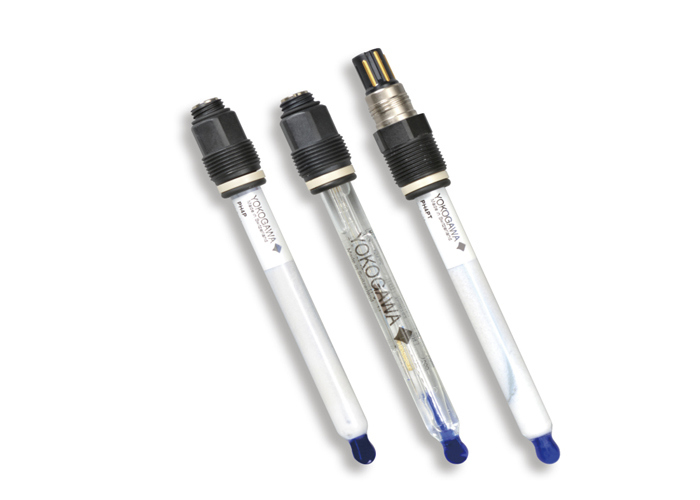

pH Sensor for High Purity Water PH8EHP

Yokogawa's process pH Analyzers are highly reliable and feature advanced functions for a wide variety of applications including water quality management in production processes, medium-sized wastewater treatment plants, and general purpose pH control systems. Based on Yokogawa's extensive experience, a comprehensive range of products provides solutions tailored to individual applications.

The PH8EHP pH sensor and PH8HH holder perform reliable measurement of pH for high purity water used in boilers and semiconductor process applications. While pH/ORP sensors were traditionally used as analog detectors, they can now function as digital detectors (with Variopin connector) by installing the SENCOM Smart Adapter SA11.

Key Features

The dedicated holder provides solutions to problems that arise when measuring high-purity water
Combined with the PH450G and PH202 pH/ORP analyzers, it compensates for the effect of fluid temperature
By combining pH and ORP sensor with SENCOM Smart Adapter SA11, it becomes a digital detector

pH Sensor PH8EHP for High Purity Water

Measuring temperature	0 to 50℃
Measuring pressure	Atmospheric pressure
Temperature compensation sensor	Pt1000
Weight	Approx. 0.4 kg
Digital communication function	Support SENCOM4.0 (Variopin connector and SA11 adapter connected)

Holder PH8HH for High Purity Water

Material	Acrylic resin, 316SS, chloroprene rubber
Process connections	Inlet: Rc1/4 or 1/4NPT (F) Outlet: Rc1/2 or 1/2NPT (F)
Mounting method	50A (2-inch) vertical or horizontal pipe mounting or wall mounting (Specify mounting bracket)
Weight	Approx. 1.7 kg
