Product Description

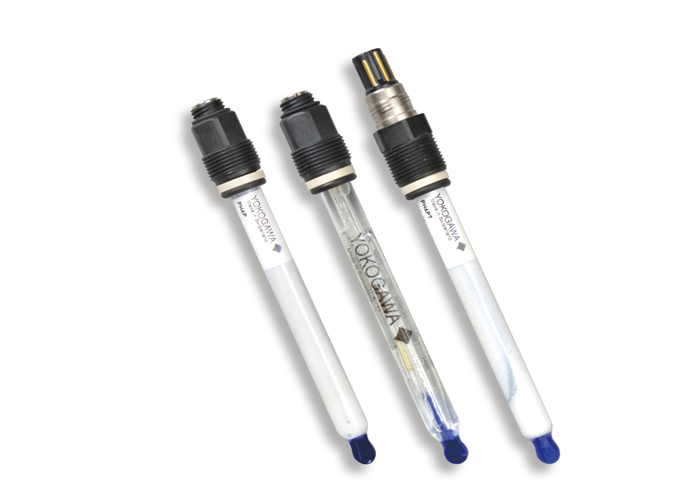

pH Sensor for High Purity Water PH8EHP

Yokogawa's process pH Analyzers are highly reliable and feature advanced functions for water quality management in production processes, wastewater treatment plants, and general purpose pH control systems. Based on years of experience, Yokogawa offers comprehensive solutions tailored to specific applications.

The PH8EHP pH sensor and PH8HH holder provide reliable pH measurement for high purity water used in boilers and semiconductor processes. When combined with the SENCOM Smart Adapter SA11, these sensors can function as digital detectors with Variopin connectors.

Key Features

Dedicated holder solves measurement challenges in high-purity water applications
Temperature compensation when used with PH450G and PH202 pH/ORP analyzers
Digital detection capability when combined with SENCOM Smart Adapter SA11

Technical Specifications

1. pH Sensor PH8EHP for High Purity Water

Parameter	Specification
Measuring temperature	0 to 50℃
Measuring pressure	Atmospheric pressure
Temperature compensation sensor	Pt1000
Weight	Approx. 0.4 kg
Digital communication function	Supports SENCOM4.0 (with Variopin connector and SA11 adapter)

2. Holder PH8HH for High Purity Water

Parameter	Specification
Material	Acrylic resin, 316SS, chloroprene rubber
Process connections	Inlet: Rc1/4 or 1/4NPT (F) Outlet: Rc1/2 or 1/2NPT (F)
Mounting method	50A (2-inch) vertical/horizontal pipe mounting or wall mounting (bracket specified separately)
Weight	Approx. 1.7 kg
