Name: DO30G Dissolved Oxygen Sensor with Galvanic-cell Method, Replaceable Diaphragm, and Fast Response Time for Water Quality Monitoring
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: DO30G
Price: 5,000.00 USD
Availability: InStock

Home > Products > Water Quality Sensor >

DO30G Dissolved Oxygen Sensor with Galvanic-cell Method, Replaceable Diaphragm, and Fast Response Time for Water Quality Monitoring

Galvanic-cell Dissolved Oxygen Sensor

Fast Response Time DO Sensor

Good Long Term Stability Oxygen Probe

Brand Name:

Yokogawa

Model Number:

DO30G

Request A Quote

Product Details

Object Of Measurement:

Concentration Of Oxygen Dissolved In Solution (water)

Principle Of Measurement:

Galvanic-cell Method

Resistance Temperature Detector (RTD):

Pt1000

Temperature Of Solution Under Measurement (SUM):

Max. 0 To 40 °C

Highlight:

Galvanic-cell Dissolved Oxygen Sensor

Fast Response Time DO Sensor

Good Long Term Stability Oxygen Probe

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

Supply Ability

1000 Piece/Pieces per Week negotiable

KWS-850 Multi-parameter Water Quality Sensor with RS-485(Modbus/RTU) Output, Automatic Cleaning, and ±0.1pH Accuracy for Wastewater Treatment

Get Best Price

Portable Conductivity Meter SC92 with IP67 Waterproof, Wide Measuring Range, and Large Backlit Display

Get Best Price

KSM-150B Wall Mounted Residual Chlorine Meter with Non-Membrane Sensor and 4-20mA Output

Get Best Price

Video

KWS-850 Online Multi-Parameter Water Quality Sensor with RS-485 Modbus/RTU, Automatic Cleaning, and ±0.1pH Accuracy

Get Best Price

Contact Now

Product Description

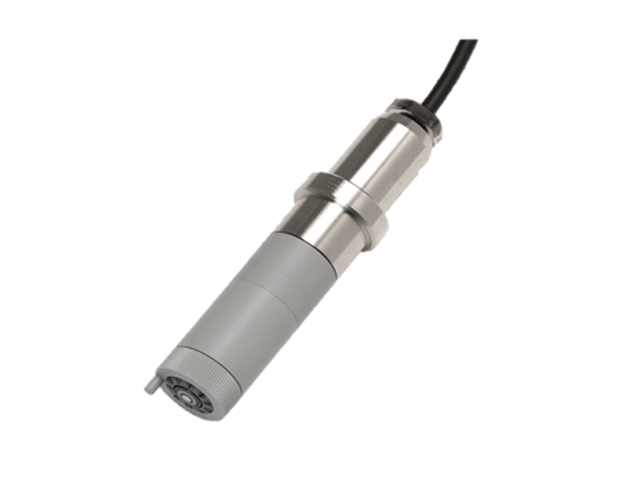

DO30G Dissolved Oxygen Sensor

The DO30G dissolved oxygen sensor is designed for water treatment applications including sewage treatment works, effluent activated sludge processes, and potable water treatment. It is also effective in river monitoring, intake protection, fish farming, and other water quality monitoring applications.

This galvanic cell sensor features fast response time and excellent long-term stability, with replaceable diaphragm and cable for easy maintenance. A built-in temperature sensor provides compensation. The DO30G sensor can be used with either floating ball or immersion fittings.

Key Features

Fast response time
Excellent long-term stability
Easy membrane replacement

PB350G/PB360G Floating Ball

The floating ball holder for the DO30 features a design that minimizes fouling in the process. A brass ring around the sensor facilitates membrane integrity checks and helps eliminate algae deposits, making cleaning systems unnecessary. Maintenance is straightforward with only periodic inspection and calibration required.

Floating Ball Features

Easy installation
Simple calibration
Sensor diagnosis for membrane integrity

FD30/PH8HG/DOX8HS Immersion Adapter

The immersion fitting is designed for installing the DO30G sensor in tanks, open vessels, and drains. Available in lengths from 0.5 to 2.0 meters, it also supports flange mounting. For applications with heavy solid loads, an optional "jet cleaner" is available to extend continuous measurement periods and simplify maintenance.

Immersion Adapter Features

Various immersion depths
Flange mounting capability
Optional cleaning system
Sensor diagnosis for membrane integrity

Technical Specifications

Parameter	DO30G
Object of Measurement	Concentration of oxygen dissolved in solution (water)
Principle of Measurement	Galvanic-cell method
Measurement Range	0 to 20 ppm, 0 to 20 mg/L, or 0 to 100% (saturation) The measurement range must be entered through the dissolved oxygen converter.
Resistance Temperature Detector (RTD)	Pt1000
Construction	Sensor unit: Rigid PVC, Stainless steel O-ring: Nitrile rubber Permeable membrane: Fluoro-resin [FEP] Cable shielding: Heat-resistant flexible PVC Outlet of cable: Polycarbonate resin
Sensor Cable	Length: 3 m, 5 m, 10 m, 15 m, or 20 m (specified when ordering) Crimping terminal configuration: Pin-type, M4/M3 Ring-type or Fork-type (specified when ordering)
Weight	Approx. 0.3 kg + 0.12 × N kg (N: cable length, e.g., for cable length of 5 m, approx. 0.9 kg)
Temperature of Solution Under Measurement (SUM)	max. 0 to 40 °C
Flow rate of SUM	No less than 20 cm/s Recommended to prevent sensor from trapping bubbles that cause measurement errors
Pressure of SUM	Normally: 0 to 30 kPa Maximum applicable: 100 kPa
Characteristics	Repeatability: 0.1 mg/L or 3% FS, whichever is greater (including sensor) Temperature Compensation Error: Within ±3% FS (including sensor for a ±5 °C change in the range of 0 to 40 °C) Response Time: Within 2 minutes (90% response) (including sensor)
