Name: Reagent Type Residual Chlorine Sensor with 0-10 mg/L Measuring Range and 100-240 V DC Power Supply for Water Treatment Plants
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: RC800D
Price: 5,000.00 USD
Availability: InStock

Home > Products > Water Quality Sensor >

Reagent Type Residual Chlorine Sensor with 0-10 mg/L Measuring Range and 100-240 V DC Power Supply for Water Treatment Plants

Reagent Type Residual Chlorine Sensor

0-10 mg/L Measuring Range Chlorine Analyzer

100-240 V DC Power Supply Water Quality Sensor

Brand Name:

Yokogawa

Model Number:

RC800D

Request A Quote

Reagent Type Residual Chlorine Sensor with 0-10 mg/L Measuring Range and 100-240 V DC Power Supply for Water Treatment Plants

Product Details

Measured Object:

Free Chlorine Or Residual Chlorine (total Chlorine) In Water

Measuring System:

Amperometric Method (Polarographic Method) Using Rotating Electrode

Measuring Range:

0-10 Mg/L

Power Supply:

100 To 240 V DC, 50/60 Hz

Highlight:

Reagent Type Residual Chlorine Sensor

0-10 mg/L Measuring Range Chlorine Analyzer

100-240 V DC Power Supply Water Quality Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Get Best Price

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Get Best Price

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Get Best Price

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Get Best Price

86--17719566736

Contact Now

Product Description

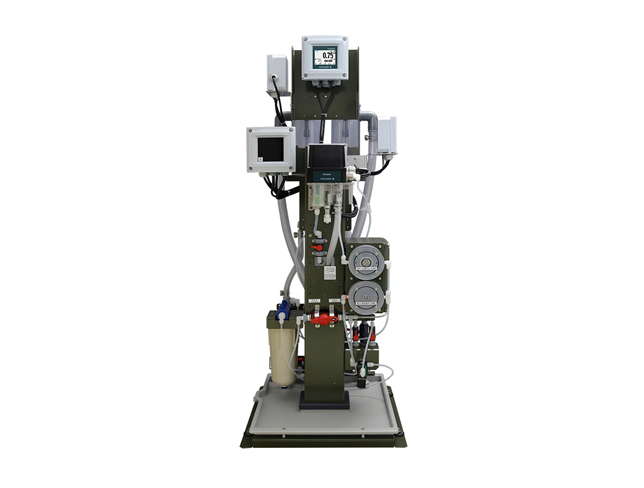

Reagent Type Residual Chlorine Sensor Unit RC800D

Reliable Chlorine Measurements in Water Treatment Plants Since 1959

No.1 Process analyzer supplier to Japanese market*

"Reliable Chlorine monitoring and minimize Chlorine injection"

"Continuous automatic cleaning and achieved less maintenance time"

"Maintenance remotely and reduce maintenance time"

Many of our customers face these challenges - Yokogawa Chlorine Analyzers resolve them.

The RC800D residual chlorine analyzer employs a polarographic system that uses rotating platinum electrodes to provide a continuous online measurement of residual chlorine concentration. It is possible to separate residual chlorine (free chlorine + combined-chlorine) from free chlorine for measurements by appropriate use of reagents.

The RC800D is suitable for various water condition measurements and gives you a stable and high-quality measurement thanks to the rotation electrodes and superior reagent pump.

The RC800D is intended for water distribution measurements at pumping stations, water delivery points, schools, and public facilities.

*Based on a Yokogawa survey in 2019

Key Features

Amperometric measurement of free chlorine or total chlorine (polarographic method)
Measure Free chlorine or residual chlorine (total chlorine) continuously in water
Unique rotation electrode method keeps sensor clean and reduces maintenance cycle
Superior reagent pump realizes stable measurement regardless of sample conditions
Easy maintenance structure, modularized motor unit, and diagnostics functions strongly support regular maintenance
Remote wash and calibration functions are available
RC800D is equipped with Manual calibration and Auto Calibration, 2 points correction, Basic (reference) sensitivity calibration, and circuit open Zero calibration
Remote range switching is available

RC800D Left Side View

RC800D Easy to Use Touch Screen Display

Structure

TC8000D Structure Diagram

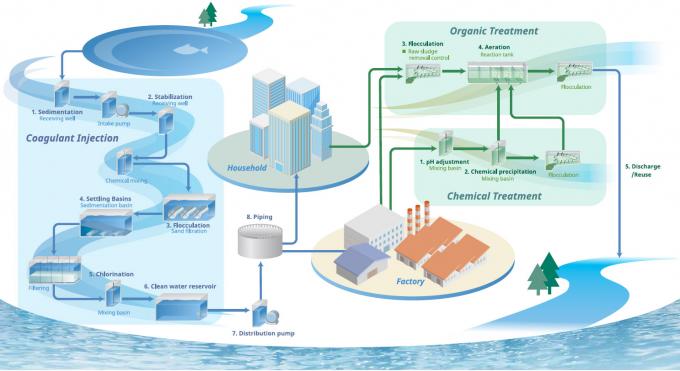

Applications

Each process at treatment plant: from reservoir to treated water, distribution system

Water Purification Treatment
Stabilization
Flocculation
Settling Basins
Chlorination
Clean water reservoir
Distributing pump
Distribution tank & Piping

Use Case Diagram

Specifications

Measured Object	Free chlorine or residual chlorine (total chlorine) in water
Measuring System	Amperometric method (Polarographic method) using rotating electrode
Measuring Range	0-10 mg/L
Sample Conditions	Temperature: 0 to 50°C (Temperature compensation is effective within 0 to 40°C)
	pH: 3 to 9
	Flow Rate: 1 to 4 L/min, for pure water or municipal water application.
	5 to 10 L/min, for raw water or sea water application.
	10 to 20 L/min, for secondary sewage treatment application.
Pressure	20 to 500 kPa
Power Supply	100 to 240 V DC, 50/60 Hz
Digital Communication	Modbus TCP/IP, Modbus RTU
Installation	Indoor (Outdoor use requires protection against rain. Direct sunlight must be avoided.)

Performance

Linearity	±3% of reading or ±0.03 mg/L whichever is greater
Repeatability	±1% of reading or ±0.01 mg/L whichever is greater
