Name: Quartz Flexible Accelerometer Sensor with Ø25.4×29 Size Bias <5mg and Bias Stability ≤10ug for Precision Applications
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSACC111Q
Price: 478.00 USD
Availability: InStock

Home > Products > Accelerometer Sensor >

Quartz Flexible Accelerometer Sensor with Ø25.4×29 Size Bias <5mg and Bias Stability ≤10ug for Precision Applications

Ø25.4×29 Size Accelerometer Sensor

Bias <5mg Quartz Flexible Accelerometer

Bias Stability ≤10ug Precision Accelerometer

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSACC111Q

Request A Quote

Quartz Flexible Accelerometer Sensor with Ø25.4×29 Size Bias <5mg and Bias Stability ≤10ug for Precision Applications

Product Details

Scale Factor:

1.2～1.6mA/g

Bias Repeatability:

≤10ug

Bias Temperature Sensitivity:

10ug/°C

Bias Stability:

≤10ug

Bias:

<5mg

Size:

Ø25.4×29

Range:

±50g

Highlight:

Ø25.4×29 Size Accelerometer Sensor

Bias <5mg Quartz Flexible Accelerometer

Bias Stability ≤10ug Precision Accelerometer

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability

Get Best Price

GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s

Get Best Price

GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications

Get Best Price

GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg

Get Best Price

Contact Now

Product Description

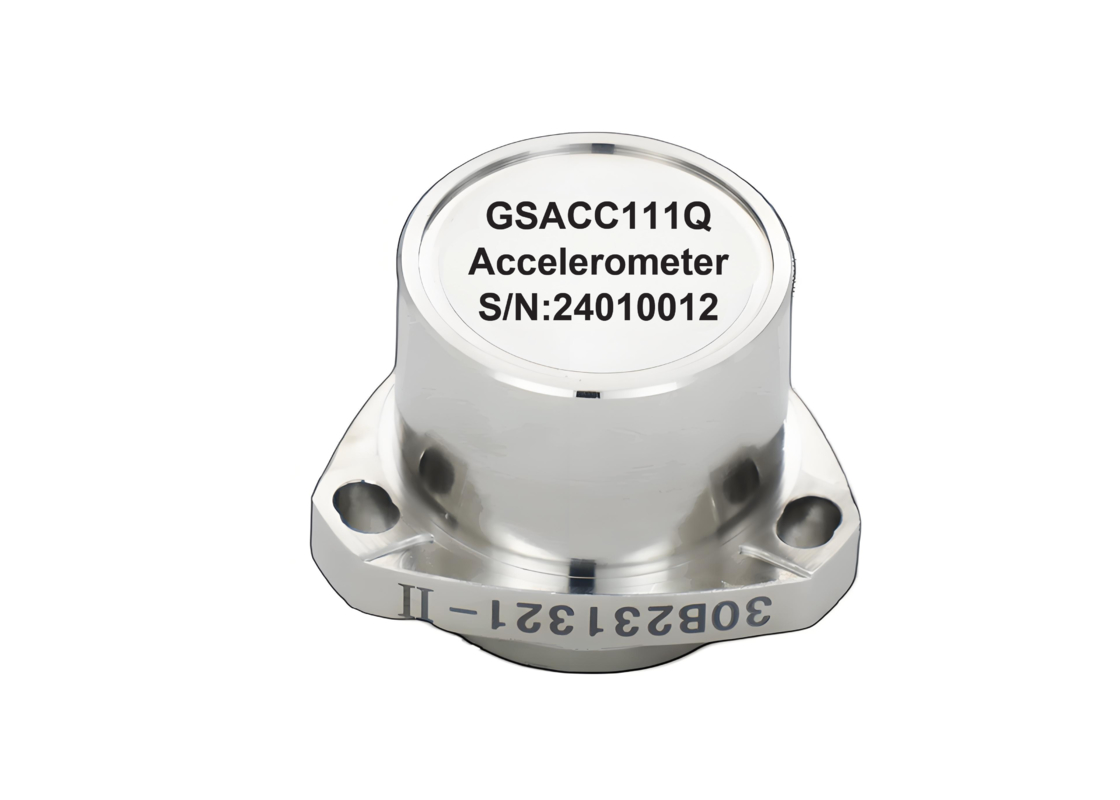

GSACC111Q Quartz Flexible Accelerometer

The quartz flexible accelerometer is a precision instrument featuring quartz glass flexible support and advanced servo circuitry based on inertia principles. When subjected to acceleration, it delivers output precisely proportional to input acceleration. With high output impedance current output, users can select sampling resistance without compromising system stability.

Our product line ranges from high-precision μg GSACC111Q models for satellite microgravity measurement to cost-effective, rugged GSACC117Q variants. These accelerometers serve aerospace, aviation, navigation, marine, automotive, petroleum, and geotechnical applications, providing critical signals for navigation, guidance, control, leveling, and monitoring systems.

Key Features

Exceptional index repeatability
Analog output capability
Integrated digital temperature sensor
Broad load resistance range
Precision triangle mounting flanges
Compatible with next-generation weapon inertial navigation systems
Multiple model options available

Applications

Inertial monitoring systems
Inertial navigation systems
Flight control systems
Vibration monitoring
Oil drilling platforms and geological exploration
Inertial measurement units
Motion monitoring equipment

Technical Specifications

Parameter	GSACC111Q
Power supply parameter
Power Voltage	12~18VDC
Power 25°C	90mW
Supply current	6mA
Product performance
Range	±50g
Size	Ø25.4×29
Bias	<5mg
Bias stability	≤10ug
Bias temperature sensitivity	10ug/°C
Bias repeatability	≤10ug
Scale factor	1.2～1.6mA/g
Scale factor temperature sensitivity	10ppm/°C
Second order nonlinear coefficient	≤10μg/g²
Second order nonlinearity coefficient repeatability	≤5μg/g²
Scale factor repeatability	10ppm
Noise	<1μg
Threshold	<1 μg
Bandwidth	<200 Hz
Weight	≤75g
Environment
Operating temperature	-45°C～80°C
Storage temperature	-55°C～80°C
Random vibration	15g(20~2000Hz)
Shock	100g

Dimensions
