Name: Quartz Flexible Accelerometer with ±20g Range 1.2～1.6mA/g Scale Factor and ≤30ug Bias Stability for Precision Inertial Navigation
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSACC114Q
Price: 478.00 USD
Availability: InStock

Home > Products > Accelerometer Sensor >

Quartz Flexible Accelerometer with ±20g Range 1.2～1.6mA/g Scale Factor and ≤30ug Bias Stability for Precision Inertial Navigation

≤30ug bias stability quartz flexible accelerometer

30ug/°C temperature sensitivity precision accelerometer

Compact size Ø25.4×32 inertial navigation accelerometer

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSACC114Q

Request A Quote

Product Details

Range:

±20g

Scale Factor:

1.2～1.6mA/g

Bias Repeatability:

≤30ug

Bias Temperature Sensitivity:

30ug/°C

Bias Stability:

≤30ug

Bias:

<5mg

Size:

Ø25.4×32

Highlight:

≤30ug bias stability quartz flexible accelerometer

30ug/°C temperature sensitivity precision accelerometer

Compact size Ø25.4×32 inertial navigation accelerometer

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KSINS010C Laser Strapdown Inertial Navigation System with 0.5nmile/h Position Accuracy <0.003° Pitch & Roll Accuracy and <5min Initialization Time

Get Best Price

GSRBA500D Quartz Flexible Accelerometer with ±70g Range, Small Size 22mm×22mm×14mm, and High Reliability for Aerospace and Applications

Get Best Price

GSGYR312F Three Axis Fiber Optic Gyroscope with Digital Output, Instant Start, and Low Bias Magnetic Sensitivity

Get Best Price

GSACC102M MEMS Accelerometer with ±10 g Range ≤ 1500 Hz Bandwidth and 100±30 mV/g Sensitivity for Vibration Monitoring

Get Best Price

Contact Now

Product Description

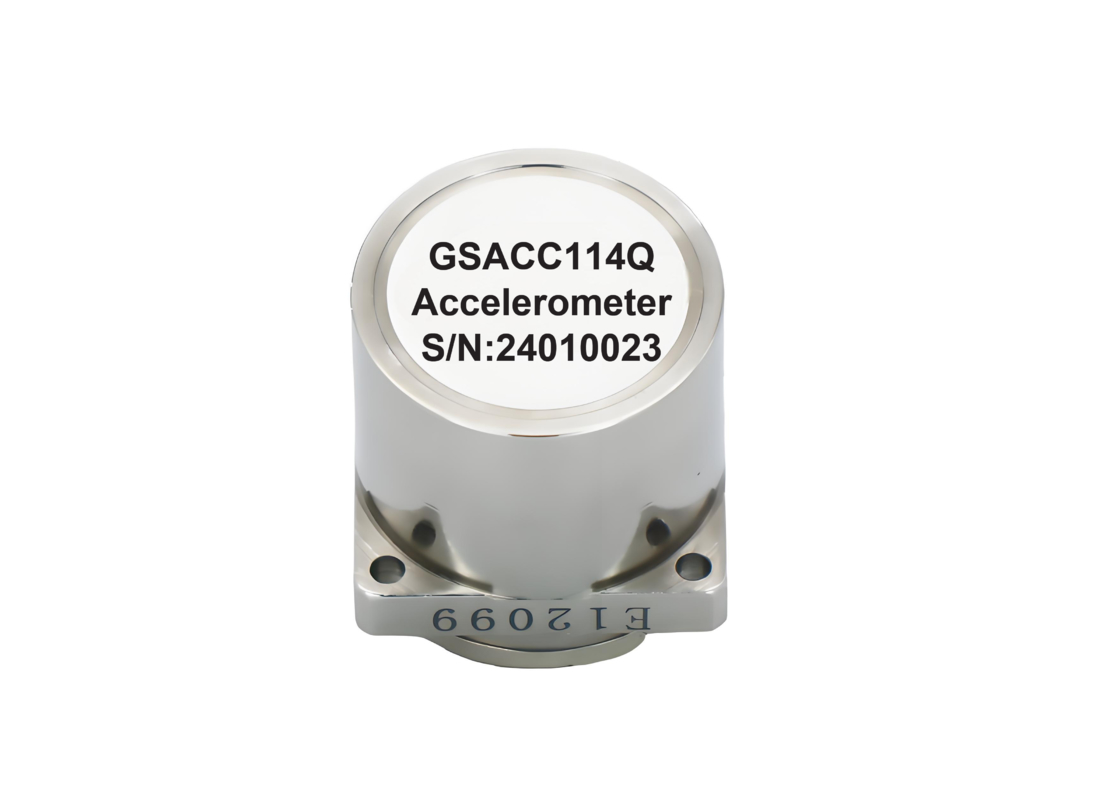

GSACC114Q Quartz Flexible Accelerometer

The quartz flexible accelerometer is a precision instrument comprising quartz glass flexible support and advanced servo circuit based on the principle of inertia. When the carrier is subjected to acceleration, the accelerometer output is precisely proportional to the input acceleration. Our accelerometer features a current output form with high output impedance, allowing users to select sampling resistance according to their requirements without affecting system stability.

Our quartz flexible accelerometer product line includes numerous models, ranging from the high-precision GSACC111Q accelerometer for satellite microgravity measurement to the cost-effective, harsh-environment-resistant GSACC117Q accelerometer. These instruments are widely used in aerospace, aviation, navigation, marine, vehicle, petroleum, and geotechnical engineering applications, providing signals for navigation, guidance, control, leveling, and monitoring systems.

Key Features

Excellent index repeatability
Analog output
Built-in digital temperature sensor
Wide load resistance range
Application in the inertial navigation system of the new generation weapon
Two models available

Applications

Inertial monitoring system
Inertial navigation system
Flight control system
Vibration monitoring
Oil drilling platforms and geological exploration
Inertial measurement unit
Motion monitoring equipment

Technical Specifications

Parameter	GSACC114Q
Power Supply Parameters
Power Voltage	12~18VDC
Power 25°C	90mW
Supply Current	6mA
Product Performance
Range	±20g
Size	Ø25.4×32
Bias	<5mg
Bias Stability	≤30μg
Bias Temperature Sensitivity	30μg/°C
Bias Repeatability	≤30μg
Scale Factor	1.2～1.6mA/g
Scale Factor Temperature Sensitivity	30ppm/°C
Second Order Nonlinear Coefficient	≤15μg/g²
Second Order Nonlinearity Coefficient Repeatability	≤15μg/g²
Scale Factor Repeatability	30ppm
Noise	<5μg
Threshold	<5μg
Bandwidth	<200 Hz
Weight	≤70g
Environmental Specifications
Operating Temperature	-45°C～80°C
Storage Temperature	-55°C～80°C
Random Vibration	15g(20~2000Hz)
Shock	100g

Dimensions

Unit: mm
