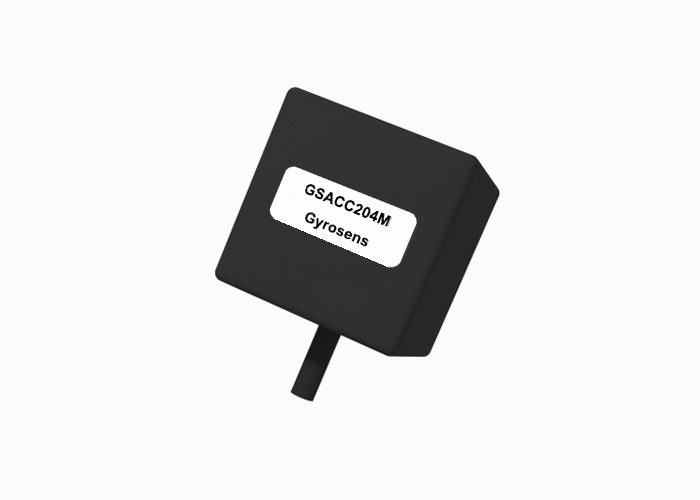

Name: GSACC204M MEMS Accelerometer with ±1 g Range ≤ 0.005 s Start-Up Time and 2.5±0.1 V Bias for Precision Sensing
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSACC204M
Price: 478.00 USD
Availability: InStock

Home > Products > Accelerometer Sensor >

GSACC204M MEMS Accelerometer with ±1 g Range ≤ 0.005 s Start-Up Time and 2.5±0.1 V Bias for Precision Sensing

±1 g range MEMS Accelerometer

≤ 0.005 s start-up time Accelerometer Sensor

2.5±0.1 V bias GSACC204M Accelerometer

Place of Origin:

china

Brand Name:

Gyrosens

Certification:

Model Number:

GSACC204M

Request A Quote

Product Details

Range:

±1 G

Start-up Time:

≤ 0.005 S

Bias:

2.5±0.1 V

Nonlinear (%F.S.):

≤ 0.5% F.S.

Resolution (°/s):

≤ 0.001 G

Sensitivity:

1000±30 MV / G

Bandwidth:

≤ 3300 Hz

Highlight:

±1 g range MEMS Accelerometer

≤ 0.005 s start-up time Accelerometer Sensor

2.5±0.1 V bias GSACC204M Accelerometer

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability

Get Best Price

GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s

Get Best Price

GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications

Get Best Price

GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg

Get Best Price

Contact Now

Product Description

GSACC204M MEMS Accelerometers

Key Features

Analog voltage output
Compact size and lightweight design
High frequency with magnetic suction installation
Excellent impact resistance and vibration performance

Applications

Mechanical vibration monitoring equipment
Seismic surveillance systems

Technical Specifications

Type: GSACC204M
Electrical Characteristics
Input voltage	6±0.25 VDC
Input current	≤6mA
Output Mode	0.5～4.5 V
Performance Index
Axial direction	Y \| Z
Range	±1 g
Bandwidth	≤ 3300 Hz
Sensitivity	1000±30 mV / g
Resolution (°/s)	≤ 0.001 g
Nonlinear (%F.S.)	≤ 0.5% F.S.
Bias	2.5±0.1 V
Start-up time	≤ 0.005 s
Environmental Characteristics
Temperature (°C)	-40℃~+70℃
Storage Temperature	-40℃~+125℃
Resistant to shock	3500 g
Physical Characteristics
Weight (g)	45g
Dimensions	22.8×22.8×20.6 mm

Dimensions

Note: Manual content will be updated from time to time. Please contact the supplier for the latest product manual.
