Name: Honeywell Model 435 Precision Pressure Sensor with 4-20mA Output, -40°C to 125°C Operating Range, and Inconel X-750 Wetted Parts（Part Number：BP435）
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Model 435
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

Honeywell Model 435 Precision Pressure Sensor with 4-20mA Output, -40°C to 125°C Operating Range, and Inconel X-750 Wetted Parts（Part Number：BP435）

4-20mA Output Precision Pressure Sensor

-40°C to 125°C Pressure Transducer

Inconel X-750 Wing Union Pressure Sensor

Brand Name:

Honeywell

Certification:

Model Number:

Model 435

Request A Quote

Product Details

Full-scale Accuracy:

±0.2 %

Output:

4 MA To 20 MA, Two-wire

Temperature, Operating:

-40°C To 125°C [-40°F To 257°F]

Wetted Parts Material:

Inconel® X-750, Inconel® 718

Protective Cage (optional):

316L Stainless Steel

Highlight:

4-20mA Output Precision Pressure Sensor

-40°C to 125°C Pressure Transducer

Inconel X-750 Wing Union Pressure Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell 434/435/437 Series Wing Union Hammer Union Pressure Transducer（Part Number：060-F827-02/060-P187-04）

Get Best Price

Honeywell Model 437 Precision Pressure Sensor with 9 Vdc to 28 Vdc Supply Voltage Stainless Steel Assembly and Inconel X-750 Wetted Diaphragm（Part Number：BP437）

Get Best Price

Honeywell Model S（Part Number ：060-1542-01G/060-1542-02G/060-1542-13G/060-1542-15G)

Get Best Price

Honeywell Model TJE Mid（Part Number ：060-0741-08TJD）

Get Best Price

86--17719566736

Contact Now

Product Description

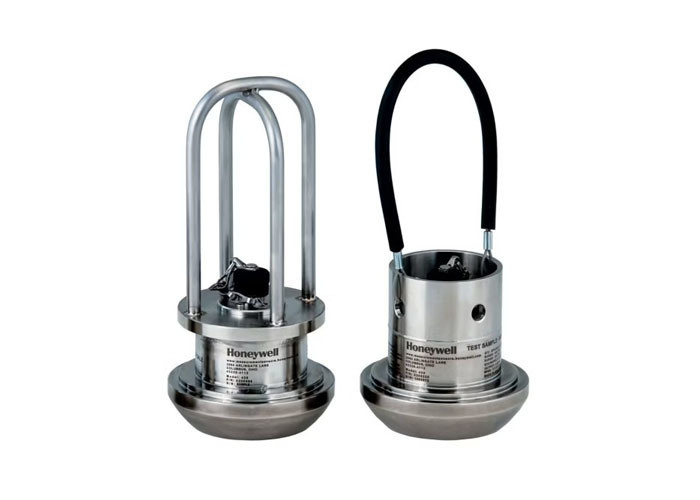

Honeywell Model 435 Wing Union Pressure Transducer(Part Number:BP435)

Product Overview

Wing union pressure transducers with standard aperture. Measurement range: 0 psi to 20,000 psi. Available with ±0.1% or ±0.2% full-scale accuracy. Optional protective cage available.

Key Features

Rugged design for use with Weco® 1502 fittings in offshore and land-based oil/gas applications

Two accuracy levels available (±0.1% FSS BFSL or ±0.2% FSS BFSL)

Ideal for demanding applications including well stimulation and circulation systems

All-welded stainless steel assembly with integrated sensor diaphragm and wing union fitting

Weco 1502 (2 in) Wing Union-compatible fittings machined from Inconel® X-750

Value to Customers

Durable Construction

Weco® Wing Union-compatible fittings machined of Inconel® X-750 (or optional NACE-compliant Inconel® 718) for use with abrasive and corrosive media. Protective cage option provides electrical connection protection.

Reliable Performance

All-welded stainless steel assembly with shock/vibration ratings and isolated pressure sensing diaphragm increases reliability and minimizes zero-shift during operation.

High Accuracy

±0.1% full scale accuracy option provides confidence in measured pressure values, enabling precise drilling operation adjustments.

Global Support

Worldwide manufacturing and support capabilities enable quick delivery of customized products to meet project timelines.

Key Differentiators

Superior accuracy options (±0.1% or ±0.2%) compared to competitive models

Shunt calibration option enhances configurability and flexibility

IEC Ex approval for use in hazardous areas (Asia-Pacific, EMEA, and U.S. Coast Guard)

Protective cage option available

Welded construction for maximum reliability

Order Information

Order Code	Description
060-P187-01	BP435DR, 6, 1AC, 2AK, 6Z, 7AD, 10J:MODEL 435,SIGN IN
060-F827-02	BP425DS, 6, 1AC, 2N, 6Z, 7AD, 10E:MODEL 425,SIGN IN
060-P187-03	BP435EJ, 6, 1AC, 2AK, 6Z, 7AD, 10J:MODEL 435,SIGN IN
060-P187-04	BP435DS, 6, 1AC, 2AK, 6Z, 7AD, 10J:MODEL 435,SIGN IN
060-P186-03	BP435EJ,6,1AC,2AK,3J,6A,7AH,10J:MODEL 435,SIGN IN
060-P186-04	BP435DS,6,1AC,2AK,3J,6A,7AH,10J:MODEL 435,SIGN IN
060-P187-01-01	BP435DR,6,1AC,2AK,6Z,7AD,9A,10J:MODEL 435,SIGN IN
060-P187-02	BP435DV,6,1AC,2AK,6Z,7AD,10J:MODEL 435,SIGN IN
