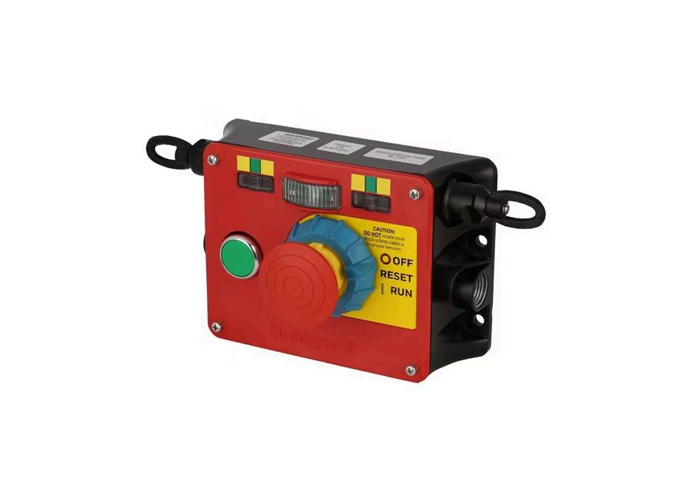

Name: Honeywell 2CCP Series Dual Head Cable-Pull Safety Switch with SIL3 Capability and IP54 Sealing for Emergency Stop Applications
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 2CCP Series
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

Honeywell 2CCP Series Dual Head Cable-Pull Safety Switch with SIL3 Capability and IP54 Sealing for Emergency Stop Applications

IP54 Cable-Pull Safety Switch

NEMA 1 Emergency Stop Switch

Dual Head MICRO SWITCH

Brand Name:

Honeywell

Model Number:

2CCP Series

Request A Quote

Product Details

Shock:

15 G

Rated Thermal Current (Ith):

10 A

Rated Impulse Withstand (Uimp):

2500 V

Rated Insulation Voltage (Ui):

300 V

Usable Gold-plated Current (if Applicable):

1 MA To 50 MA, 60 Vdc Max./125 Vac Max.

Highlight:

IP54 Cable-Pull Safety Switch

NEMA 1 Emergency Stop Switch

Dual Head MICRO SWITCH

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell GSS Series EN50041 and EN50047 Standards Safety Switch with Positive Opening Normally Closed Contacts and UL CSA CE SIL3 Certification

Get Best Price

Honeywell Model LC Digital Force Indicator with 50,000 lb Range Stainless Steel Diaphragm and Peak Capture Feature

Get Best Price

Dwyer Series 2000 Industrial Pressure Gauge with ±2% Accuracy, IP67 Enclosure Rating, and 4" Dial Face

Get Best Price

Dwyer AtmosphereGuard RHP Humidity/Temperature Transmitter with Dual-Parameter Sensing, Wide Power Input Range, and User-Friendly LCD Display

Get Best Price

Contact Now

Product Description

Honeywell 2CCP Series Dual Head Cable Pull

The 2CCP, Honeywell's newest MICRO SWITCH Cable-Pull Safety Switch, provides an economical switching solution for an easily accessible emergency stop function along conveyors and machines. The 2CCP provides reliable performance, a highly configurable platform, easy installation, simplified maintenance, and faster equipment restart to meet the needs of a wide range of end-users.

Applications

Long Conveyor Systems

Warehouses and distribution centers
Post and parcel facilities
Food & beverage or pharmaceutical production

Large Machinery

Packaging equipment
Assembly lines like automotive
Woodworking and textiles

Features & Benefits

2CCP Features	2CCP Benefits
Dual direction	Covers cable spans up to 656 ft*. Fewer number of switches required per installation creates savings on unit and wiring costs
Configurable platform	Many options available within one package size. 576 possible SKU combinations. Options for conduit ports, contacts, actuation direction, LED, E-stop, and restart button
Direct-opening, snap-action contacts	Contacts are held closed when the actuating cable is under proper tension and the reset knob is set to the run position. Upon activation, a cam positively open the NC contacts. The snap-action operation causes the mechanical latch almost immediately
Latches on both slackened and pulled cable	Provides tension loss monitoring due to wire breakage or thermal expansion
Wide tolerance zone for cable tensioning	Protects against nuisance tripping and the effects of thermal expansion. ±30°F for cable runs up to 500 ft. Longer runs achievable at smaller temperature windows
Integral reset mechanism	NC switch contacts remain open until the unit is reset by properly tensioning the cable and manually rotating the blue reset knob to "Run" condition following switch actuation
Restart button	Equipment is not allowed to restart automatically after the cable-pull switch is reset. The integrated restart button can be used to send a signal back to the PLC for equipment start. This is in lieu of installing a local control station or using an existing HMI
Improved LED	More light intensity and better side viewing ensures switch status can be seen easily from a distance. Available in 24 Vdc, 120 Vac, or 240 Vac
E-stop button	Provides E-stop access even at the extreme ends of the span
Replaceable front cover	Units with an E-stop are prone to damage. Impact-resistant plastic cover has been designed for fast and economic replacement. LED and restart button are mounted to base of unit and do not require replacement or rewiring
Improved tension window	Magnified window and clear markings makes system setup and rope tension maintenance faster and more precise
External mounting holes	Front cover does not need to be removed to access mounting holes creating easier installation and maintenance access
Large wiring cavity with straight through wiring	Easier access to contact block allows for faster and simpler wiring
Optional rear conduit port	Option to route wiring through the back of the unit for easier installation and to eliminate looping cable

Specifications

Designation and Utilization Category
Rated Operational Current IE (A) at Rated Operational Voltage (V)	24 V	120 V	240 V
AC15 (Contact Rating) A300	-	6 A	3 A
DC13 (Contact Rating) Q300	2.8 A	0.55 A	0.27 A

Specification	Value
Rated thermal current (Ith)	10 A
Rated impulse withstand (Uimp)	2500 V
Rated insulation voltage (Ui)	300 V
Usable gold-plated current (if applicable)	1 mA to 50 mA, 60 Vdc max./125 Vac max.
Shock	15 g
Conditional short-circuit current	1000 A
Sealing	IP54; NEMA 1
Pollution code	3
Operating temperature range	-40 °C to 85 °C [-40 °F to 185 °F]
Short-circuit protective device (type/maximum rating)	Class J fuse (10 A/600 V)
Vibration	10 Hz to 500 Hz, 5 g
Mechanical life	375,000 operations

Compliance & Certifications

Complies with:

Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU
Machinery Directive 2006/42/EC only as the directives relate to the components being used in a safety function
IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 60947-5-5
EN ISO 13850 compliance
UL Category NISD, Emergency Stop Devices

MCTF (Mechanical Life): >375,000 cycles with single-sided confidence limit of 100%

MCTF (Electrical Life): >50,000 cycles with single-sided confidence limit of 87.5%

Highest SIL Capability: SIL3 (HFT:1), IEC 61508-2

Proof Test Interval: 1 Year

Certifications: UL, cUL, CE, SIL3 capable
