YAK6 Series Temperature Controller with Non-volatile Memory, ±0.5%FS Accuracy, and 48×48 Panel Size

YAK6 Series Temperature Controller

±0.5%FS accuracy Thermostat

180V–240V AC Temperature Regulator

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

AK6

Request A Quote

YAK6 Series Temperature Controller with Non-volatile Memory, ±0.5%FS Accuracy, and 48×48 Panel Size

Product Details

Power Consumption:

≤5VA

Rated Voltage:

180V–240V AC, 50Hz

Data Retention:

Non-volatile Memory

Storage Temperature:

-25°C–65°C (no Condensation Or Frost)

Resolution:

1°C, 0.1°C (optional)

Wiring Method:

Terminal Connection

Measurement Accuracy:

±0.5%FS

Highlight:

YAK6 Series Temperature Controller

±0.5%FS accuracy Thermostat

180V–240V AC Temperature Regulator

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

SBWZ-PT100 Integrated Temperature Transmitter Module with 4-20mA Output, 0.2% Measurement Accuracy, and -40℃ to 120℃ Operating Temperature

Get Best Price

AK6-APL110-C007R Series Temperature Controller with 48×48 Panel Size RS485 Communication and Non-Volatile Memory

Get Best Price

PT100 Temperature Transmitter -55～1200℃ IP65 Stainless Steel

Get Best Price

Contact Now

Product Description

YAK6 Series Temperature Controller

Electrical Specifications

Item	Specification
Rated Voltage	180V-240V AC, 50Hz
Power Consumption	≤5VA
Operating Environment	Ambient temperature: 0-50°C Relative humidity: 35%-85% RH (non-condensing)
Storage Temperature	-25°C-65°C (no condensation or frost)
Resolution	1°C, 0.1°C (optional)

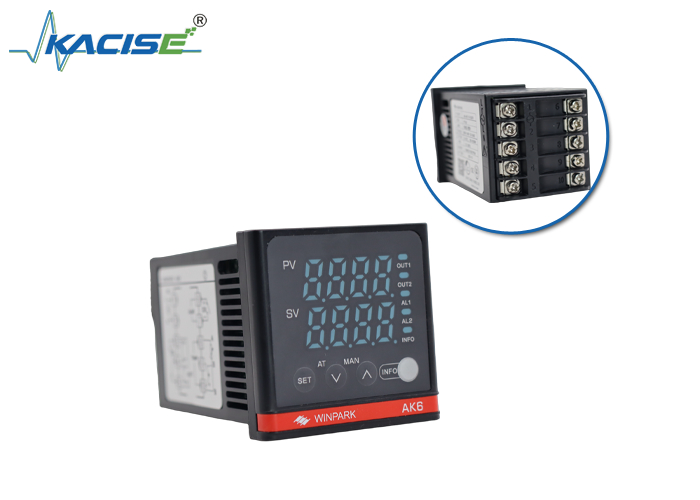

Wiring Method	Terminal connection
Measurement Accuracy	±0.5%FS
Data Retention	Non-volatile memory
Installation Environment	Indoor installation, free from corrosive gases
Relay Output	Relay control output: AC220V/DC30V, 3A
Analog Output	(Optional) DC12V: 0-5V/1-5V; DC0-5V/1-5V; Output current: ≤30mA; Load resistance ≥1kΩ

Product Model Selection

Please refer to the following code description to confirm whether the delivered product model matches the selected one.

① Front Size: A: 48×48 B: 48×96 C: 96×48 D: 72×72 E: 96×96
② Input Signal: K, E, J, N, Wre3-25, Wre5-26, Pt100, Cu50
③ Power Supply: A: AC power supply D: DC power supply S: Battery test
④ Output Function: 1: Relay output 2: Analog output 3: Logic level output
⑤ Control Mode: 0: Single setpoint control (heating) 1: Dual setpoint control (heating/cooling) 2: Time proportional control 3: On/off control 4: PID control
⑥ Additional Functions: 0: None 1: Communication function (RS485) 2: Timer function 3: Programmable segment control function
⑦ Custom Code: Custom product, defined based on specific order requirements

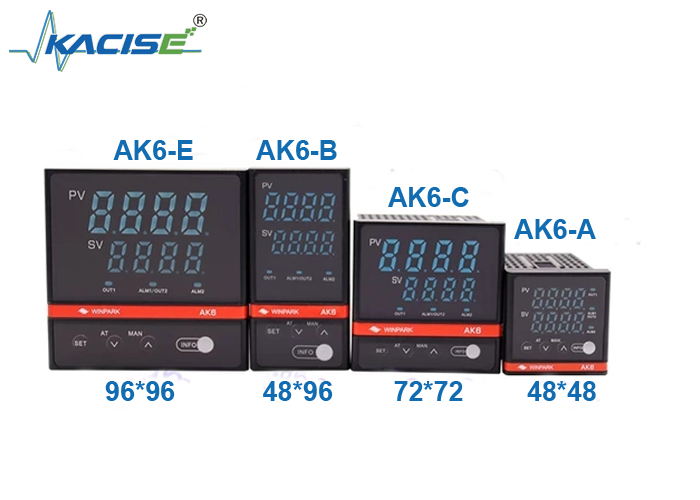

Appearance and Mounting Dimensions

Unit: mm

Model	Panel Size (mm)	Overall Dimensions (L × W × H, mm)	Mounting Hole Size (mm)
AK6-A	48 × 48	76 × 45 × 45	46 × 46
AK6-B	48 × 96	72 × 44 × 90	45 × 91
AK6-D	72 × 72	72 × 66 × 66	67 × 67

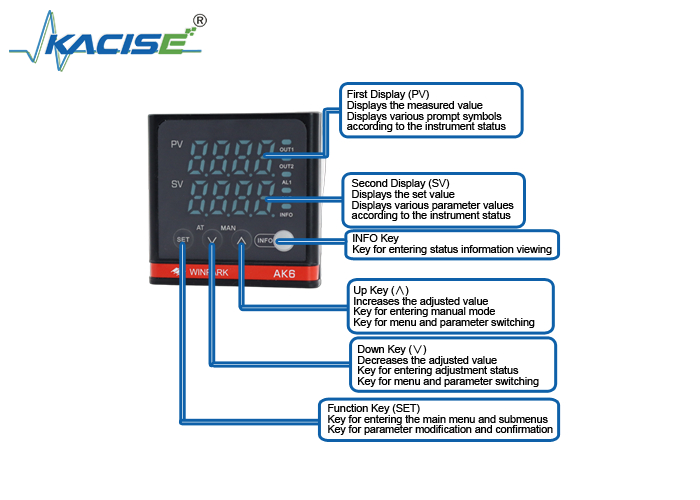

Operation Panel Function Description
