Name: TDLAS302 Laser Methane Sensor with 0.1 ppm Resolution and 0–1000 ppm Measurement Range for High Accuracy Gas Analysis
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: TDLAS302
Price: 5,000.00 USD
Availability: InStock

Home > Products > Water Quality Sensor >

TDLAS302 Laser Methane Sensor with 0.1 ppm Resolution and 0–1000 ppm Measurement Range for High Accuracy Gas Analysis

0.1 ppm Resolution Laser Methane Sensor

0–1000 ppm Measurement Range TDLAS302 Sensor

High Accuracy Gas Analysis Sensor

Place of Origin:

china

Brand Name:

kacise

Certification:

Model Number:

TDLAS302

Request A Quote

Product Details

Resolution:

0.1 Ppm

Test Gas:

Methane (CH₄)

Detection Principle:

Tunable Diode Laser Absorption Spectroscopy (TDLAS302)

Measurement Range:

0–1000 Ppm

Measurement Accuracy:

5 Ppm + 2% Reading

Highlight:

0.1 ppm Resolution Laser Methane Sensor

0–1000 ppm Measurement Range TDLAS302 Sensor

High Accuracy Gas Analysis Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Wall Mounted Online Optical DO Meter with 0.00-20.00mg/L Measuring Range ±2%F.S. Accuracy and 0.01mg/L Resolution

Get Best Price

Wall Mounted Residual Chlorine Meter with IP65 and IP68 Protection and 4-20mA Output for Free Chlorine Measurement

Get Best Price

WE430 Hydrazine Analyzer with Ion-selective Electrode for Stable Drift-free Measurements and Minimal Maintenance

Get Best Price

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Get Best Price

86--17719566736

Contact Now

Product Description

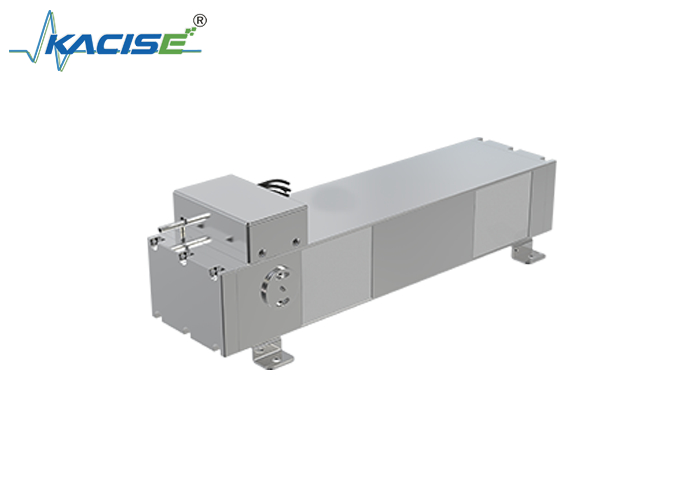

TDLAS302 Laser Methane Sensor

Overview

The TDLAS302 Series Laser Methane Sensor is a high-performance gas analysis sensor independently developed by KACISE. Based on Tunable Diode Laser Absorption Spectroscopy (TDLAS302) technology, it features a high-performance probe and specially processed gas chamber, offering:

High accuracy measurements
Exceptional sensitivity
Extended service life
Stable performance

The sensor incorporates a temperature compensation algorithm to eliminate environmental interference, ensuring stable operation in harsh conditions and complex gas environments. Its modular design simplifies installation, while the TTL communication interface enables easy calibration and adjustment. The low-power design facilitates maintenance and customer integration.

Product Advantages

Fast response time
High measurement accuracy
Low power consumption
Modular design for easy integration
Long service life
Excellent gas selectivity
Strong anti-interference capability

Specifications

Parameter	Specification
Test Gas	Methane (CH₄)
Detection Principle	Tunable Diode Laser Absorption Spectroscopy (TDLAS302)
Measurement Range	0-1000 ppm
Measurement Accuracy	5 ppm + 2% reading
Resolution	0.1 ppm
Warm-up Time	< 10 s
Operating Temperature	-20℃ to 60℃
Operating Humidity	0-98% RH (non-condensing)
Operating Pressure	80 kPa - 120 kPa
Operating Voltage	3.2 V - 5.5 V
Operating Current	< 100 mA (@25℃, 3.3 V)
Output	TTL (3.3 V)
Storage Conditions	-40℃ to 85℃, 0-98% RH (non-condensing)
Product Dimensions (LWH)	278 * 97 * 84 mm
