Name: Proline Promag P 200 Electromagnetic Flowmeter with Loop-Powered Technology for Corrosion Resistant and High Temperature Applications
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promag P 200
Price: 2,540.00 USD
Availability: InStock

Home > Products > Electromagnetic Flow Meter >

Proline Promag P 200 Electromagnetic Flowmeter with Loop-Powered Technology for Corrosion Resistant and High Temperature Applications

Proline Promag P 200 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flow meter

Place of Origin:

Switzerland

Brand Name:

Endress+Hauser

Certification:

Model Number:

Proline Promag P 200

Request A Quote

Product Details

Transmitter Housing Material:

AlSi10Mg, Coated

Sensor Housing Material:

AlSi10Mg, Coated

Measured Variables:

Volume Flow, Mass Flow

Max. Measurement Error:

Volume Flow: ±0.5 % O.r. ± 2 Mm/s (0.08 In/s)

Measuring Range:

4 Dm3/min To 1100 M3/h (1 To 4850 Gal/min)

Highlight:

Proline Promag P 200 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flow meter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Proline t-mass F 500 Thermal Mass Flowmeter with DN 15 to DN 100, HART and Modbus RS485, and Patented Drift-Free Sensor

Get Best Price

Proline Promag W 300 High Accuracy ±0.5% Electromagnetic Flowmeter with IP68 Protection for Hazardous Areas

Get Best Price

Proline Promag P 300 Electromagnetic Flowmeter for Corrosion Resistant and High Temperature Process Applications with Compact Transmitter

Get Best Price

Proline Promass A 200 Coriolis Flowmeter with 0 to 450 kg/h Measuring Range for Industrial Use

Get Best Price

Contact Now

Product Description

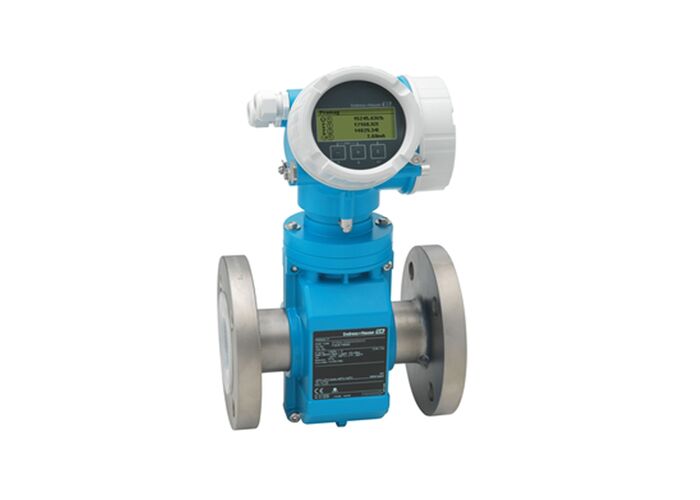

Proline Promag P 200 Electromagnetic Flowmeter

The flowmeter for highest medium temperatures with genuine loop-powered technology. Dedicated to chemical and process applications with corrosive liquids and high medium temperatures.

Field of Application

Promag P is dedicated to chemical and process applications with corrosive liquids and high medium temperatures. With genuine loop-powered technology, Promag P 200 enables cost-effective and seamless integration into existing infrastructures. It offers highest operational safety in hazardous areas thanks to its intrinsically safe design (Ex ia). Heartbeat Technology enables process safety at all times.

Key Benefits

Versatile applications - wide variety of wetted materials
Energy-saving flow measurement - no pressure loss due to cross-section constriction
Maintenance-free - no moving parts
Convenient device wiring - separate connection compartment
Safe operation - no need to open the device due to display with touch control, background lighting
Integrated verification - Heartbeat Technology

Technical Specifications

Measuring Principle	Electromagnetic
Nominal Diameter Range	DN 15 to 200 (½ to 8")
Measured Variables	Volume flow, mass flow
Max. Measurement Error	Volume flow: ±0.5 % o.r. ± 2 mm/s (0.08 in/s)
Measuring Range	4 dm³/min to 1100 m³/h (1 to 4850 gal/min)
Max. Process Pressure	PN 40, Class 300, 20K
Medium Temperature Range	Liner material PFA: -20 to +150 °C (-4 to +302 °F) Liner material PTFE: -40 to +130 °C (-40 to +266 °F)
Ambient Temperature Range	Flange material carbon steel: -10 to +60 °C (+14 to +140 °F) Flange material stainless steel: -40 to +60 °C (-40 to +140 °F)

Wetted Materials

Liner	PFA; PTFE
Electrodes	1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum

Construction Details

Sensor Housing Material	AlSi10Mg, coated
Transmitter Housing Material	AlSi10Mg, coated
Degree of Protection	IP66/67, type 4X enclosure

Display & Operation

4-line backlit display with touch control (operation from outside). Configuration via local display and operating tools possible. Remote display available.

Electrical Specifications

Outputs	4-20 mA HART (passive) Pulse/frequency/switch output (passive)
Inputs	None
Digital Communication	HART, PROFIBUS PA, FOUNDATION Fieldbus
Power Supply	DC 18 to 35 V (4-20 mA HART with/without pulse/frequency/switch output)

Approvals & Certifications

Hazardous Area	ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, JPN, UK Ex
Product Safety	CE, C-Tick
Functional Safety	IEC 61508, applicable in safety-relevant applications per IEC 61511
Metrological	Calibration per ISO/IEC 17025 Heartbeat Technology complies with ISO 9001:2015 requirements
Pressure	CRN, PED
Material	3.1 material certificates
Hygienic	Drinking water approvals: ACS, NSF 61
