Home > Products > Electromagnetic Flow Meter >

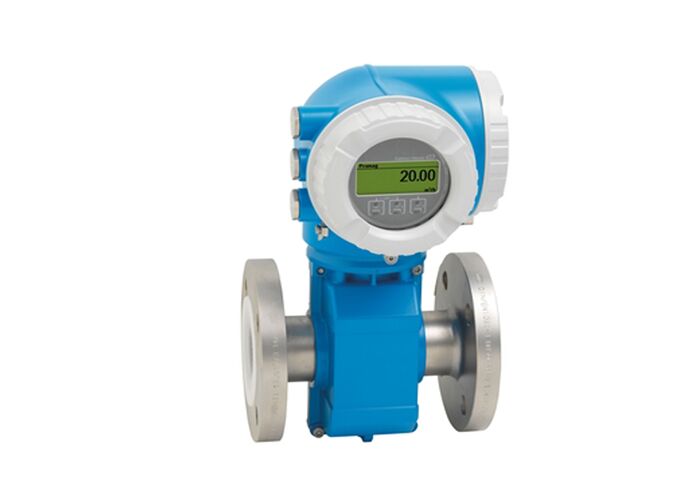

Proline Promag P 300 Electromagnetic Flowmeter for Corrosion Resistant and High Temperature Process Applications with Compact Transmitter

Proline Promag P 300 Electromagnetic Flowmeter for Corrosion Resistant and High Temperature Process Applications with Compact Transmitter

Proline Promag P 300 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flow meter

Place of Origin:

Switzerland

Brand Name:

Endress+Hauser

Certification:

CE

Model Number:

Proline Promag P 300

Contact Us
Request A Quote
Proline Promag P 300 Electromagnetic Flowmeter for Corrosion Resistant and High Temperature Process Applications with Compact Transmitter
Product Details
Hazardous Area ApprovalsATEX, I:
LR Approval, DNV Approval, ABS Approval, BV Approval
Pressure Approvals And Certificates:
PED, CRN
Marine Approvals And Certificates:
LR Approval, DNV Approval, ABS Approval, BV Approval
Material Certificates:
3.1 Material
Hygienic Approvals And Certificates:
ACS, NSF 61, WRAS
Hazardous Area Approvals:
ATEX, IECEx, CCSAus, INMETRO, NEPSI, EAC; JPN, UK Ex, KC
Highlight:

Proline Promag P 300 flowmeter

,

electromagnetic flow meter with warranty

,

industrial electromagnetic flow meter

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Proline t-mass F 500 Thermal Mass Flowmeter with DN 15 to DN 100, HART and Modbus RS485, and Patented Drift-Free Sensor online

Proline t-mass F 500 Thermal Mass Flowmeter with DN 15 to DN 100, HART and Modbus RS485, and Patented Drift-Free Sensor

Get Best Price
Good price Proline Promag W 300 High Accuracy ±0.5% Electromagnetic Flowmeter with IP68 Protection for Hazardous Areas online

Proline Promag W 300 High Accuracy ±0.5% Electromagnetic Flowmeter with IP68 Protection for Hazardous Areas

Get Best Price
Good price Proline Promag P 300 Electromagnetic Flowmeter for Corrosion Resistant and High Temperature Process Applications with Compact Transmitter online

Proline Promag P 300 Electromagnetic Flowmeter for Corrosion Resistant and High Temperature Process Applications with Compact Transmitter

Get Best Price
Good price Proline Promass A 200 Coriolis Flowmeter with 0 to 450 kg/h Measuring Range for Industrial Use online

Proline Promass A 200 Coriolis Flowmeter with 0 to 450 kg/h Measuring Range for Industrial Use

Get Best Price
Contact Us
Contact Now
Product Description
Proline Promag P 300 Electromagnetic Flowmeter
Product Overview

High-temperature flowmeter for process applications with a compact, easily accessible transmitter. Dedicated to chemical and process applications with corrosive liquids and high medium temperatures.

Key Specifications
Specification Details
Maximum Measurement Error Volume flow (standard): ±0.5% o.r. ± 1 mm/s (0.04 in/s)
Volume flow (option): ±0.2% o.r. ± 2 mm/s (0.08 in/s), Flat Spec
Measuring Range 4 dm³/min to 9600 m³/h (1 gal/min to 44,000 gal/min)
Medium Temperature Range Liner material PFA: -20 to +150°C (-4 to +302°F)
Liner material PFA high-temperature: -20 to +180°C (-4 to +356°F)
Liner material PTFE: -40 to +130°C (-40 to +266°F)
Maximum Process Pressure PN 40, Class 300, 20K
Nominal Diameter Range DN 15 to 600 (½ to 24")
Sensor Features
  • Diverse applications - wide variety of wetted materials
  • Energy-saving flow measurement - no pressure loss due to cross section constriction
  • Maintenance-free - no moving parts
  • Nominal diameter: max. DN 600 (24")
  • All common Ex approvals
Transmitter Features
  • Full access to process and diagnostic information
  • Numerous, freely combinable I/Os and fieldbuses
  • Reduced complexity and variety - freely configurable I/O functionality
  • Integrated verification - Heartbeat Technology
  • Compact dual-compartment housing with up to 3 I/Os
  • Backlit display with touch control and WLAN access
  • Remote display available
Technical Details
Parameter Specification
Wetted Materials Liner: PFA; PTFE
Electrodes: 1.4435 (F316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium
Measured Variables Volume flow, conductivity, mass flow
Ambient Temperature Range Flange material carbon steel: -10 to +60°C (+14 to +140°F)
Flange material stainless steel: -40 to +60°C (-40 to +140°F)
Degree of Protection Standard: IP66/67, Type 4X enclosure
Power Supply DC 24 V
AC 100 to 230 V
AC 100 to 230 V / DC 24 V (non-hazardous area)
Certifications & Approvals
  • Hazardous Area: ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC; JPN, UK Ex, KC
  • Product Safety: CE, C-tick, EAC marking
  • Functional Safety: IEC 61508, applicable per IEC 61511
  • Metrological: ISO/IEC 17025 calibration, ISO 9001:2015 compliance
  • Marine: LR, DNV, ABS, BV approvals
  • Pressure: PED, CRN
  • Material: 3.1 material certificates
  • Hygienic: ACS, NSF 61, WRAS
Measuring Principle

Electromagnetic - The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity, ensuring accurate and reliable flow measurement in demanding process applications.
