Name: Proline Promag W 500 electromagnetic flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promag W 500
Price: 2,540.00 USD
Availability: InStock

Home > Products > Electromagnetic Flow Meter >

Proline Promag W 500 electromagnetic flowmeter

Proline Promag W 500 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flowmeter

Place of Origin:

Switzerland

Brand Name:

Endress+Hauser

Certification:

Model Number:

Proline Promag W 500

Request A Quote

Product Details

Measured Variables:

Volume Flow, Conductivity, Mass Flow

Max. Process Pressure:

PN 40, Class 300, 20K

Transmitter Housing Material:

AlSi10Mg, Coated; 1.4409 (CF3M) Similar To 316L; Polycarbonat

Hazardous Area Approvals:

ATEX, IECEx, CCSAus, INMETRO, NEPSI, EAC; JPN, UK Ex, KC

Product Safety:

CE, C-tick, EAC Marking

Highlight:

Proline Promag W 500 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flowmeter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Proline Promass S 300 Coriolis flowmeter

Get Best Price

Proline Promass P 500 Coriolis flowmeter

Get Best Price

Proline Promass Q 300 Coriolis flowmeter

Get Best Price

Proline t-mass F 500 thermal mass flowmeter

Get Best Price

Contact Now

Product Description

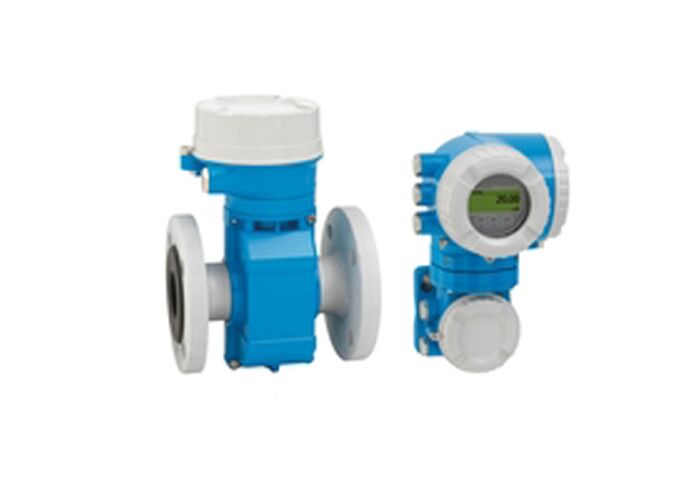

Proline Promag W 500 Electromagnetic Flowmeter

Specialist for demanding water and wastewater applications as remote version with up to 4 I/Os. Reliable measurement at constant accuracy with 0 x DN inlet run and no pressure loss. Dedicated to the measurement of industrial or municipal water and wastewater.

Key Specifications

Measuring Principle	Electromagnetic
Nominal Diameter Range	DN 25 to 3000 (1" to 120")
Measuring Range	0.5 m³/h to 263,000 m³/h (2.5 gal/min to 1,665 Mgal/d)
Max. Measurement Error	Volume flow (standard): ±0.5% o.r. ± 1 mm/s (0.04 in/s) Volume flow (option): ±0.2% o.r. ± 2 mm/s (0.08 in/s), Flat Spec
Max. Process Pressure	PN 40, Class 300, 20K
Measured Variables	Volume flow, conductivity, mass flow

Temperature Ranges

Medium Temperature	Hard rubber liner: 0 to +80°C (+32 to +176°F) Polyurethane liner: -20 to +50°C (-4 to +122°F) PTFE liner: -20 to +90°C (-4 to +194°F)
Ambient Temperature	Carbon steel flange: -10 to +60°C (+14 to +140°F) Stainless steel flange: -40 to +60°C (-40 to +140°F)

Key Features & Benefits

Sensor Features

Flexible engineering with fixed or lap-joint process connections
EN ISO 12944 corrosion protection for underground or underwater installation
Compliant with industry-specific requirements for improved plant availability
International drinking water approvals
Degree of protection IP68 (Type 6P enclosure)

Transmitter Features

Full access to process and diagnostic information with numerous I/Os
Freely configurable I/O functionality reduces complexity
Integrated verification with Heartbeat Technology
Remote version with up to 4 I/Os
Backlit display with touch control and WLAN access
Standard cable between sensor and transmitter

Operational Benefits

Reliable measurement at constant accuracy with 0 x DN inlet run and no pressure loss
Bidirectional measuring principle independent of pressure, density, temperature and viscosity
Designed for hazardous areas and harsh conditions

Technical Specifications

Wetted Materials

Liner materials: Hard rubber, Polyurethane, PTFE
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum

Housing Materials

Sensor housing: AlSi10Mg (coated), Carbon steel (protective varnish)
Transmitter housing: AlSi10Mg (coated), 1.4409 (CF3M), Polycarbonate

Inputs & Outputs

4 outputs: 4-20 mA HART, 4-20 mA, Pulse/frequency/switch, Double pulse, Relay
Inputs: Status input, 4-20 mA input

Digital Communication

HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus RS485/TCP, PROFINET, Ethernet/IP, OPC-UA

Power Supply

DC 24 V, AC 100-230 V, AC 100-230 V / DC 24 V (non-hazardous area)

Approvals & Certifications

ATEX IECEx cCSAus INMETRO NEPSI EAC CE C-tick Functional Safety IEC 61508 ISO/IEC 17025 LR DNV ABS BV CRN ACS KTW-BWGL NSF 61 WRAS BS 6920
