Name: Proline Promag W 300 High Accuracy ±0.5% Electromagnetic Flowmeter with IP68 Protection for Hazardous Areas
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promag W 300
Price: 2,540.00 USD
Availability: InStock

Home > Products > Electromagnetic Flow Meter >

Proline Promag W 300 High Accuracy ±0.5% Electromagnetic Flowmeter with IP68 Protection for Hazardous Areas

Proline Promag W 300 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flow meter

Place of Origin:

Switzerland

Brand Name:

Endress+Hauser

Certification:

Model Number:

Proline Promag W 300

Request A Quote

Product Details

Measured Variables:

Volume Flow, Conductivity, Mass Flow

Max. Process Pressure:

PN 40, Class 300, 20K

Inputs:

Status Input 4-20 MA Input

Product Safety:

CE, C-tick, EAC Marking

Marine Approvals And Certificates:

LR Approval, DNV Approval, ABS Approval, BV Approval

Highlight:

Proline Promag W 300 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flow meter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Proline t-mass F 500 Thermal Mass Flowmeter with DN 15 to DN 100, HART and Modbus RS485, and Patented Drift-Free Sensor

Get Best Price

Proline Promag W 300 High Accuracy ±0.5% Electromagnetic Flowmeter with IP68 Protection for Hazardous Areas

Get Best Price

Proline Promag P 300 Electromagnetic Flowmeter for Corrosion Resistant and High Temperature Process Applications with Compact Transmitter

Get Best Price

Proline Promass A 200 Coriolis Flowmeter with 0 to 450 kg/h Measuring Range for Industrial Use

Get Best Price

Contact Now

Product Description

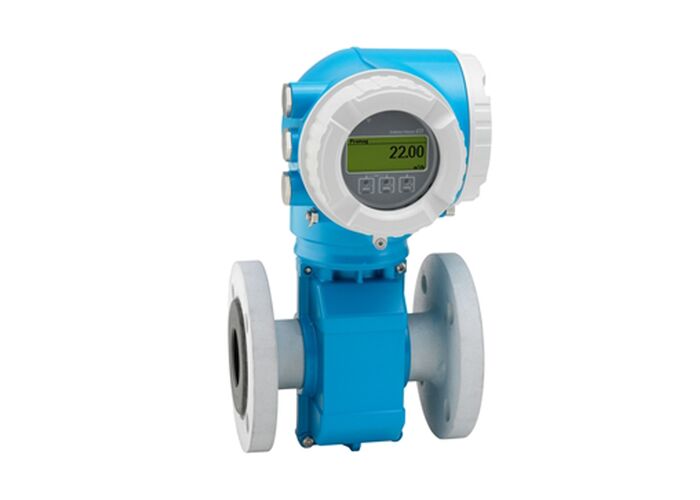

Proline Promag W 300 Electromagnetic Flowmeter

Product Overview

The premium device for water and wastewater measurement, designed for reliable use in hazardous areas and under harsh conditions. Features a compact transmitter with high flexibility in operation and system integration.

Key Features: Access from one side, remote display, improved connectivity options, and Heartbeat Technology for measurement reliability and compliant verification.

Technical Specifications

Maximum Measurement Error

Volume flow (standard): ±0.5% o.r. ±1 mm/s (0.04 in/s)
Volume flow (option): ±0.2% o.r. ±2 mm/s (0.08 in/s), Flat Spec

Measuring Range

0.5 m³/h to 263,000 m³/h (2.5 gal/min to 1,665 Mgal/d)

Medium Temperature Range

Hard rubber: 0 to +80°C (+32 to +176°F)
Polyurethane: -20 to +50°C (-4 to +122°F)
PTFE: -20 to +90°C (-4 to +194°F)

Maximum Process Pressure

PN 40, Class 300, 20K

Nominal Diameter Range

DN 25 to 3000 (1" to 120")

Ambient Temperature Range

Carbon steel: -10 to +60°C (+14 to +140°F)
Stainless steel: -40 to +60°C (-40 to +140°F)

Key Benefits

Reliable measurement at constant accuracy with 0 x DN inlet run and no pressure loss
Flexible engineering - sensor with fixed or lap-joint process connections
Application fitness - EN ISO 12944 corrosion protection for underground or underwater installation
Improved plant availability - sensor compliant with industry-specific requirements
Full access to process and diagnostic information - numerous, freely combinable I/Os and Ethernet
Reduced complexity and variety - freely configurable I/O functionality
Integrated verification - Heartbeat Technology

Device Properties

Measuring Principle

Electromagnetic

Measured Variables

Volume flow, conductivity, mass flow

Wetted Materials

Liner: Polyurethane; Hard rubber, PTFE
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum

Degree of Protection

IP68 (Type 6P enclosure)

Approvals and Certifications

ATEX

IECEx

cCSAus

EAC

CRN

PED

ACS

NSF 61

WRAS BS 6920

LR Approval

DNV Approval
