Name: Promass S 500 Coriolis Flowmeter with Hygienic Design, Self-Drainable Single-Tube System, and Multivariable Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promass S 500
Price: 2,540.00 USD
Availability: InStock

Home > Products > Electromagnetic Flow Meter >

Promass S 500 Coriolis Flowmeter with Hygienic Design, Self-Drainable Single-Tube System, and Multivariable Measurement

Proline Promass S 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Place of Origin:

Switzerland

Brand Name:

Endress+Hauser

Certification:

Model Number:

Proline Promass S 500

Request A Quote

Promass S 500 Coriolis Flowmeter with Hygienic Design, Self-Drainable Single-Tube System, and Multivariable Measurement

Product Details

Measuring Range:

0 To 70 000 Kg/h (0 To 2570 Lb/min)

Max. Process Pressure:

PN 40, Class 150, 20K

Medium Temperature Range:

–50 To +150 °C (–58 To +302 °F)

Transmitter Housing Material:

AlSi10Mg, Coated; Polycarbonat

Hazardous Area Approvals:

ATEX, IECEx, CCSAus, NEPSI, INMETRO, EAC, KC

Product Safety:

CE, C-tick, EAC Marking

Highlight:

Proline Promass S 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Proline t-mass F 500 Thermal Mass Flowmeter with DN 15 to DN 100, HART and Modbus RS485, and Patented Drift-Free Sensor

Get Best Price

Proline Promag W 300 High Accuracy ±0.5% Electromagnetic Flowmeter with IP68 Protection for Hazardous Areas

Get Best Price

Proline Promag P 300 Electromagnetic Flowmeter for Corrosion Resistant and High Temperature Process Applications with Compact Transmitter

Get Best Price

Proline Promass A 200 Coriolis Flowmeter with 0 to 450 kg/h Measuring Range for Industrial Use

Get Best Price

Contact Now

Product Description

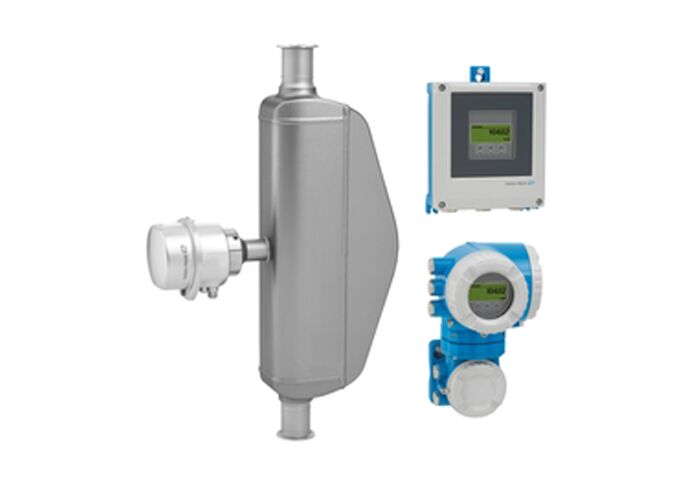

Proline Promass S 500 Coriolis Flowmeter

Product Overview

The Promass S 500 is at the forefront in hygienic design, dedicated to applications in the food and beverage industry requiring optimal cleanability. Featuring a self-drainable single-tube system that ensures careful treatment of fluids, this innovative remote transmitter maximizes installation flexibility and operational safety in demanding environments.

Key Features

Easy-to-clean device with self-drainable single-tube system
Remote version with up to 4 I/Os
Multivariable measurement (flow, density, temperature)
Heartbeat Technology for integrated verification
3-A and EHEDG conform for hygienic applications

Technical Specifications

Measurement Accuracy

Mass flow (liquid): ±0.10%
Volume flow (liquid): ±0.10%
Density (liquid): ±0.0005 g/cm³

Measuring Range

0 to 70,000 kg/h (0 to 2,570 lb/min)

Temperature Range

Medium: -50 to +150 °C (-58 to +302 °F)
Ambient: -40 to +60 °C (-40 to +140 °F)

Process Pressure

PN 40, Class 150, 20K

Nominal Diameter

DN 8 to 50 (⅜ to 2")

Measured Variables

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

Materials & Construction

Component	Material
Measuring Tube	1.4435 (316L)
Connection	1.4435 (316L); 1.4404 (316/316L)
Sensor Housing	1.4301 (304), corrosion resistant
Transmitter Housing	AlSi10Mg, coated; Polycarbonate

Electrical & Communication

Outputs

4-20 mA HART, 4-20 mA WirelessHART, Pulse/Frequency/Switch output, Relay output

Inputs

Status input, 4-20 mA input

Digital Communication

HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP, PROFINET, Ethernet/IP, OPC-UA

Power Supply

DC 24 V, AC 100-230 V, AC 100-230 V / DC 24 V (non-hazardous area)

Certifications & Approvals

Hazardous Area

ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, KC

Product Safety

CE, C-tick, EAC marking

Hygienic

3-A, EHEDG, cGMP

Pressure

PED, CRN
