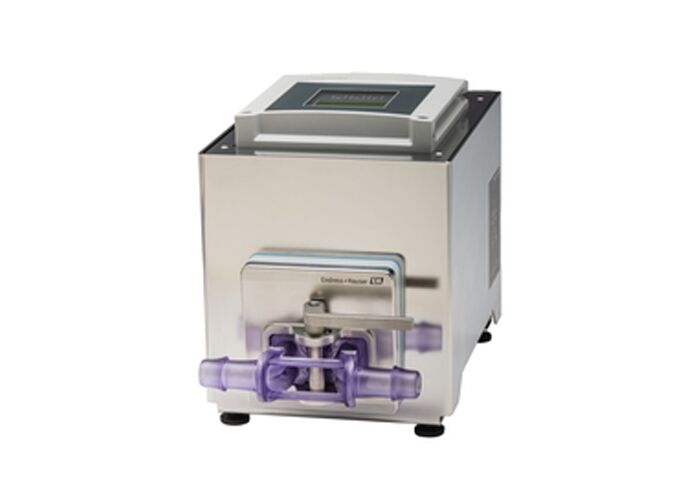

Name: Proline Promass U 500 Single-use Coriolis Flowmeter with Stainless Steel 1.4435 and ±0.5% Accuracy
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promass U 500
Price: 2,540.00 USD
Availability: InStock

Home > Products > Electromagnetic Flow Meter >

Proline Promass U 500 Single-use Coriolis Flowmeter with Stainless Steel 1.4435 and ±0.5% Accuracy

Proline Promass U 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Place of Origin:

Switzerland

Brand Name:

Endress+Hauser

Certification:

Model Number:

Proline Promass U 500

Request A Quote

Product Details

Wetted Materials:

Measuring Tubes: Stainless Steel 1.4435, 316L

Measured Variables:

Mass, Density, Temperature

Max. Measurement Error:

Mass Flow (liquid): ±0.5%

Measuring Range:

0 To 75 Kg/h (0 To 165,3 Lb/min)

Max. Process Pressure:

6 Bar (87 Psi)

Highlight:

Proline Promass U 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Proline t-mass F 500 Thermal Mass Flowmeter with DN 15 to DN 100, HART and Modbus RS485, and Patented Drift-Free Sensor

Get Best Price

Proline Promag W 300 High Accuracy ±0.5% Electromagnetic Flowmeter with IP68 Protection for Hazardous Areas

Get Best Price

Proline Promag P 300 Electromagnetic Flowmeter for Corrosion Resistant and High Temperature Process Applications with Compact Transmitter

Get Best Price

Proline Promass A 200 Coriolis Flowmeter with 0 to 450 kg/h Measuring Range for Industrial Use

Get Best Price

Contact Now

Product Description

Proline Promass U 500 Coriolis Flowmeter

Single-use specialist for Biotech applications, with a remote version with up to 4 I/Os. Modern fieldbus communication protocols (2-wire). Highest measurement performance for liquids in single-use processes for the Life Sciences Industry.

Field of Application

Promass U 500 is the ideal single-use flowmeter for biopharmaceutical applications in the life sciences industry. It represents the response to the shift from multi-use to single-use devices and from batch to continuous manufacturing. Offering multivariable measurement, Promass U 500 provides enhanced reliability, high accuracy, and industry compliance according to cGMP. The flowmeter is especially suited for up- and downstream applications in the monoclonal antibodies (mAb) process.

The sensor comprises a disposable part, available in four line sizes, and a permanently installed base unit, fitting all line sizes. Heartbeat Technology automatically recognizes the flow range and verifies the validity of the factory calibration after installation. This simplifies commissioning and eliminates the need for calibration in the field. Equipped with built-in web server, WLAN, and up to 4 I/Os, the transmitter provides easy operation and additional process and device information.

Key Benefits

Best-in-class measuring accuracy - Coriolis technology with multivariable measurement
Highest turndown ratio - one sensor fits all line sizes of disposable
cGMP compliance - designed according to the latest standards and guidelines, equipped with required attributes and documentation
Simple, fast commissioning - one-hand mounting and automated calibration data transfer
Self drainability or air bubble escape - thanks to different mounting angles
No field calibration needed - automated verification with integrated Heartbeat Technology
Digital integration - modern single pair Ethernet based communication protocols

Technical Specifications

Measuring Principle	Coriolis
Nominal Diameter Range	¹⁄₈" to 1"
Wetted Materials	Measuring tubes: Stainless steel 1.4435, 316L Hose connection nipple: Makrolon Rx 1805 polycarbonate
Measured Variables	Mass, density, temperature
Max. Measurement Error	Mass flow (liquid): ±0.5%
Measuring Range	0 to 75 kg/h (0 to 165.3 lb/min)
Max. Process Pressure	6 bar (87 psi)
Medium Temperature Range	3 to 60°C (37.4 to 140°F)
Ambient Temperature Range	5 to 40°C (41 to 104°F)
Transmitter Housing Material	Aluminum, AlSi10Mg, coated
Degree of Protection	Transmitter: IP66/67, Type 4X enclosure Sensor: IP54

Sensor Features

One sensor fits all DN - single variant with 4 disposable line sizes provides highest turndown ratio
One-hand mounting of disposable - easy commissioning due to intuitive clamping mechanism
Mounting angle - self drainability or air bubble escape
Disposable made of 1.4435 (316L) and polycarbonate
Fully traceable cGMP compliance
One sensor fits four line sizes: ¹⁄₈ to 1"

Transmitter Features

Full access to process and diagnostic information - numerous, freely combinable I/Os and Ethernet
Reduced complexity and variety - freely configurable I/O functionality
Integrated verification - Heartbeat Technology
Remote version with up to 4 I/Os
Backlit display with touch control and WLAN access
Standard cable between sensor and transmitter

Inputs & Outputs

Outputs: 4 outputs including 4-20 mA HART (active/passive), 4-20 mA WirelessHART, 4-20 mA (active/passive), Pulse/frequency/switch output (active/passive), Double pulse output (active/passive), Relay output

Inputs: Status input, 4-20 mA input

Digital Communication: Modbus RS485, PROFINET over Ethernet-APL

Power Supply: AC 100 to 230 V / DC 24 V (non-hazardous area)

Certifications & Approvals

Product Safety: CE, C-tick, EAC marking

Functional Safety: Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

Hygienic Approvals: cGMP compliance, ASME BPE, BPOG, FDA
