Name: Proline Prowirl R 200 vortex flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Prowirl R 200
Price: 2,540.00 USD
Availability: InStock

Home > Products > Electromagnetic Flow Meter >

Proline Prowirl R 200 vortex flowmeter

Proline Prowirl R 200 flowmeter

vortex flowmeter with warranty

electromagnetic vortex flow meter

Place of Origin:

Switzerland

Brand Name:

Endress+Hauser

Certification:

Model Number:

Proline Prowirl R 200

Request A Quote

Product Details

Outputs:

4‐20 MA HART (passive)

Inputs:

4‐20 MA (passive)

Digital Communication:

HART, PROFIBUS PA, FOUNDATION Fieldbus, PROFINET Over Ethernet-APL, Modbus TCP Over Ethernet-APL

Hazardous Area Approvals:

ATEX, IECEx, CCSAus, JPN, EAC, UK Ex

Product Safety:

CE, C-tick, EAC

Functional Safety:

Functional Safety According To IEC 61508, Applicable In Safety-relevant Applications In Accordance With IEC 61511

Highlight:

Proline Prowirl R 200 flowmeter

vortex flowmeter with warranty

electromagnetic vortex flow meter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Proline Promass S 300 Coriolis flowmeter

Get Best Price

Proline Promass P 500 Coriolis flowmeter

Get Best Price

Proline Promass Q 300 Coriolis flowmeter

Get Best Price

Proline t-mass F 500 thermal mass flowmeter

Get Best Price

Contact Now

Product Description

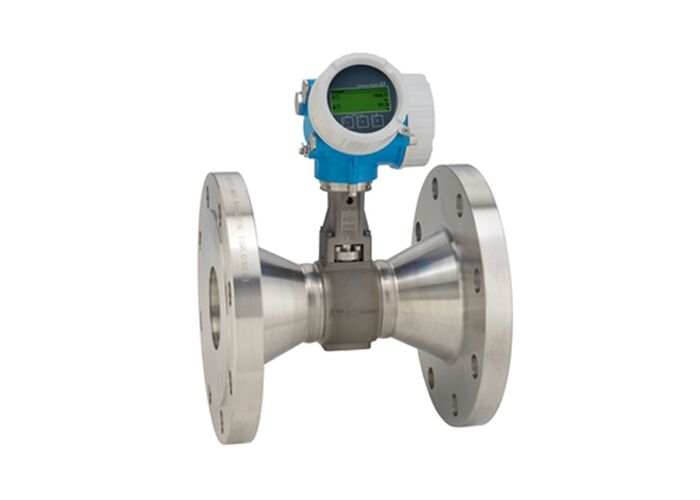

Proline Prowirl R 200 Vortex Flowmeter

Advanced vortex flowmeter designed for low flow applications with best-in-class accuracy, featuring integrated temperature and pressure measurement for comprehensive energy management solutions.

Key Specifications

Measurement Accuracy

Volume flow (liquid): ±0.75%

Volume flow (steam, gas): ±1.00%

Mass flow (saturated steam): ±1.7% (temperature compensated); ±1.5% (temperature/pressure compensated)

Mass flow (superheated steam, gas): ±1.5% (temperature/pressure compensated); ±1.7% (temperature compensated + external pressure compensation)

Mass flow (liquid): ±0.85%

Measuring Range

Liquid: 0.2 to 540 m³/h (0.15 to 320 ft³/min)

Steam, gas: 1.5 to 7260 m³/h (0.9 to 4270 ft³/min)

Technical Specifications

Parameter	Specification
Medium Temperature Range	Standard: -40 to +260 °C (-40 to +500 °F) High/low temperature (option): -200 to +400 °C (-328 to +752 °F) High/low temperature (on request): -200 to +450 °C (-328 to +842 °F)
Max. Process Pressure	PN 40, Class 300, 20K
Nominal Diameter Range	DN 25 to 250 (1 to 10")
Wetted Materials	Measuring tube: 1.4408 (CF3M) DSC sensor: 1.4404/F316/F316L Process connection: 1.4404/F316/F316L

Field of Application

Designed for low flows and energy management applications. PremiumCal calibration ensures excellent measuring accuracy for maximum plant availability. Genuine loop-powered technology enables cost-effective integration into existing infrastructures with highest operational safety in hazardous areas.

Key Benefits

Easy energy management with integrated temperature and pressure measurement
Cost and time savings - no pipework modifications needed for line size reduction
Same accuracy down to Re 10,000 - most linear Vortex meter body
Long-term stability with robust drift-free capacitive sensor
Convenient device wiring with separate connection compartment
Safe operation - no need to open the device
Integrated verification with Heartbeat Technology

Device Features

Integrated diameter reduction by 1 or 2 line sizes
Nominal diameter (mating pipe) up to DN 250 (10")
Flexible positioning of pressure cell
Display module with data transfer function
Robust dual-compartment housing
Worldwide approvals (SIL, Hazardous area)

Additional Specifications

Category	Details
Measured Variables	Volume flow, mass flow, corrected volume flow, energy flow, heat flow difference, temperature
Ambient Temperature Range	Compact version: -40 to +80 °C (-40 to +176 °F) Remote version: -40 to +85 °C (-40 to +185 °F)
Degree of Protection	IP66/67, type 4X enclosure
Digital Communication	HART, PROFIBUS PA, FOUNDATION Fieldbus, PROFINET over Ethernet-APL, Modbus TCP over Ethernet-APL
Power Supply	DC 9 to 35 V depending on configuration
Approvals & Certificates	ATEX, IECEx, cCSAus, CE, C-tick, EAC, functional safety according to IEC 61508
