SITRANS Probe LU240

SITRANS ultrasonic sensor probe

LU240 transducer with warranty

industrial ultrasonic transducer sensor

Brand Name:

SIEMENS

Model Number:

LU240

Request A Quote

Product Details

Measuring Principle:

Ultrasonic Level Measurement

Typical Application:

Level Measurement In Storage Vessels And Simple Process Vessels

Frequency:

54 KHz

Resolution:

≤ 3 Mm (0.12 Inch)

Highlight:

SITRANS ultrasonic sensor probe

LU240 transducer with warranty

industrial ultrasonic transducer sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

Supply Ability

1000 Piece/Pieces per Week negotiable

UC12 Ultrasonic distance sensors

Get Best Price

UC30 Ultrasonic distance sensors

Get Best Price

UD18 Ultrasonic distance sensors

Get Best Price

UM12 Ultrasonic distance sensors

Get Best Price

Contact Now

Product Description

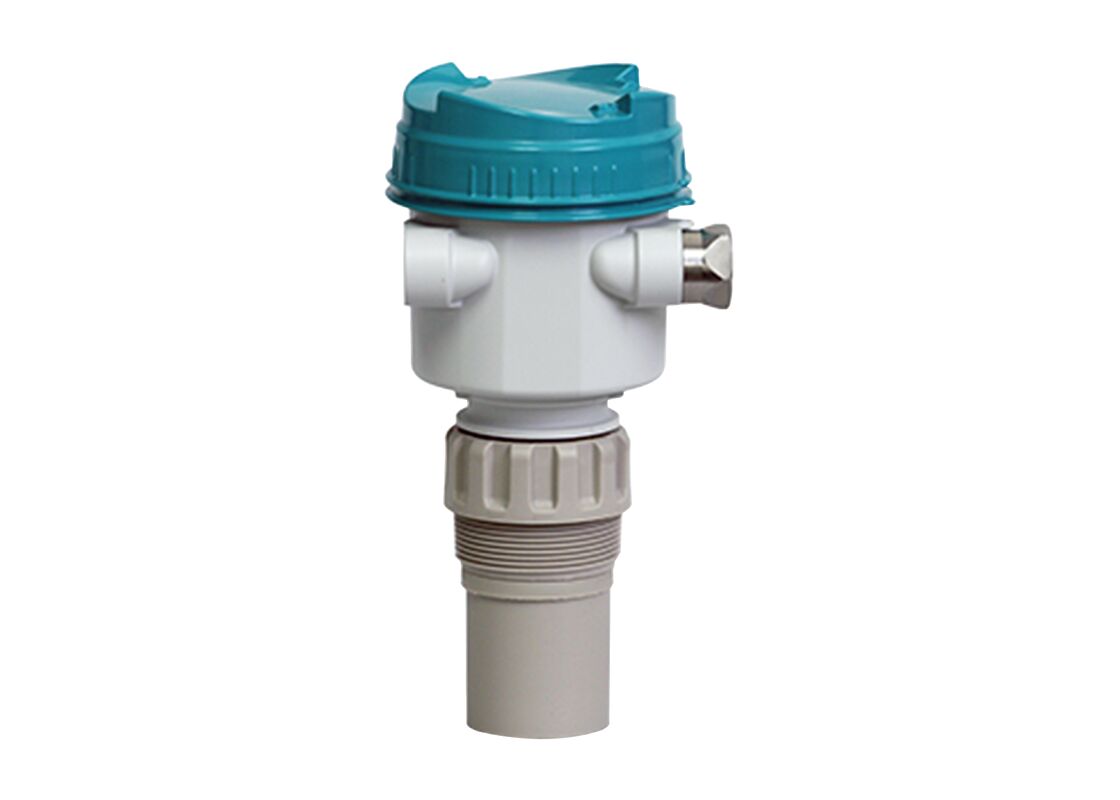

SITRANS Probe LU240 Ultrasonic Level Transmitter

SITRANS Probe LU240 ultrasonic level transmitter is ideal for level, volume, and volume flow measurements. It works with liquids, slurries, and bulk materials up to 12 m (40 ft).

Product Overview

Key Features

Continuous level measurement up to 12 m (40 ft) range
Easy installation and simple startup with quick commissioning wizards
Programming using 4-button HMI or SIMATIC PDM
Communication using HART protocol
ETFE or PVDF transducers for chemical compatibility
Process Intelligence signal processing
IQ Guard for health monitoring with 250 point diagnostic log
Auto False Echo Suppression for fixed obstruction avoidance
Low power and current startup
Optional Bluetooth configuration and monitoring via SITRANS mobile IQ
Rotating enclosure for ease of installation

Applications

SITRANS Probe LU240 is ideal for level monitoring in the water and wastewater industry, chemical storage vessels, and small bulk hoppers. The range options of 3, 6, or 12 m (10, 20, or 40 ft) provide flexibility for various industrial applications.

Key Applications

Chemical storage vessels, filter beds, liquid storage vessels

Technical Specifications

Measuring Principle	Ultrasonic level measurement
Typical Application	Level measurement in storage vessels and simple process vessels
Measuring Range	3 m model: 0.2 ... 3 m (8 inch ... 10 ft) 6 m model: 0.2 ... 6 m (8 inch ... 20 ft) 12 m model: 0.2 ... 12 m (8 inch ... 40 ft)
Frequency	54 kHz
Output	4 ... 20 mA with HART version 7
Accuracy	3 m version: 10 mm (0.39 inch) 6 m & 12 m versions: ± the greater of 0.15% of range or 6 mm (0.25 inch) ± 2 mm (0.08 inch) on ranges 4 m (13 ft) or less
Update Time	≤ 4 s
Ambient Temperature	Operating: -40 ... +80 °C (-40 ... +176 °F)
Degree of Protection	Type 4X, Type 6, IP66, IP68
Power Supply	10.5 ... 30 V DC

Configuration Options

Certifications and Approvals

FM, CCSAUS, CE, UKCA, RCM, EAC, KC, VLAREM II, RoHS, China RoHS, WEEE, REACH, FCC, ATEX, IECEx, and multiple international hazardous area certifications.

Compatible Accessories

The SITRANS Probe LU240 system supports various accessories including overvoltage protection, mounting brackets, remote displays, and Bluetooth configuration adapters.
