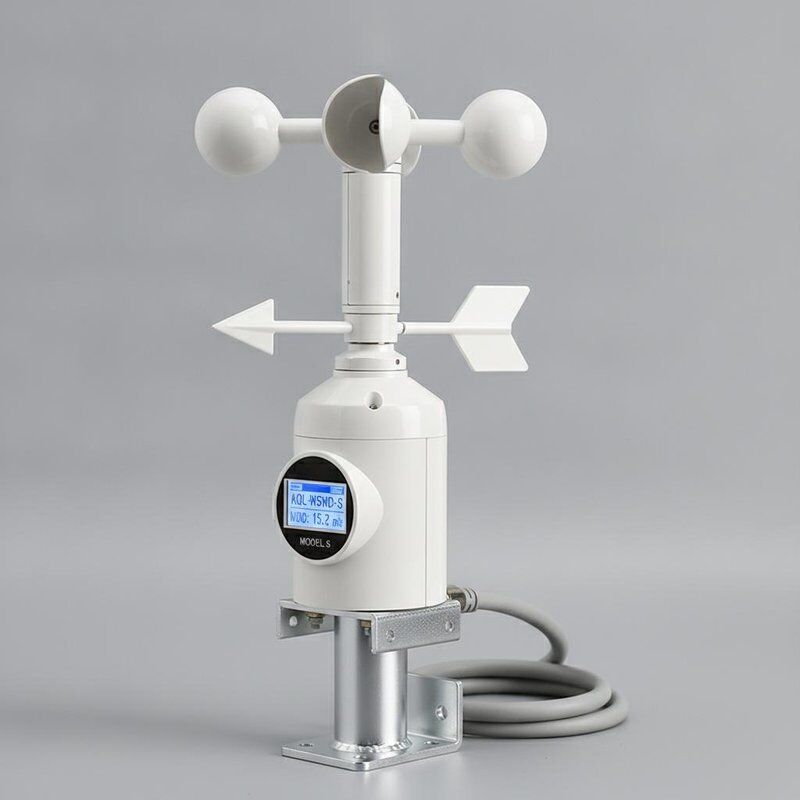

KQL-WSWD-S Integrated Wind Speed and Direction Sensor (Model S)

Product Overview

The KQL-WSWD-S Integrated Wind Speed and Direction Sensor is a highly integrated product combining wind speed and direction measurement. It is assembled from precision-machined aluminum alloy components, offering high strength and convenient installation.

The wind speed measurement section uses a traditional three-cup anemometer structure with imported ABS material cups for high strength and low starting threshold (≤0.5 m/s). The precision signal processing unit can output various signals according to user requirements, with wide range, good linearity, convenient observation, and stable reliability.

The wind direction measurement section uses a precision angle sensor inside with a low-inertia wind vane responding to wind direction changes. It provides high accuracy (±3°), no dead angles, 0-359° full range.

Technical Specifications

Accuracy (Wind Speed): ±(0.3+0.03V) m/s
Accuracy (Wind Direction): ±3°
Starting Wind Speed: ≤0.5 m/s
Max Power Consumption: 0.9W
Operating Temperature: -35°C to 60°C
Protection Rating: IP64
Net Weight: 680g

Key Features

• Integrated wind speed and direction measurement in one device
• Aluminum alloy body, high strength and corrosion resistance
• Multiple output options: Pulse, 4-20mA, RS485/RS232, voltage
• Supports ModBus-RTU and ASCII protocols
• IP64 protection rating for harsh outdoor environments
• Low power consumption: max 0.9W
• Measurement range: Wind speed 0-70 m/s, Wind direction 0-359°

Applications

Meteorology, marine monitoring, environmental monitoring, airports, ports, laboratories, industry, agriculture, transportation.
